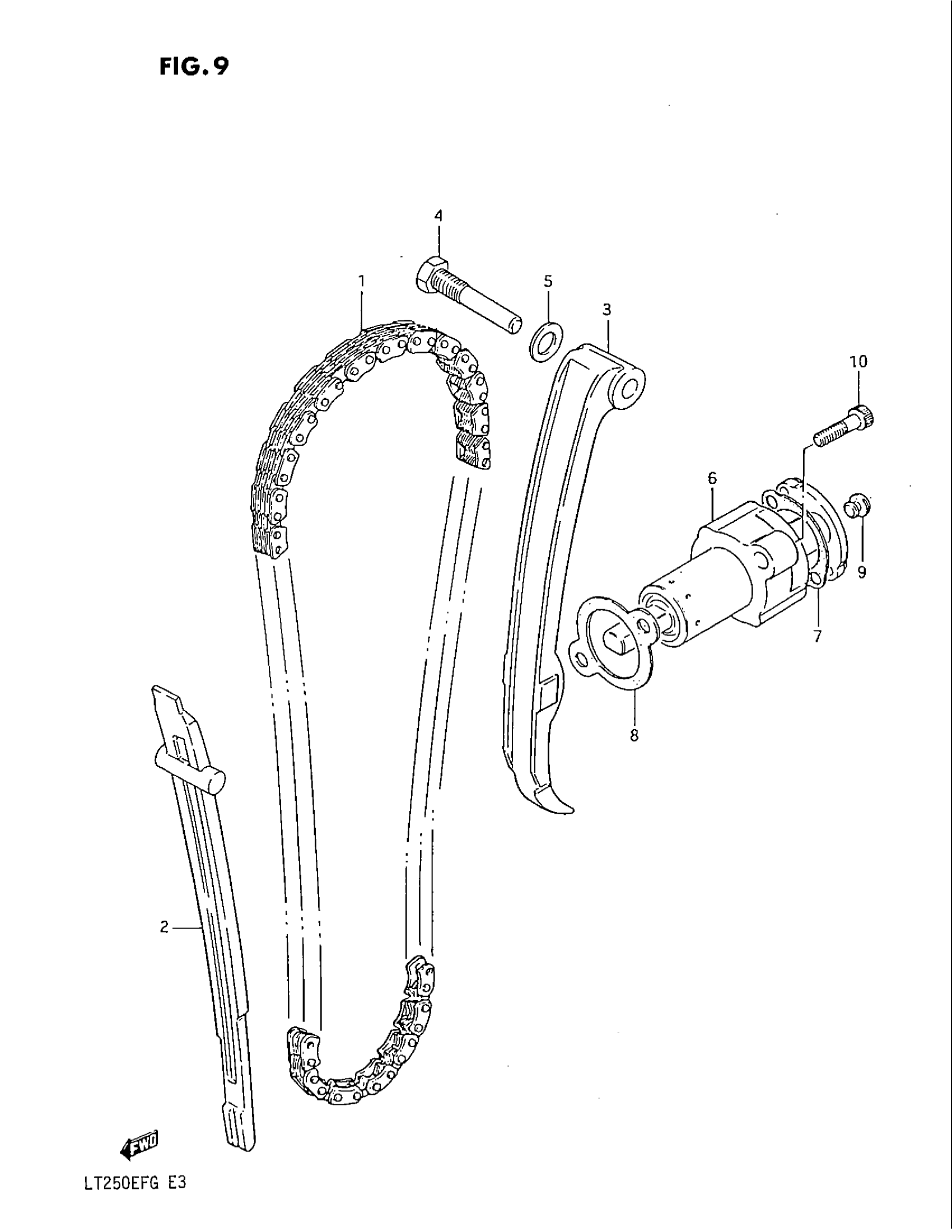

Suzuki LT250EF (1986) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAM SHAFT DRIVE | 112LE This part replaces 12760-38200.

12760-13F00

$146.87

2

GUIDE,CAM CHAIN This part replaces 12771-38200.

12771-38201

$44.68

3

TENSIONER,CAM C This part replaces 12811-38200.

12811-38201

$41.50

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$4.92

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 This part replaces 12830-38200.

12830-38201

$159.87

7

GASKET This part replaces 12838-38200.

12838-38200-H17

$3.58

8

.GASKET,TENSIONER ADJUSTER This part replaces 12837-38200.

12837-24A10

$2.97

9

PLUG

12839-38200

$2.35

10

BOLT This part replaces 07110-06258.

07130-06257

$2.90
