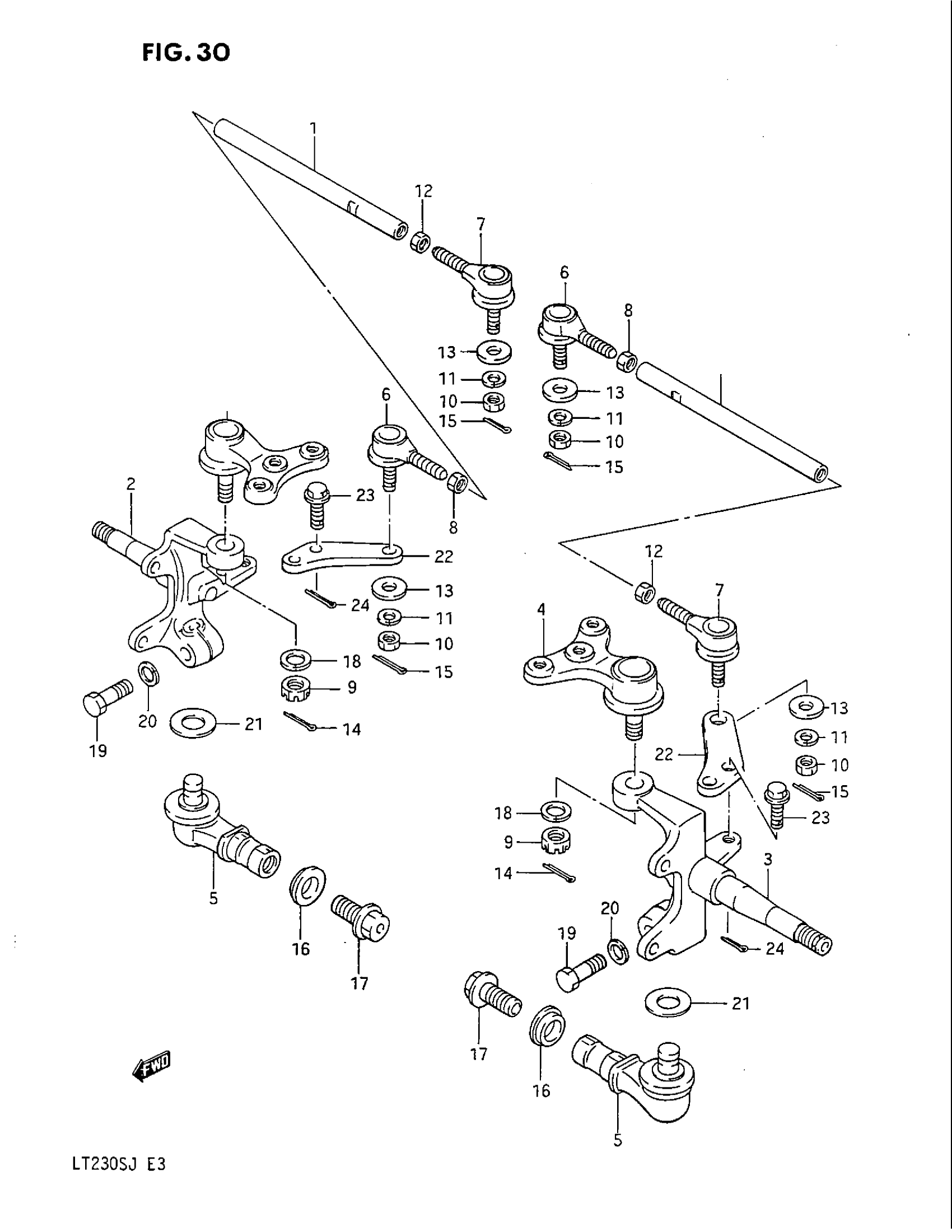

Find the part on the TIE ROD diagram for your 1988 Suzuki LT230S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki LT230S TIE ROD Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE ROD, STEERING

51281-22A00

2

$28.58

In stock

2

KNUCKLE, STEERING RH

51231-22A00

1
Out of stock

3

KNUCKLE, STEERING LH

51241-22A00

1
Out of stock

4

END, KNUCKLE STEERING UPPER | MODEL F/G/H This part replaces 51210-22A00.

51210-22A01

2
Out of stock

4

END, KNUCKLE STEERING UPPER | MODEL J

51210-22A01

2
Out of stock

6

ROD, END RH | MODEL F/G/H This part replaces 51260-19A00.

51260-38F10

2
Out of stock

6

ROD, END RH | MODEL J This part replaces 51260-41B01.

51260-38F10

2
Out of stock

8

NUT This part replaces 08310-22105.

09140-10043

2
Out of stock

9

NUT This part replaces 08314-41125.

08314-4012A

2
Out of stock

10

NUT This part replaces 09159-10036.

09159-10027

4
Out of stock

11

4

$2.02

In stock

12

NUT, TIE ROD LH

09140-10027

2
Out of stock

13

WASHER This part replaces 09160-10068.

09160-10128-XC0

4
Out of stock

14

PIN This part replaces 04111-30306.

04111-3030A

2
Out of stock

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock

16

2

$9.97

In stock

18

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

2
Out of stock

19

BOLT, KNUCKLE LOWER

09100-10225

2

$3.98

In stock

20

2

$2.02

In stock

21

2

$2.92

In stock

22

ARM, KNUCKLE STEERING

51232-22A00

2
Out of stock

23

NO DESCRIPTION AVAILABLE This part replaces 09103-08168.

09103-08503-XC0

4
Out of stock

24

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock
