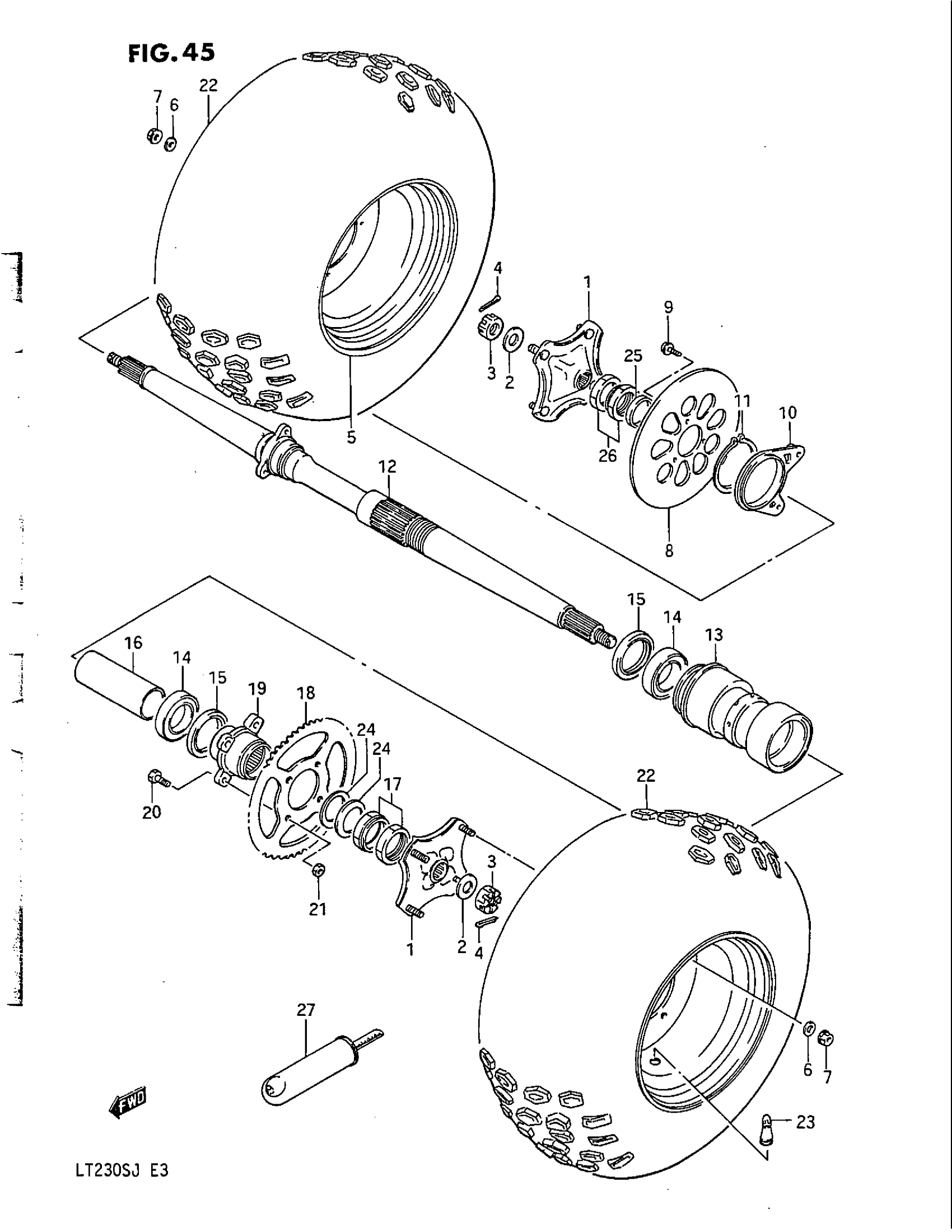

Suzuki LT230S (1988) REAR WHEEL (MODEL F/G) Diagram

#

Description
Price

1

HUB, REAR

64110-24511

Unavailable

2

WASHER

09164-18004

$3.49

3

NUT, HUB This part replaces 09141-18004.

09141-18008

$7.93

4

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.41

5

RIM, REAR WHEEL

65310-22A01

Unavailable

6

WASHER, KNUCKLE END This part replaces 08322-21106.

08322-0110A

$1.89

7

NUT This part replaces 08316-26106.

08316-2010B

$4.38

8

DISC, REAR BRAKE | MODEL F This part replaces 69211-19A00.

69211-19A01

Unavailable

8

DISC, REAR BRAKE | MODEL G

69211-19A01

Unavailable

9

BOLT

09103-08147

$4.03

10

BRACKET, CALIPER

69720-22A10

Unavailable

11

CIRCLIP

69729-19A00

Unavailable

12

AXLE, REAR | TO 64710-22A01WITH 69211-22A0009106-08076 This part replaces 64710-22A00.

64710-22A01

Unavailable

13

HOUSING

64720-19A00

Unavailable

14

BEARING

08123-60087

$40.98

15

DUST SEAL

09283-50006

$20.33

16

SPACER

64731-19A00

Unavailable

17

NUT

64870-19A00

$68.77

18

SPROCKET, REAR (NT:41)

64511-22A00

Unavailable

19

FLANGE

64611-22A00

Unavailable

20

BOLT

09103-10129

Unavailable

21

NUT

08319-31107

$2.80

22

TIRE, REAR (AT22X11-9) | DUNLOP This part replaces 65100-22A00.

65100-35B51

Unavailable

23

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.11

24

WASHER

09164-38001

$5.00

25

SPACER

64214-19A00

$14.78

26

NUT

64870-19A00

$68.77

27

GAUGE ASSY,AIR PRESSUR | MODEL G This part replaces 96200-18A00.

96200-18A02

$66.48
