1988 Suzuki LT230S Steering Shaft Diagram

← All diagrams

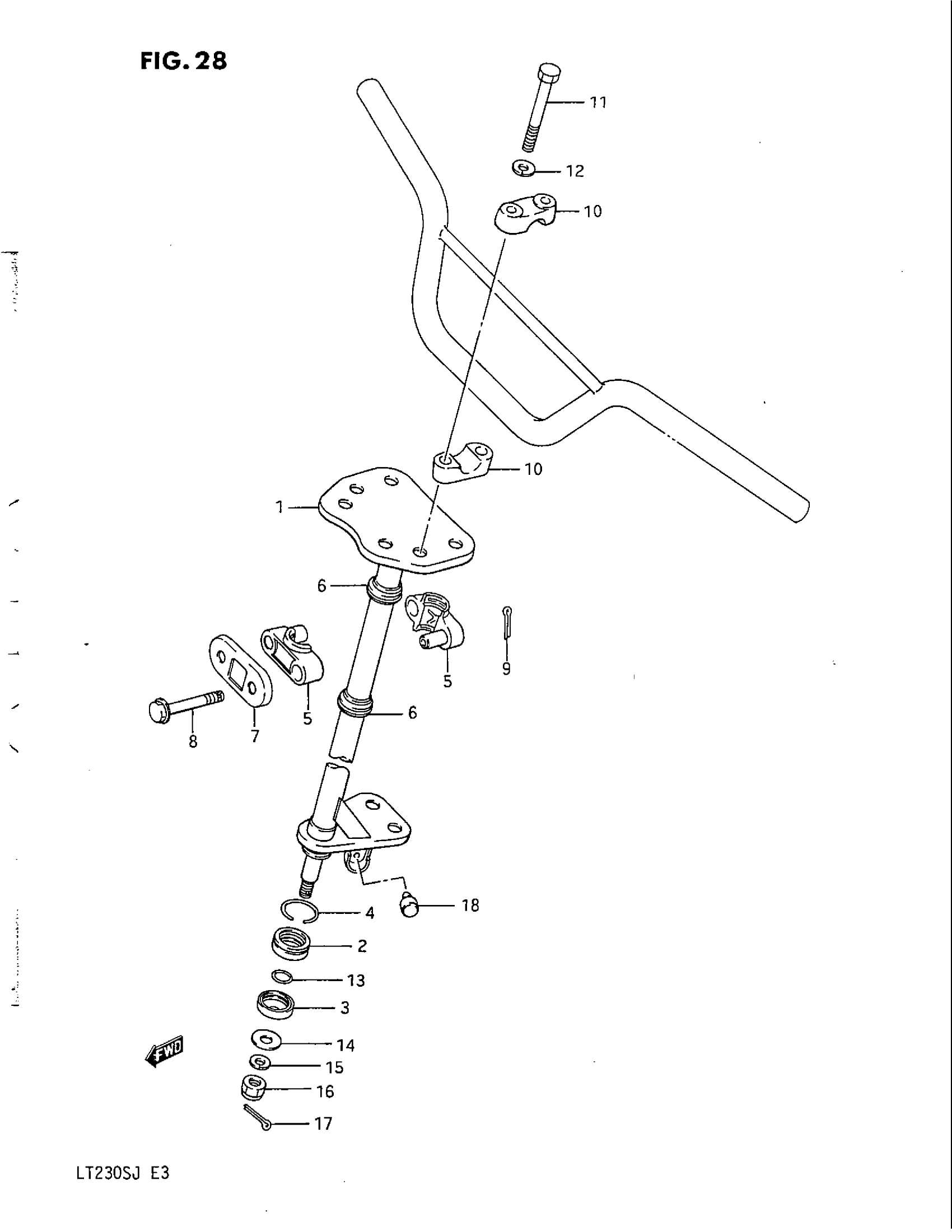

Find the part on the Steering Shaft diagram for your 1988 Suzuki LT230S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki LT230S Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, STEERING

51650-22A00

1
Out of stock

2

SEAL,DUST This part replaces 51662-19A01.

51662-05G01

1
Out of stock

3

SEAL,DUST This part replaces 51663-24500.

51663-05G01

1
Out of stock

4

CLIP, DUST SEAL

09380-35001

1
Out of stock

5

HOLDER,STEERING SHAFT

51670-24500

2
Out of stock

6

DUST SEAL, STEERING

51678-24500

2
Out of stock

7

REINFORCEMENT

51681-24500

1
Out of stock

8

BOLT

09103-08150

2
Out of stock

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

10

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

4
Out of stock

11

BOLT This part replaces 01107-08555.

01500-0855B

4
Out of stock

12

4

$1.99

In stock

13

O RING

09280-17003

1
Out of stock

14

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

1
Out of stock

15

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

1
Out of stock

16

NUT This part replaces 08319-21125.

08319-2112B

1
Out of stock

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

18

CUSHION

09321-08020

2
Out of stock
