1988 Suzuki LT230S Cylinder Head Diagram

← All diagrams

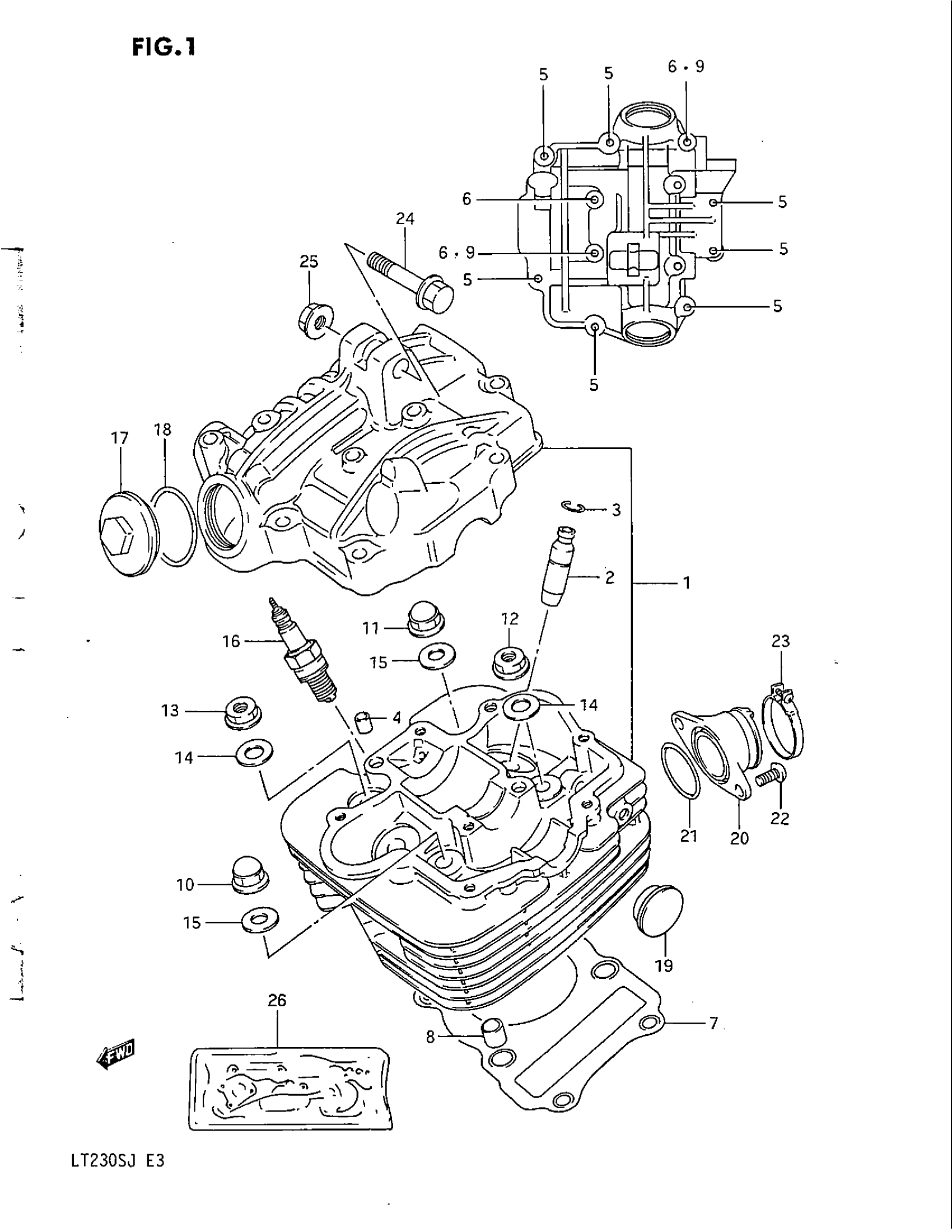

Find the part on the Cylinder Head diagram for your 1988 Suzuki LT230S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki LT230S Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-22A01.

11100-22A02

1
Out of stock

2

GUIDE, VALVE (0S:0.3)

11115-05270

2

$32.91

In stock

3

.RING (10X85)

09381-10004

2
Out of stock

4

PIN

09206-08001

2
Out of stock

5

BOLT This part replaces 01517-06354.

01550-0635A

7
Out of stock

6

3

$3.02

In stock

7

GASKET, CYLINDER HEAD

11141-18A00

1

$14.17

In stock

8

PIN

04211-11169

2

$1.90

In stock

9

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

2
Out of stock

10

1

$4.55

In stock

11

1

$4.55

In stock

12

NUT (CHROME) This part replaces 08316-16088.

08316-10087

1
Out of stock

13

1

$2.85

In stock

14

WASHER

09160-08039

2
Out of stock

15

GASKET This part replaces 09168-08012.

09168-08013

2
Out of stock

16

1

$3.17

In stock

17

CAP, INSPECTION

11175-05260

2
Out of stock

18

.O RING (D:3,ID:29.5)

09280-30001

2

$1.77

In stock

19

PLUG, HEAD

09241-22002

1

$5.07

In stock

20

PIPE, INTAKE

13110-22A01

1
Out of stock

21

O RING

09280-34004

1

$4.55

In stock

22

2

$1.55

In stock

23

CLAMP

09402-46208

1

$4.50

In stock

24

1

$4.70

In stock

25

1

$2.31

In stock

26

GASKET SET | OPT This part replaces 11400-22890.

11400-22895

1
Out of stock
