1988 Suzuki LT230S Crankshaft Diagram

← All diagrams

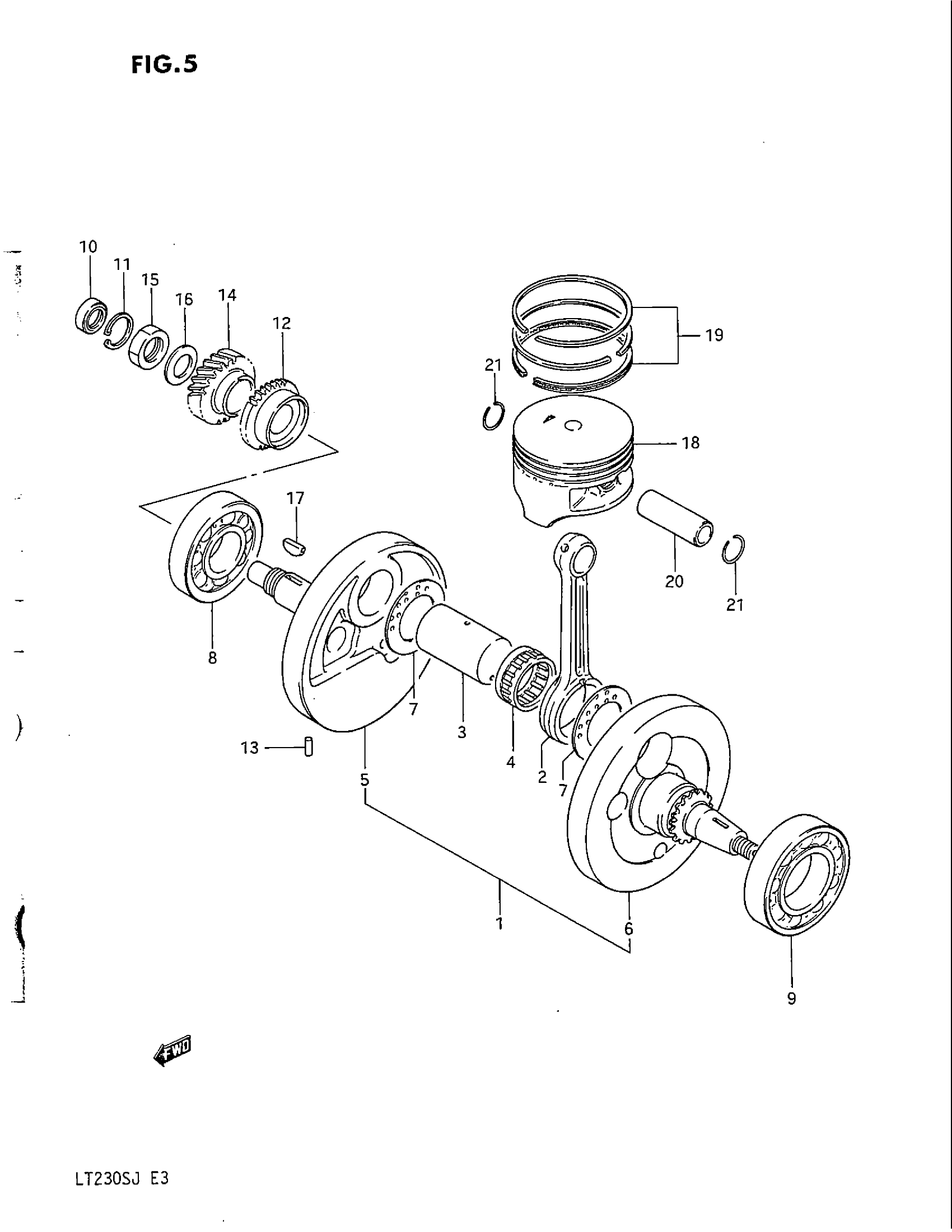

Find the part on the Crankshaft diagram for your 1988 Suzuki LT230S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki LT230S Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | ~E.NO.126974 This part replaces 12200-22A03.

12200-22A11

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E.NO.126975~145023 This part replaces 12200-22A04.

12200-22A11

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E.NO.145024~; Includes Item(s) 2 - 7 This part replaces 12200-22A05.

12200-22A11

1
Out of stock

2

ROD, CONNECTING | ~E.NO.126974

12161-22A02

1
Out of stock

2

ROD, CONNECTING | E.NO.126975~ This part replaces 12161-22A10.

12161-22A02

1
Out of stock

3

PIN, CRANK This part replaces 12210-22A02.

12210-22A03

1
Out of stock

4

BEARING | ~E.NO.126974 This part replaces 09263-30017-0B0.

09263-30028-0B0

1
Out of stock

4

BEARING | E.NO.126975~145023 This part replaces 09263-30024-0B0.

09263-30028-0B0

1
Out of stock

4

BEARING | E.NO.145024~ This part replaces 09263-30029-0B0.

09263-30033-0B0

1
Out of stock

5

CRANKSHAFT, RH | ~E.NO.145023

12220-22A12

1
Out of stock

5

CRANKSHAFT, RH | E.NO.145024~

12220-22A13

1
Out of stock

6

CRANKSHAFT, LH | ~E.NO.145023 This part replaces 12261-22A04.

12261-22A05

1
Out of stock

6

CRANKSHAFT, LH | E.NO.145024~

12261-22A05

1
Out of stock

7

WASHER | E.NO.145024~

09160-30034

2
Out of stock

8

BEARING, RH

09262-28014

1
Out of stock

9

BEARING (35X72X17) This part replaces 09262-35034.

09262-35038

1
Out of stock

10

OIL SEAL (12X21X7) This part replaces 09282-12001.

09282-12009

1
Out of stock

11

CIRCLIP

08331-41249

1
Out of stock

12

GEAR, OIL PUMP DRIVE (NT:30)

16321-18902

1
Out of stock

13

PIN This part replaces 06211-03052.

04221-03059

1
Out of stock

14

GEAR, PRIMARY DRIVE (NT:21)

21111-22A02

1
Out of stock

15

NUT

09140-16002

1
Out of stock

16

WASHER

09164-16002

1
Out of stock

17

KEY This part replaces 08341-31049.

09420-04008

1
Out of stock

18

PISTON SET | MODEL F ~E.NO.106355 This part replaces 12111-22A02.

12100-22840

1
Out of stock

18

PISTON SET (OS:0.5) | OPT MODEL F ~E.NO.106355 This part replaces 12111-22A02-050.

12100-22840-050

1
Out of stock

18

PISTON SET (OS:1.0) | OPT MODEL F ~E.NO.106355 This part replaces 12111-22A02-100.

12100-22840-100

1
Out of stock

18

PISTON SET | MODEL F E.NO.106356~ MODEL G/H/J

12100-22840

1
Out of stock

18

PISTON SET (OS:0.5) | OPT,MODEL F E.NO.106356~ MODEL G/H/J

12100-22840-050

1
Out of stock

18

PISTON SET (OS:1.0) | OPT MODEL F E.NO.106356~MODEL G/H/J

12100-22840-100

1
Out of stock

19

RING SET, PISTON This part replaces 12140-22A10.

12140-19B10

1
Out of stock

19

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-22A10-050.

12140-19B10-050

1
Out of stock

19

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-22A10-100.

12140-19B10-100

1
Out of stock

20

PIN, PISTON

12151-22A02

1
Out of stock

21

SNAP RING | MODEL F ~E.NO.106355 This part replaces 09381-16002.

09381-16001

2
Out of stock

21

CIRCLIP (D:1.2) | MODEL F E.NO.106356~ MODEL G/H/JINCLUDED PISTON SET

09381-16004

2
Out of stock
