1986 Suzuki LT230GE Crankshaft Diagram

← All diagrams

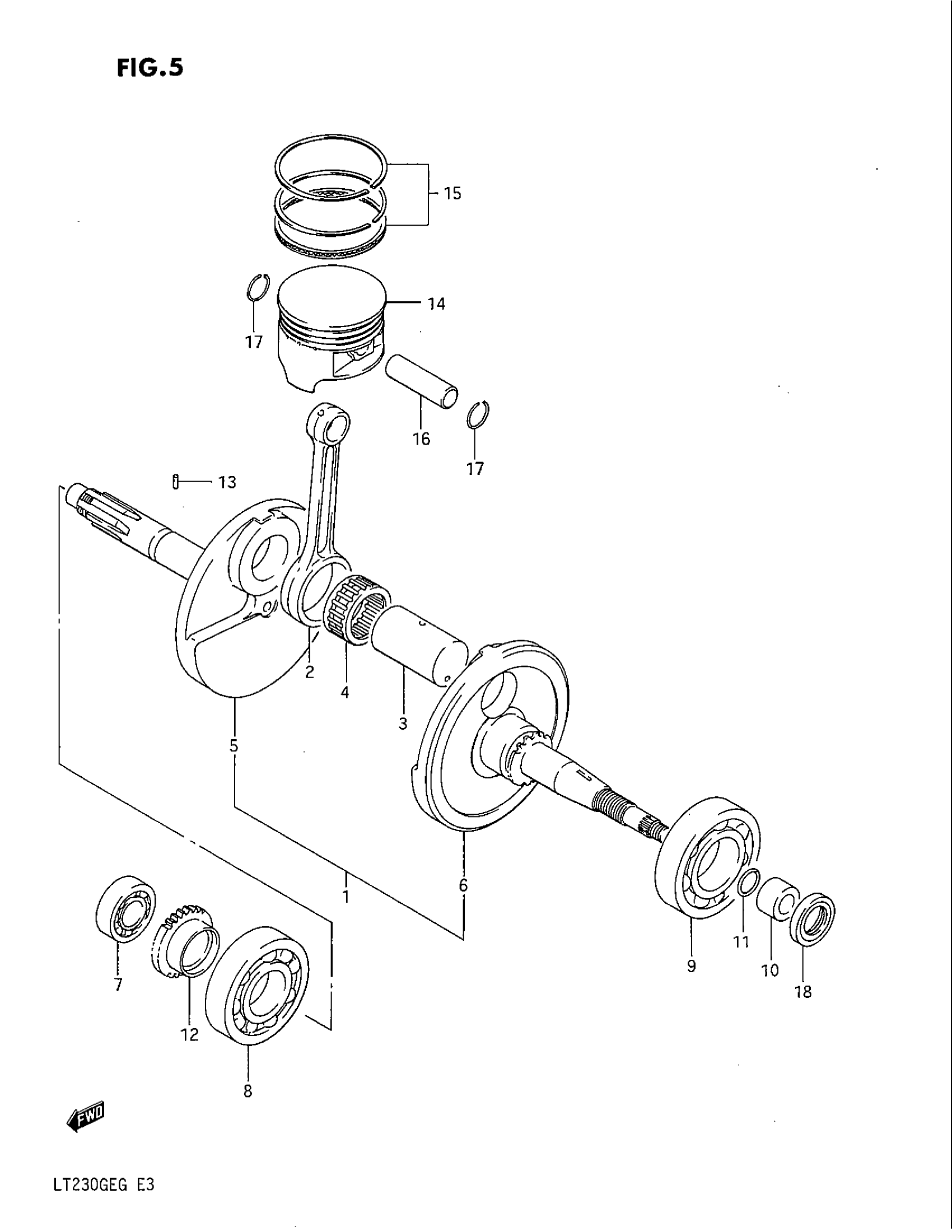

Find the part on the Crankshaft diagram for your 1986 Suzuki LT230GE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki LT230GE Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6 This part replaces 12200-18A06.

12200-35B03

1
Out of stock

2

ROD, CONNECTING This part replaces 12161-22A01.

12161-22A02

1
Out of stock

3

PIN, CRANK This part replaces 12210-22A01.

12210-22A03

1
Out of stock

4

BEARING This part replaces 09263-30017-0B0.

09263-30028-0B0

1
Out of stock

5

CRANKSHAFT, RH

12220-18A10

1
Out of stock

6

CRANKSHAFT, LH

12261-18A04

1
Out of stock

7

BEARING, RH

09262-15014

1
Out of stock

8

BEARING, M

09262-28014

1
Out of stock

9

BEARING (35X72X17) This part replaces 09262-35026.

09262-35038

1
Out of stock

10

1

$23.08

In stock

11

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

1
Out of stock

12

GEAR, OIL PUMP DRIVE (NT:30)

16321-18A00

1
Out of stock

13

PIN This part replaces 06211-03052.

04221-03059

1
Out of stock

14

PISTON

12111-18A04

1
Out of stock

14

PISTON SET O.5 | OPT This part replaces 12111-18A04-050.

12103-18830-050

1
Out of stock

14

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-18A04-100.

12103-18830-100

1
Out of stock

15

RING SET, PISTON This part replaces 12140-22A10.

12140-19B10

1
Out of stock

15

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-22A10-050.

12140-19B10-050

1
Out of stock

15

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-22A10-100.

12140-19B10-100

1
Out of stock

16

PIN, PISTON

12151-22A02

1
Out of stock

17

SNAP RING This part replaces 09381-16002.

09381-16001

2
Out of stock

18

OIL SEAL This part replaces 09283-22017.

09283-22022

1
Out of stock
