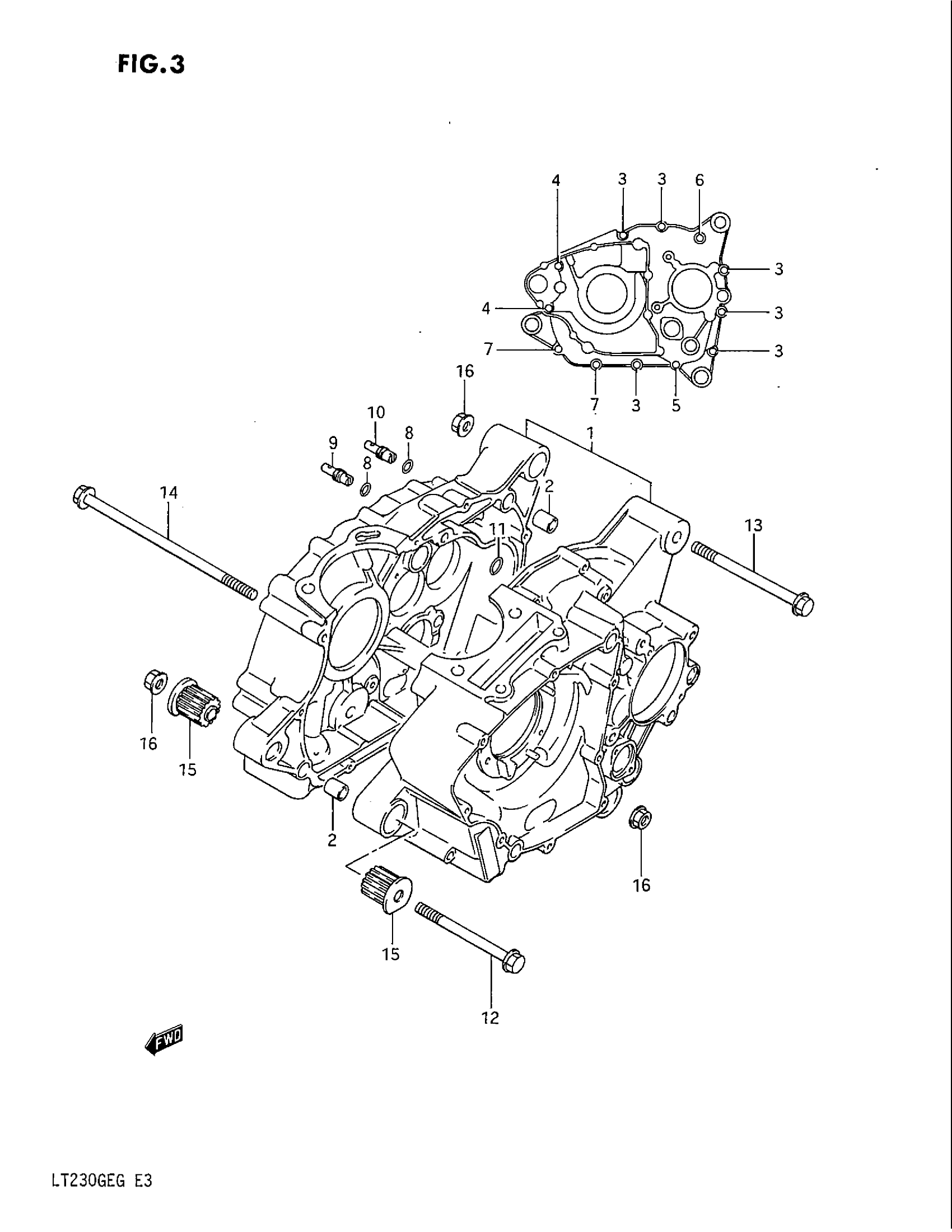

Suzuki LT230GE (1986) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 11

11301-18841

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT This part replaces 01547-06408.

01547-06407

$2.34

4

BOLT This part replaces 01547-06508.

01547-06507

$2.42

5

BOLT This part replaces 01547-06608.

01547-06607

$3.47

6

BOLT,CARB This part replaces 01547-06758.

09103-06522

$3.20

7

BOLT This part replaces 01547-06858.

01547-06857

$3.58

8

O RING, OIL GALLERY JET

09280-04004

$1.76

9

JET, OIL GALLERY

09493-28010

$18.00

10

JET, OIL GALLERY

09493-32006

$18.33

11

O RING (D:1.9,ID:9.8) This part replaces 09280-10010.

09280-10016

$3.04

12

BOLT (10X90)

09103-10061

$6.98

13

BOLT (10X125) This part replaces 09103-10062.

09103-10141

$9.15

14

BOLT (10X200) This part replaces 09103-10074.

09103-10138

Unavailable

15

BUSH

09319-10052

Unavailable

16

NUT This part replaces 08319-31105.

08319-3110A

$2.73
