1986 Suzuki LT230GE Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1986 Suzuki LT230GE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

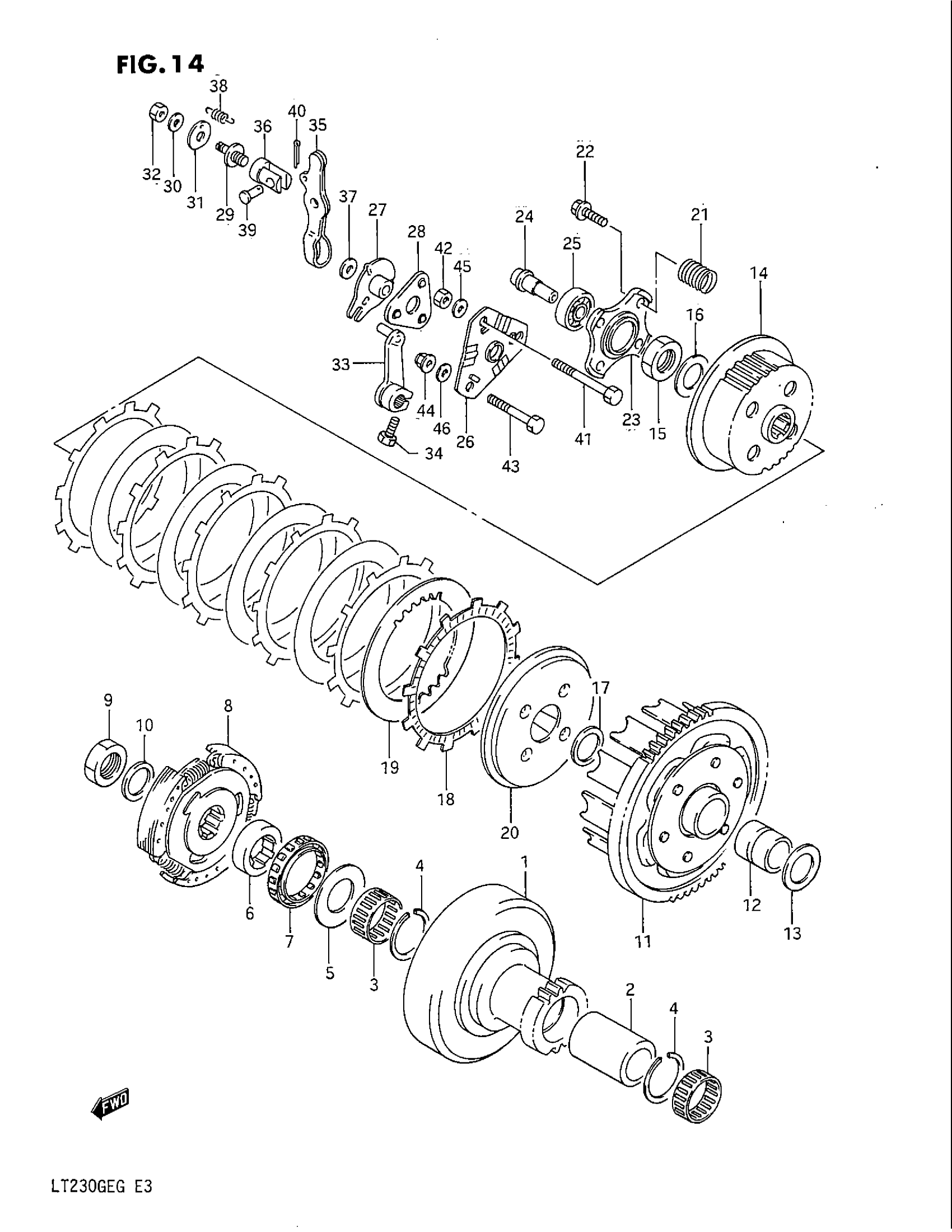

1986 Suzuki LT230GE Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE (NT:22)

21110-18A01

1
Out of stock

2

SPACER

09180-22034

1
Out of stock

3

BEARING

09263-28023

2
Out of stock

4

CIRCLIP

09381-33002

2
Out of stock

5

WASHER

09160-22036

1
Out of stock

6

RACE, INNER

21631-18A00

1
Out of stock

7

CLUTCH, ONE WAY

21273-01401

1
Out of stock

8

SHOE CLUTCH ASS This part replaces 21500-18A01.

21500-19B01

1
Out of stock

9

NUT

09140-20013

1

$4.21

In stock

10

LOCK WASHER

09164-20007

1
Out of stock

11

GEAR ASSY, PRIMARY DRIVEN | NT:69 This part replaces 21200-18A01.

21200-18A02

1
Out of stock

12

SPACER

09180-22035

1

$23.07

In stock

13

1

$4.12

In stock

14

HUB, CLUTCH

21410-18A00

1
Out of stock

15

1

$3.26

In stock

16

WASHER

09164-20007

1
Out of stock

17

WASHER

08211-20323

1

$3.30

In stock

18

6

$15.11

In stock

19

5

$8.38

In stock

20

DISK, PRESSURE

21462-24501

1

$60.83

In stock

21

SPRING

09440-19017

4

$4.72

In stock

22

4

$2.43

In stock

23

PLATE, RELEASE

21465-24500

1

$21.62

In stock

24

PIECE, PUSH This part replaces 23121-18A01.

23121-18A03

1
Out of stock

25

1

$18.14

In stock

26

BALL GUIDE, OUTER

23231-18A00

1
Out of stock

27

BALL GUIDE, INNER This part replaces 23211-18A01.

23211-18A02

1
Out of stock

28

BALL, RELEASE

23250-24500

1
Out of stock

29

BOLT, ADJUSTER

23223-18A00

1
Out of stock

30

1

$2.50

In stock

31

WASHER

09169-06046

1

$1.17

In stock

32

1

$1.82

In stock

33

ARM, RELEASE

23220-18A00

1
Out of stock

34

1

$2.48

In stock

35

ARM, RELEASE NO.2 This part replaces 23225-18A00.

23225-18A01

1
Out of stock

36

BOSS, RELEASE NO.2

23224-18A00

1
Out of stock

38

SPRING

09443-06053

1

$1.53

In stock

39

PIN

09200-07005

1
Out of stock

40

1

$0.96

In stock

41

BOLT

09119-06064

2
Out of stock

42

1

$1.82

In stock

43

BOLT

09119-06063

1
Out of stock

44

2

$2.10

In stock

45

WASHER

08212-06121

1
Out of stock

46

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

1
Out of stock
