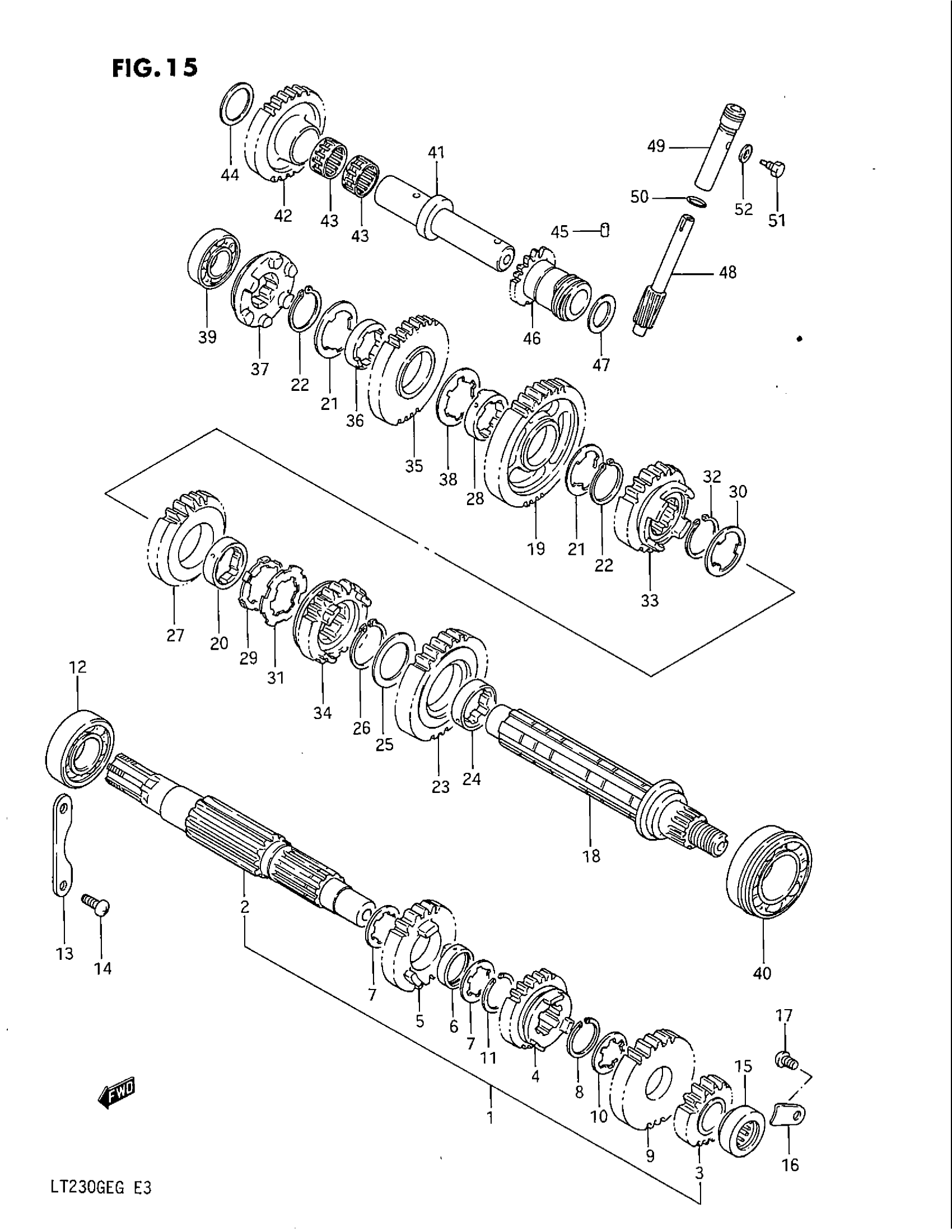

Suzuki LT230GE (1986) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | ~E.NO.100401 This part replaces 24120-18A00.

24120-18A01

Unavailable

1

COUNTERSHAFT ASSY | E.NO.100402~; Includes Item(s) 2 - 11

24120-18A01

Unavailable

2

COUNTERSHAFT (NT:12) | ~E.NO.100401 This part replaces 24121-18A01.

24121-18A03

Unavailable

2

COUNTERSHAFT (NT:12) | E.NO.100402~ This part replaces 24121-18A02.

24121-18A03

Unavailable

3

GEAR, 2ND DRIVE (NT:15)

24221-18A00

$130.65

4

GEAR,3RD DRIVE This part replaces 24231-18A01.

24231-18A03

$134.75

5

GEAR, 4TH DRIVE (NT:21) This part replaces 24241-18A00.

24241-18A01

$59.74

6

BUSH

09300-22008

$16.03

7

WASHER, 6TH DRIVE This part replaces 08211-22301.

09181-22167

$2.80

8

CIRCLIP

09380-22006

$2.80

9

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-18A01.

24251-18A03

$122.07

10

WASHER

09167-22013

Unavailable

11

CIRCLIP

09380-22006

$2.80

12

BEARING, RH

09262-22018

$27.83

13

RETAINER

24741-18A00

Unavailable

14

SCREW This part replaces 02112-06128.

02112-06127

$1.83

15

BEARING, LH

09263-17026

$55.55

16

RETAINER

24742-18A00

$4.92

17

SCREW This part replaces 02112-06088.

02112-06087

$1.45

18

DRIVESHAFT

24131-18A01

Unavailable

19

GEAR, 1ST DRIVEN (NT:37) This part replaces 24311-18A01.

24311-18A02

Unavailable

20

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$21.07

21

LOCK WASHER

09167-25016

$4.03

22

SNAP RING

09380-25003

$2.80

23

GEAR, 2ND DRIVEN (NT:29)

24321-18A01

$127.82

24

BUSH

09300-25020

$18.32

25

WASHER

08211-25351

$4.03

26

SNAP RING

09380-25003

$2.80

27

GEAR, 3RD DRIVEN (NT:26)

24331-18A01

Unavailable

28

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$21.07

29

LOCK WASHER

09169-25001

$2.95

30

LOCK WASHER

09167-25016

$4.03

31

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

32

SNAP RING

09380-25003

$2.80

33

GEAR, 4TH DRIVEN (NT:23) This part replaces 24341-18A01.

24341-18A02

$124.92

34

GEAR, 5TH DRIVEN (NT:21) This part replaces 24351-18A01.

24351-18A02

$124.92

35

GEAR, REVERSE DRIVEN | ~E.NO.108785,SEE NOTE 1 This part replaces 24571-18A01.

24571-18A02

Unavailable

35

GEAR, REVERSE DRIVEN | E.NO.108786~

24571-18A02

Unavailable

36

BUSH,REVERSE DRIVEN GEAR

24333-18A00

Unavailable

37

DOG

24581-18A00

Unavailable

38

WASHER

09167-25017

$4.20

39

BEARING, RH

09262-20059

$27.83

40

BEARING, LH

09267-30006

Unavailable

41

SHAFT, REVERSE IDLER

24551-18A00

Unavailable

42

GEAR, REVERSE IDLER | ~E.NO.108785,SEE NOTE 2 This part replaces 24561-18A01.

24561-18A02

Unavailable

42

GEAR, REVERSE IDLER | E.NO.108786~

24561-18A02

Unavailable

43

BEARING

09263-20060

$22.53

44

THRUST WASHER

08211-20301

$2.97

45

PIN This part replaces 06211-04103.

04221-04109

Unavailable

46

GEAR, ODOMETER DRIVE

26460-18A02

Unavailable

47

THRUST WASHER

08211-17241

$2.53

48

GEAR, ODOMETER DRIVEN

26471-24200

Unavailable

49

SLEEVE

26481-24200

Unavailable

50

O RING

09280-10001

$2.12

51

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$2.80

52

WASHER | EN GEAR (24571-18A02)URE TO USE THE REVERSEE SAME TIME.R GEAR (24561-18A02)URE TO USE THE REVERSEHE SAME TIME.

09168-06004

$1.43
