Description

Price

1

PUMP, ENGINE OIL This part replaces 16400-01411.

16400-01412

$176.20

2

GEAR, DRIVEN (NT:47)

16331-20B00

$95.63

3

PIN

09261-02008

$1.48

4

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.43

5

SCREW

02112-06207

$1.77

6

STRAINER, ENGINE OIL

16520-05202

$5.46

7

SCREW This part replaces 02112-75126.

02112-7512A

$2.43

8

CAP, OIL STR

16523-05200

$13.43

9

.O RING (D:2.4,ID:60.5)

09280-60005

$2.87

10

BOLT This part replaces 01517-06207.

01550-06207

$2.31

11

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.73

12

GASKET

09168-14004

$1.69

13

FILTER ASSY, ENG OIL

16510-25C00

$6.94

14

O RING (D:1.9,ID:13)

09280-13004

$2.19

15

CAP, OIL FILTER

16512-22A00

$24.10

16

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.31

17

GASKET (8.2X14X1.6)

09168-08015

$2.77

18

O RING (D:2.4,ID:53.6)

09280-54002

$5.58

19

SPRING This part replaces 48281-85000.

09440-18002

$1.09

20

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.89

21

NUT This part replaces 08313-11065.

08313-1006A

$1.83

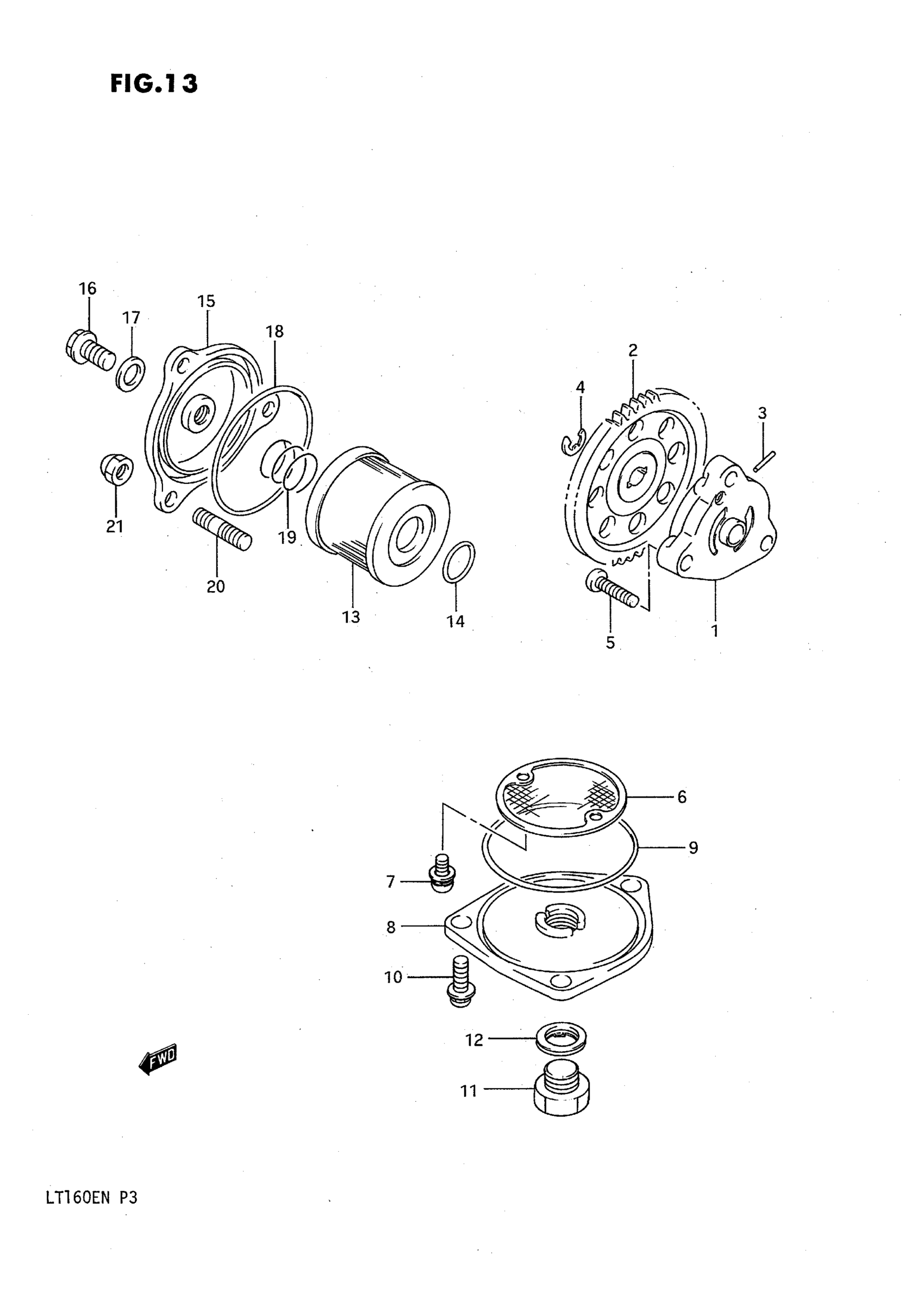

Suzuki LT160E (1992) OIL PUMP - FUEL PUMP Diagram
