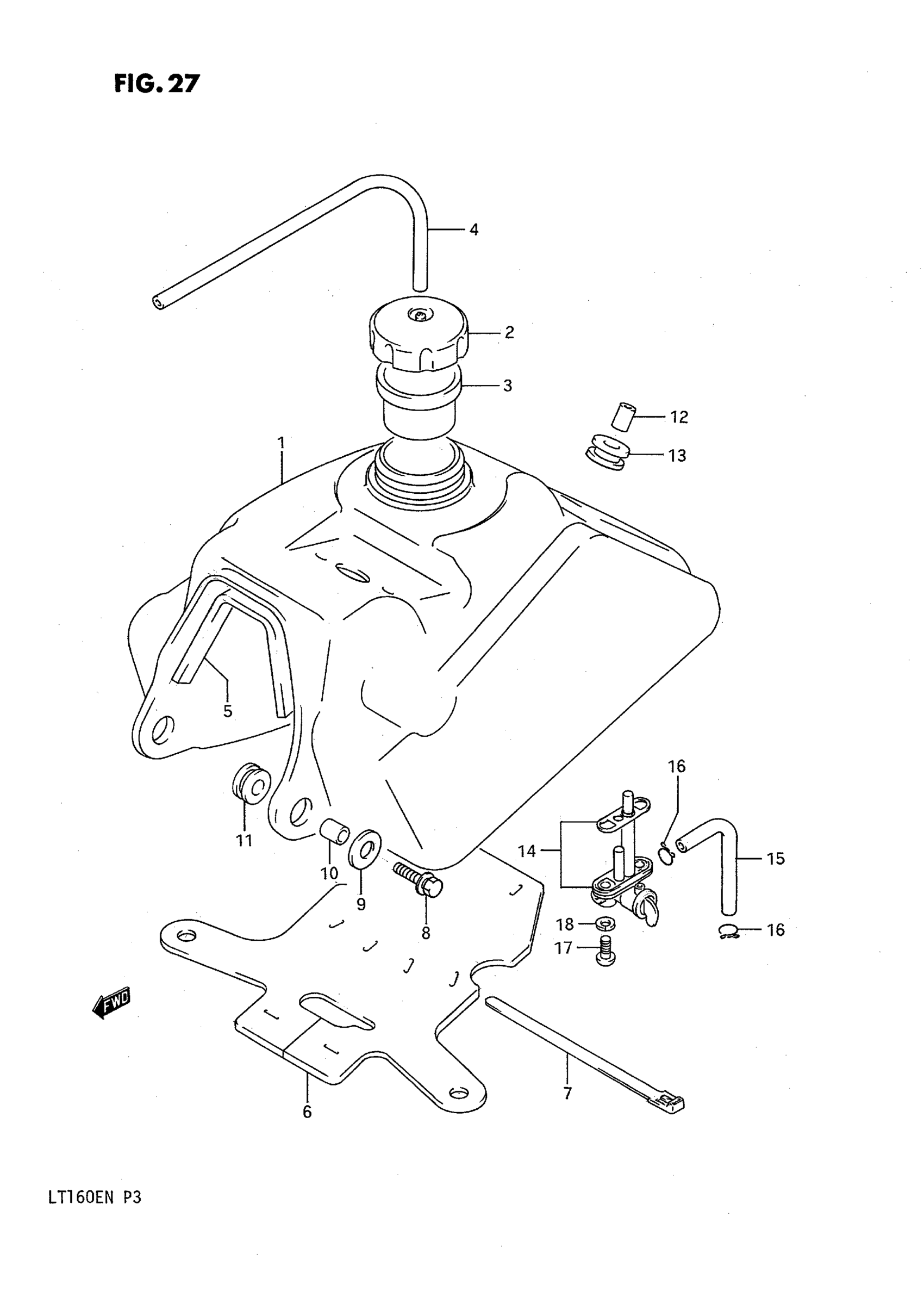

Suzuki LT160E (1992) FUEL TANK Diagram

TANK, FUEL

44110-02C00

Unavailable

CAP, FUEL TANK

44200-19A01

$44.13

TUBE, FILLER INLET

44199-19A00

$5.91

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$9.08

.RUBBER, FUEL TANK FR This part replaces 44261-22AA0.

44261-22A00

$4.37

MUDGUARD, CLEANER INLET

47157-02C00

Unavailable

CLAMP (L:125) | MODEL K This part replaces 09407-144A3.

09407-14403

$2.24

CLAMP | MODEL L/M/N This part replaces 09407-184A2.

09407-18402

$2.21

BOLT This part replaces 01737-08358.

01570-0835A

$2.90

WASHER (8.5X33X1.5) This part replaces 09160-08106.

09160-08146

$2.58

SPACER This part replaces 09180-080G7.

09180-08067

$2.40

CUSHION

09320-12050

Unavailable

SPACER This part replaces 09180-080G7.

09180-08067

$2.40

CUSHION

09320-12016

$2.57

COCK ASSY, FUEL

44300-22A01

$51.95

HOSE,5X10X600 This part replaces 09352-50823-300.

44421-13ER0

$9.08

CLIP

09401-08401

$1.52

SCREW

02112-06167

$1.43

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.83
