1992 Suzuki LT160E Carrier Diagram

← All diagrams

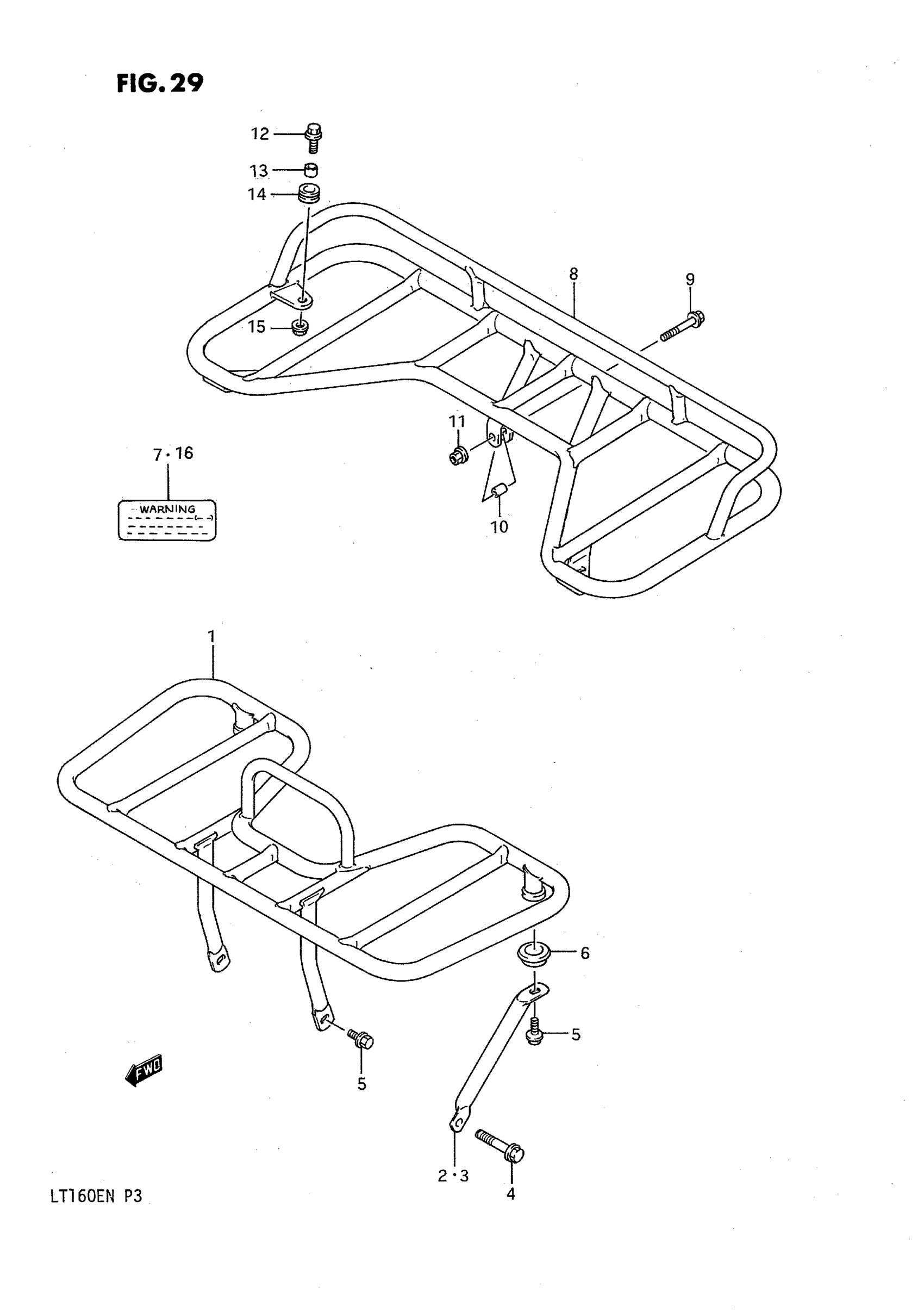

Find the part on the Carrier diagram for your 1992 Suzuki LT160E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki LT160E Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 46400-02820.

99950-71040

1
Out of stock

2

STAY, REAR RH

46441-02C10

1
Out of stock

3

STAY, REAR LH

46442-02C10

1
Out of stock

4

BOLT, FRONT

09103-10116

2
Out of stock

5

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

4
Out of stock

6

GROMMET This part replaces 09308-25004.

09308-25005

2
Out of stock

7

LABEL, WARNING | MODEL K

68381-18A00

1
Out of stock

7

LABEL, WARNING | MODEL L/M/N

68381-02C00

1
Out of stock

8

NO DESCRIPTION AVAILABLE | Includes Item(s) 9 - 16 This part replaces 46300-02820.

99950-71041

1
Out of stock

9

BOLT This part replaces 01517-08405.

01550-08407

2
Out of stock

10

SPACER

46392-02C00

2
Out of stock

11

NUT This part replaces 08316-16085.

08316-1008B

2
Out of stock

12

BOLT This part replaces 01517-08254.

01550-0825A

2
Out of stock

13

SPACER

09180-08141

2
Out of stock

14

CUSHION, PILLION SEAT This part replaces 09320-15007.

09320-15008

2
Out of stock

15

NUT This part replaces 08316-16085.

08316-1008B

2
Out of stock

16

LABEL, WARNING | MODEL K

68381-18900

1
Out of stock

16

LABEL, WARNING | MODEL L/M/N

68391-02C00

1
Out of stock
