1992 Suzuki LT160E Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1992 Suzuki LT160E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

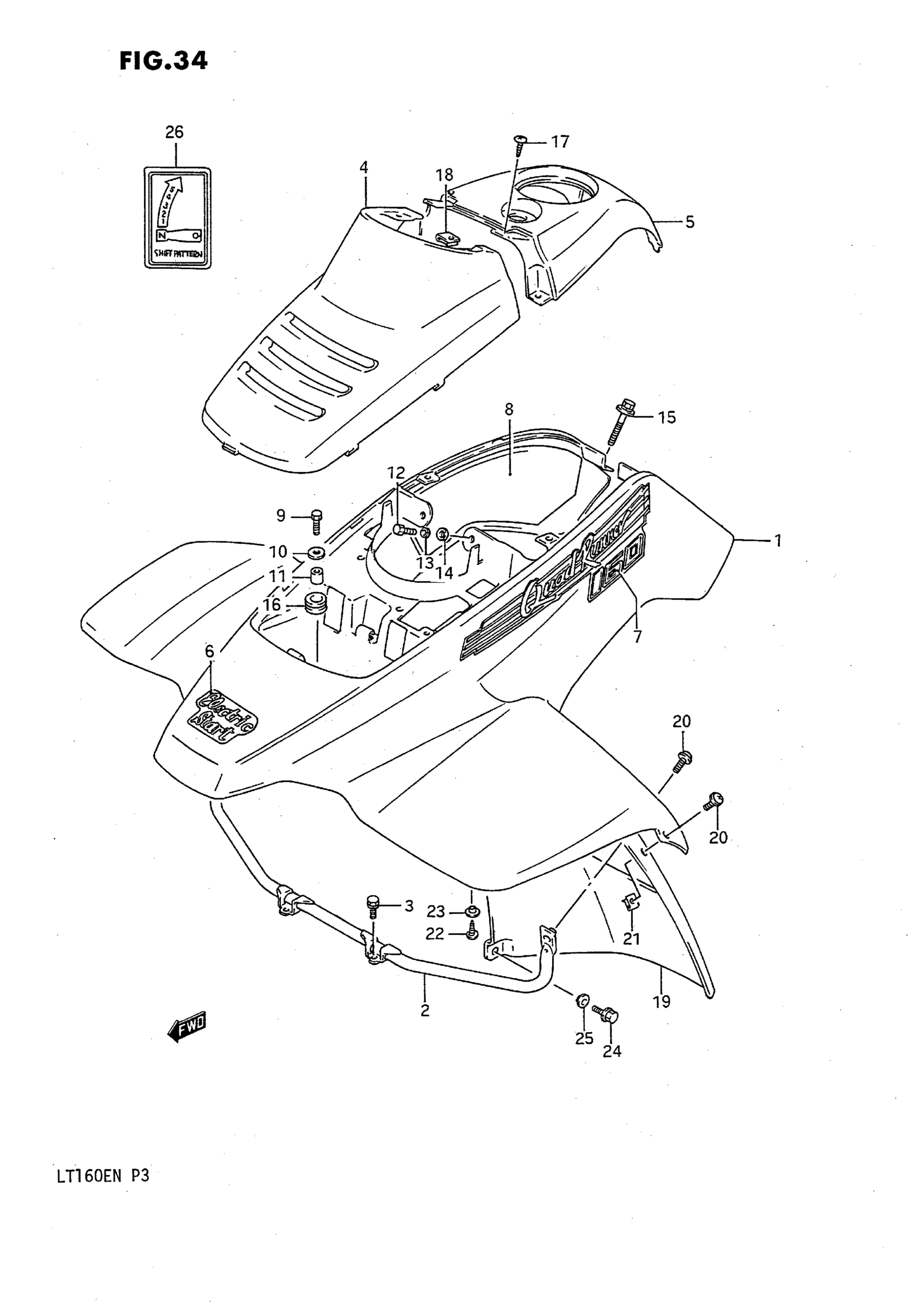

1992 Suzuki LT160E Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT CENTER (ORANGE)

53111-02C00-25G

1
Out of stock

2

BRACE, FRONT FENDER

53210-02C00

1
Out of stock

3

BOLT This part replaces 01944-06125.

01570-0612A

2
Out of stock

4

FENDER, CENTER FRONT (BLUE)

53118-02C00-19F

1
Out of stock

5

FENDER, CENTER REAR (BLUE)

53119-02C00-19F

1
Out of stock

6

EMBLEM

68151-02C00-0DS

1
Out of stock

7

TAPE, FENDER RH

68155-02C00-0DR

1
Out of stock

7

TAPE, FENDER LH

68156-02C00-0DR

1
Out of stock

8

CUSHION, RH

53145-02C00

1
Out of stock

8

CUSHION, LH

53146-02C00

1
Out of stock

9

BOLT This part replaces 01107-06257.

01500-06257

2
Out of stock

10

WASHER This part replaces 09160-06006.

09160-06084

2
Out of stock

11

SPACER This part replaces 09180-061C0.

09180-06120

2
Out of stock

12

BOLT, GEAR SHIFT ARM This part replaces 01107-06256.

01500-0625A

2
Out of stock

13

2

$1.97

In stock

14

WASHER This part replaces 09160-06031.

09160-06125

2
Out of stock

15

BOLT, FENDER REAR This part replaces 01174-06358.

01580-06357

2
Out of stock

16

CUSHION This part replaces 09320-110B5.

09320-11008

2
Out of stock

17

SCREW This part replaces 03241-15125.

03241-1512B

4
Out of stock

18

NUT

09148-05019

4
Out of stock

19

MUD FLAP, RH

53311-02C00

1
Out of stock

19

MUD FLAP, LH

53312-02C00

1
Out of stock

20

SCREW

09136-06004

10
Out of stock

21

NUT This part replaces 09146-06001.

09146-06003

8
Out of stock

22

SCREW This part replaces 03242-05129.

03241-0512A

2
Out of stock

23

WASHER (5.5X18X1) This part replaces 09160-05003.

09160-05045

2
Out of stock

24

BOLT This part replaces 01944-06125.

01570-0612A

2
Out of stock

25

WASHER

09169-06026

2
Out of stock

26

LABEL, GEAR SHIFT

68392-24210

1
Out of stock
