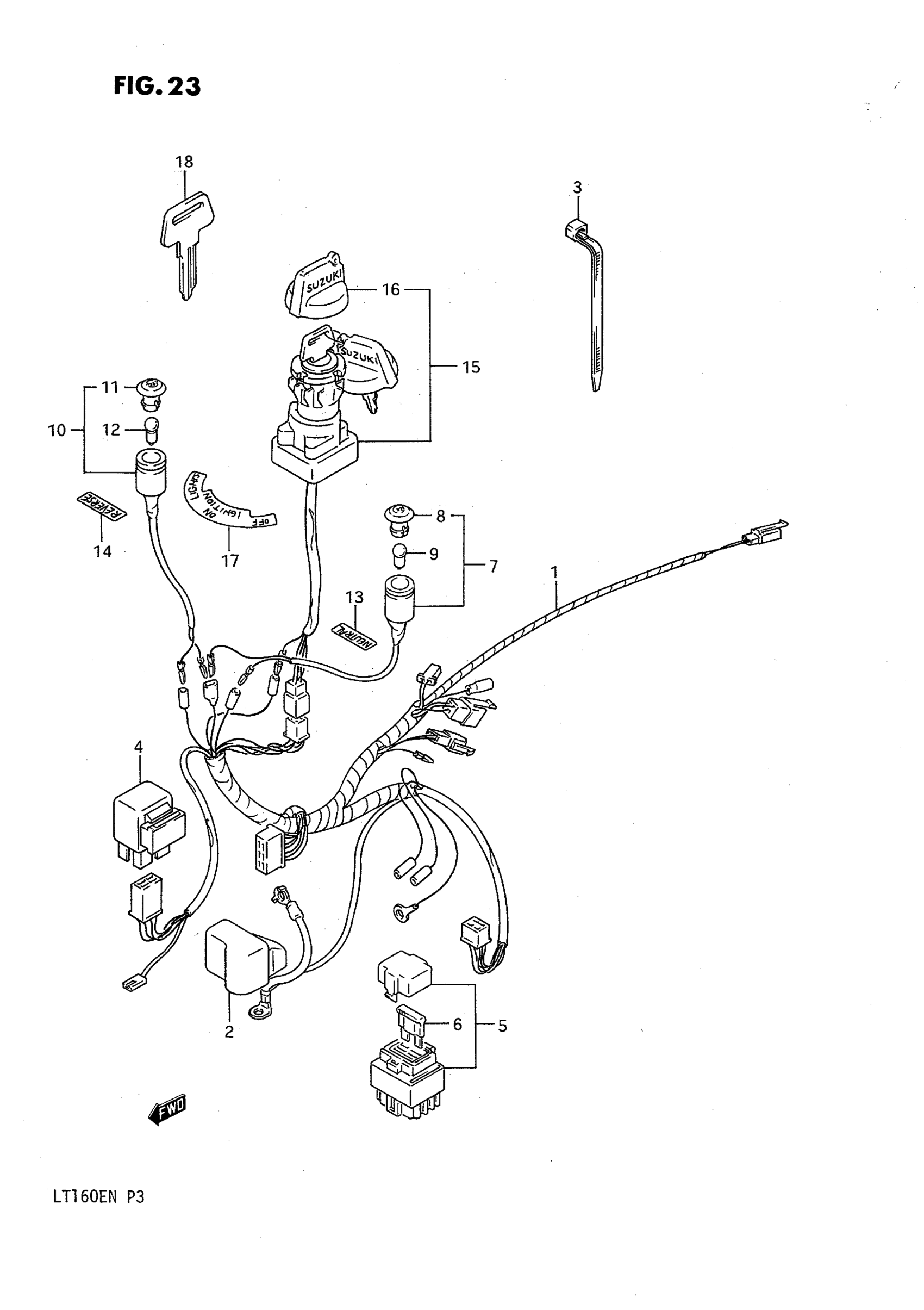

Suzuki LT160E (1992) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | MODEL K/L

36610-02C00

Unavailable

1

WIRING HARNESS | MODEL M/N; Includes Item(s) 2

36610-02C30

Unavailable

2

CAP, BATTERY (+) TERMINAL

33624-02C00

Unavailable

3

CLAMP (L:125)

09407-14403

$2.24

3

CLAMP (L:185)

09407-18402

$2.21

3

CLAMP (L:235)

09407-25401

$4.21

4

RELAY ASSY, SIDE STAND This part replaces 38640-06B10.

38740-24X50

$41.38

5

BOX ASSY, POWER SOURCE FUSE | Includes Item(s) 6 This part replaces 36740-02C00.

36740-04701

$25.08

6

FUSE (15A)

09481-15101

$2.77

7

LAMP ASSY, NEUTRAL | Includes Item(s) 8 - 9

36320-02C00

Unavailable

8

LENS

36321-43000

$4.53

9

BULB (12V,3.4W)

09471-12001

$1.67

10

LAMP ASSY, REVERSE | Includes Item(s) 11 - 12

36360-02C00

Unavailable

11

LENS

36361-43200

$6.00

12

BULB (12V,3.4W)

09471-12001

$1.67

13

LABEL, NEUTRAL

36367-02C00

Unavailable

14

LABEL, REVERSE

36367-02C10

$4.12

15

SWITCH ASSY,IGN | Includes Item(s) 16 This part replaces 37110-02C00.

37110-02C01

$131.20

16

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

17

LABEL, CONTRAL IDENTIFICATION This part replaces 37139-02C00.

37139-02C01

$6.23

18

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

18

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38
