1984 Suzuki LT125 Trans Mission Diagram

← All diagrams

Find the part on the Trans Mission diagram for your 1984 Suzuki LT125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

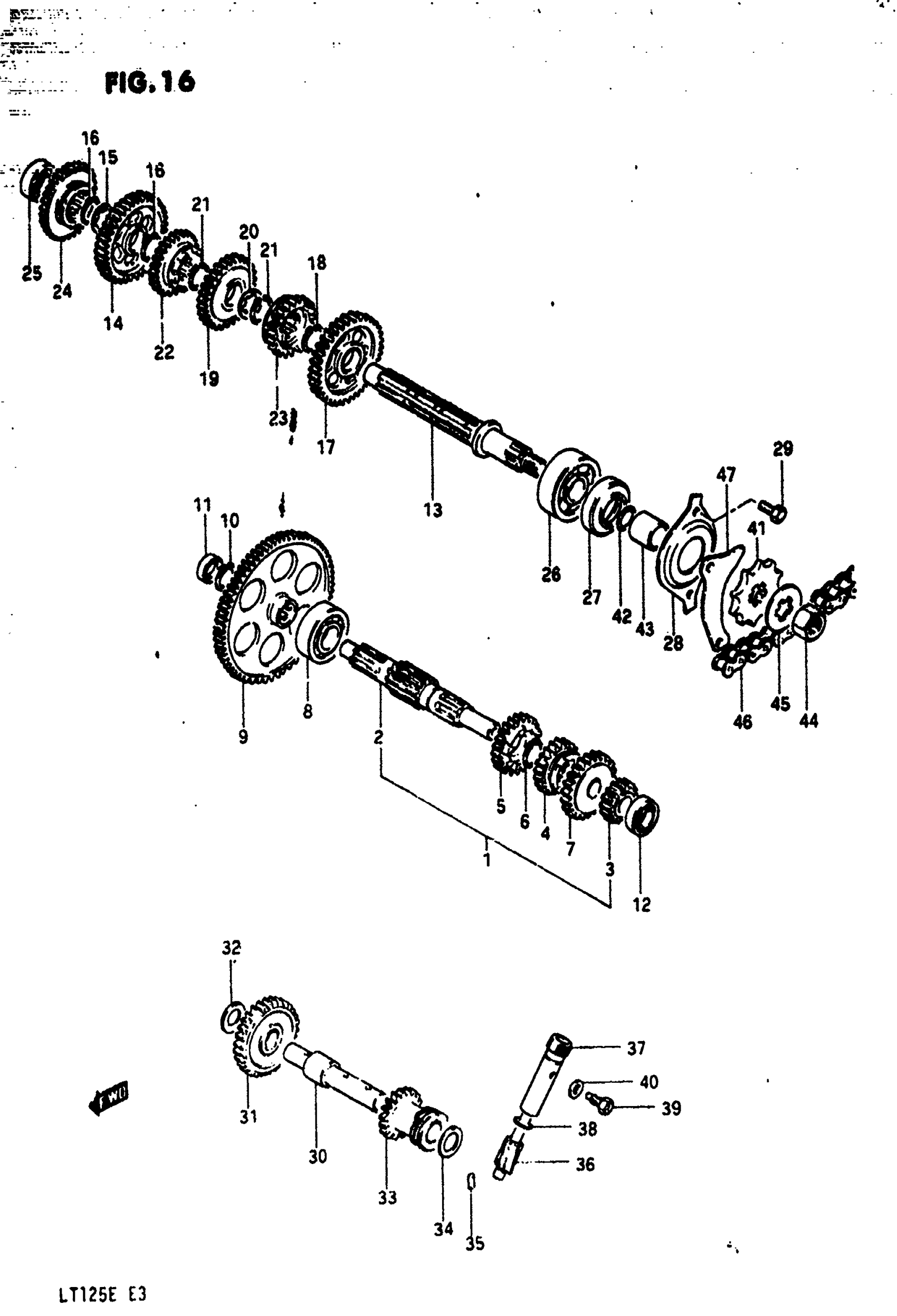

1984 Suzuki LT125 Trans Mission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | TO 24120-18902 WITH 24341-18902; Includes Item(s) 2 - 7 This part replaces 24120-18901.

24120-18902

1
Out of stock

2

COUNTER SHAFT (NT:11)

24100-18830

1
Out of stock

3

GEAR, 2ND DRIVE (NT:15)

24221-18900

1
Out of stock

4

GEAR, 3RD DRIVE (NT:20) This part replaces 24231-18902.

24231-18905

1
Out of stock

5

GEAR, 4TH DRIVE (NT:23) | TO 24240-18901 WITH 24341-18902 This part replaces 24240-18900.

24240-18901

1
Out of stock

6

CIRCLIP

09380-20007

1
Out of stock

7

NO DESCRIPTION AVAILABLE | TO 24250-18901 WITH 24351-18903 This part replaces 24250-18900.

24250-18901

1
Out of stock

8

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

1
Out of stock

9

GEAR, PRIMARY DRIVEN (NT:71) This part replaces 21211-24300.

21211-24301

1
Out of stock

10

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-11209.

08331-3120A

1
Out of stock

11

OIL SEAL

09282-10005

1
Out of stock

12

BEARING, LH

08113-60020

1
Out of stock

13

SHAFT DRIVE This part replaces 24131-18901.

24131-18902

1
Out of stock

14

GEAR 1ST DRIVEN This part replaces 24310-18900.

24310-18901

1
Out of stock

15

LOCK WASHER

09167-20011

1
Out of stock

16

CIRCLIP

09380-20007

2
Out of stock

17

NO DESCRIPTION AVAILABLE This part replaces 24320-18900.

24320-18901

1
Out of stock

18

CIRCLIP

09380-20007

1
Out of stock

19

NO DESCRIPTION AVAILABLE This part replaces 24330-18900.

24330-18902

1
Out of stock

20

LOCK WASHER

09167-20011

1
Out of stock

21

CIRCLIP

09380-20007

2
Out of stock

22

GEAR, 4TH DRIVEN (NT:27) | ~E.NO.146026 This part replaces 24341-18900.

24341-18902

1
Out of stock

22

GEAR, 4TH DRIVEN (NT:27) | TO 24341-18902 WITH 24240-18901 This part replaces 24341-18901.

24341-18902

1
Out of stock

23

GEAR, 5TH DRIVEN (NT:21) | TO 24351-18903 WITH 24250-18901 This part replaces 24351-18901.

24351-18904

1
Out of stock

24

GEAR, REVERSE DRIVEN | SEE NOTE

24571-18901

1
Out of stock

25

BEARING, RH This part replaces 08123-62020.

08123-62027

1
Out of stock

26

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

1
Out of stock

27

CIL SEAL

09283-27010

1
Out of stock

28

RETAINER

24751-18900

1
Out of stock

29

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

30

SHAFT, REVERSE

24550-18900

1
Out of stock

31

GEAR, REVERSE IDLER | SEE NOTE

24560-18901

1
Out of stock

32

SHIM This part replaces 08221-15245.

09181-15158

1
Out of stock

33

GEAR, ODOMETER DRIVE This part replaces 26460-24300.

26460-24301

1
Out of stock

34

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

1
Out of stock

35

PIN This part replaces 06211-04103.

04221-04109

1
Out of stock

36

GEAR, ODOMETER DRIVEN

26471-24200

1
Out of stock

37

SLEEVE

26481-24200

1
Out of stock

38

O RING

09280-10001

1
Out of stock

39

BOLT (6X10) This part replaces 09135-06002.

09135-06501

1
Out of stock

40

WASHER

09168-06004

1
Out of stock

41

SPROCKET, ENGINE (NT:13)

27511-41701

1
Out of stock

42

O RING

09280-20001

1
Out of stock

43

SPACER

09180-20081

1
Out of stock

44

NUT

09140-16017

1
Out of stock

45

LOCK WASHER

09167-20012

1
Out of stock

46

CHAIN, DRIVE (428VX90LE)

27600-18910

1
Out of stock

47

PLATE

27641-18900

1
Out of stock
