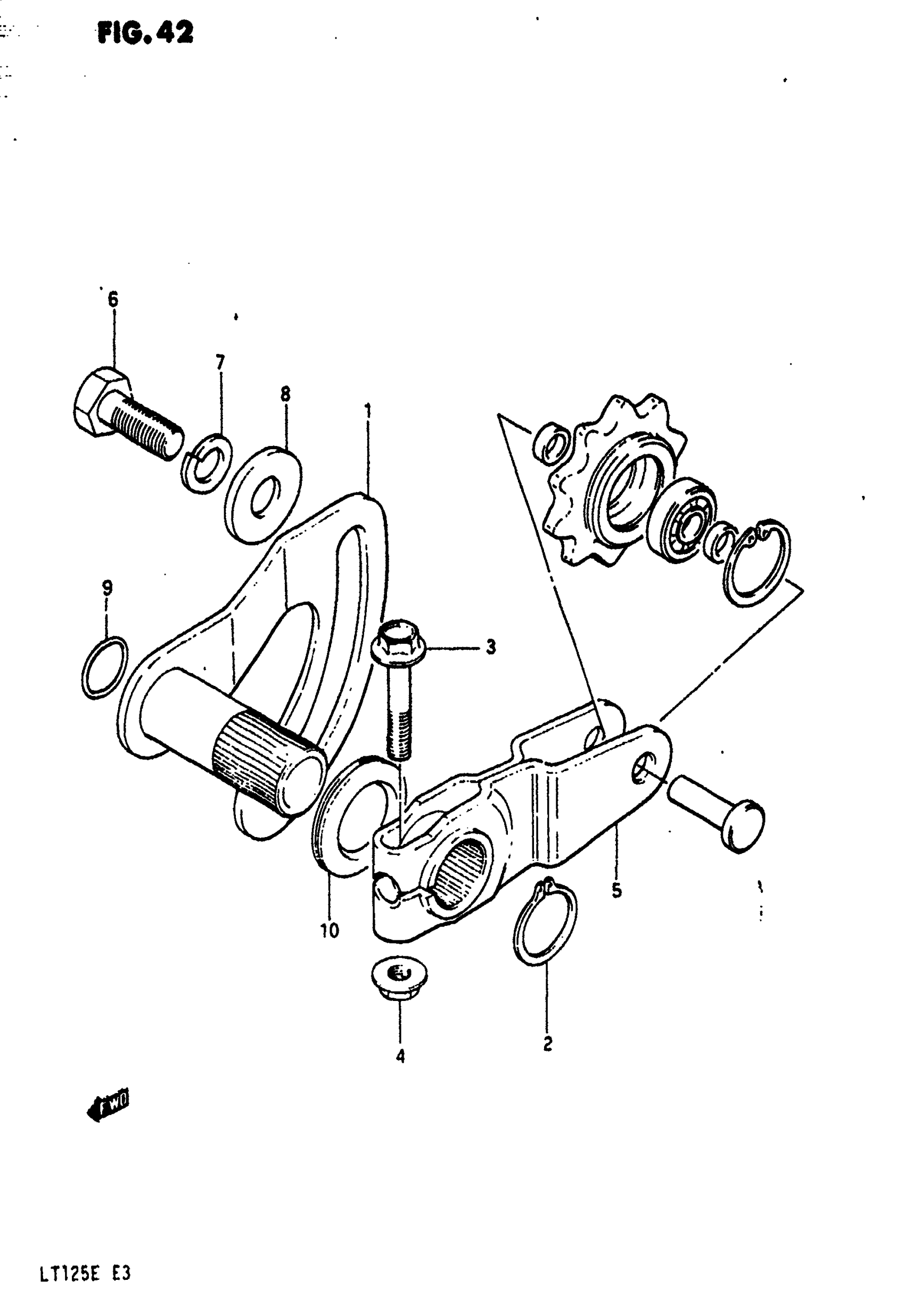

Suzuki LT125 (1984) TENSIONER Diagram

#

Description
Price

1

ARM, TENSIONER | MODEL D This part replaces 61340-24300.

61340-24303

Unavailable

1

ARM, TENSIONER | MODEL E This part replaces 61340-24302.

61340-24303

Unavailable

2

CIRCLIP This part replaces 08331-31226.

08331-31229

$2.48

3

BOLT

09103-08043

$3.18

4

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

5

TENSIONER SET, CHAIN (NT:13) This part replaces 61300-24820.

61300-24821

Unavailable

6

BOLT This part replaces 01107-12308.

01500-1230A

Unavailable

7

LOCK WASHER This part replaces 08321-31128.

08321-01127

$2.06

8

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

$3.72

9

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

10

GROMMET

09308-21001

Unavailable
