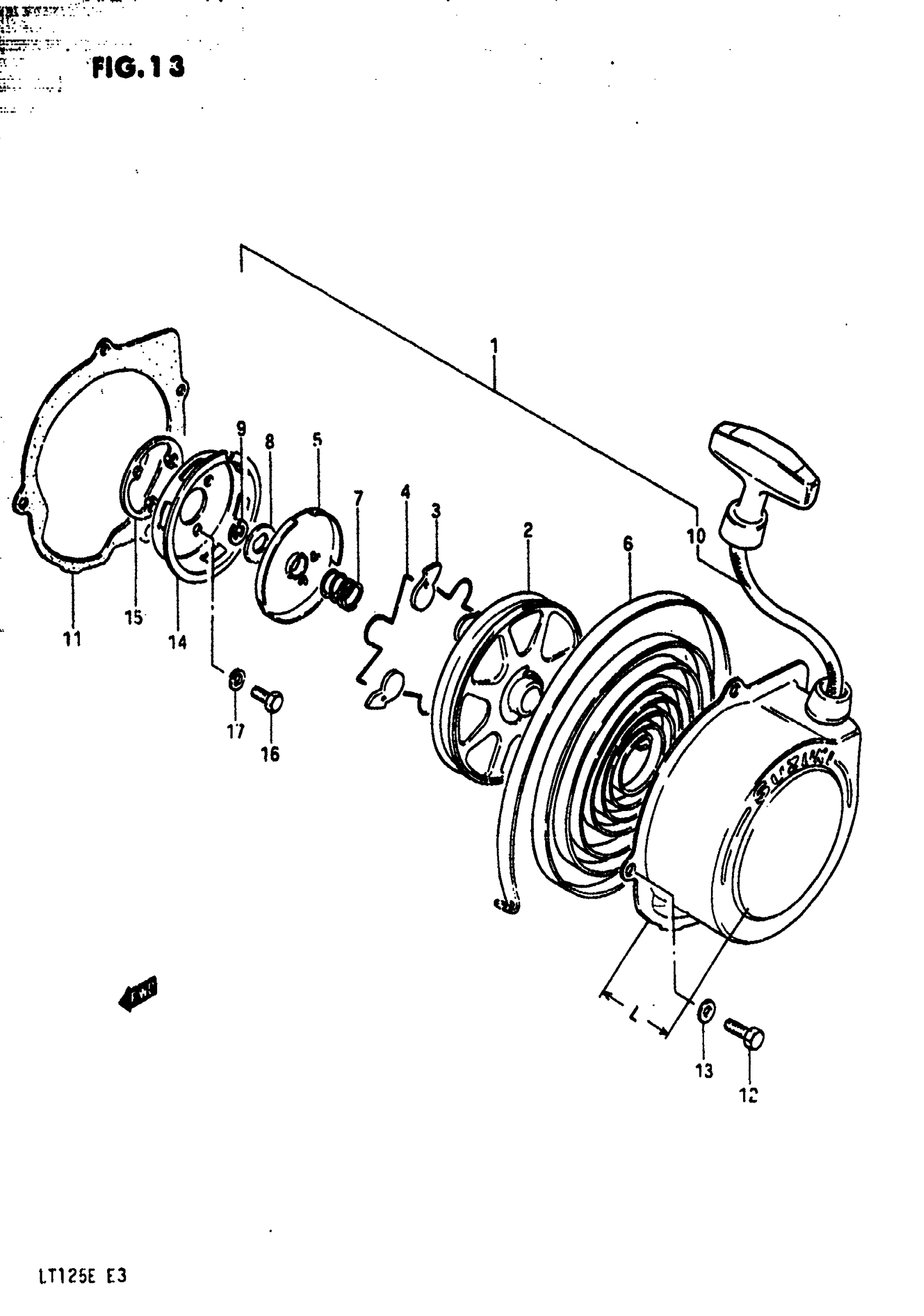

Suzuki LT125 (1984) RECOIL STARTER (L:57.5) Diagram

#

Description
Price

1

STARTER ASSY, RECOIL | Includes Item(s) 2 - 10 This part replaces 18100-18901.

18100-24404

Unavailable

2

REEL

18120-18900

Unavailable

3

RATCHET

18131-18900

Unavailable

4

SPRING, RETURN

18155-18900

Unavailable

5

PLATE, FRICTION

18151-18900

Unavailable

6

.SPRING,SPIRAL This part replaces 18142-98001.

18142-24400

$29.60

7

SPRING, FRICTION

18153-18900

$2.18

8

THURST WASHER

18335-18900

Unavailable

9

.E-RING This part replaces 18178-18900.

08332-1108A

$1.78

10

ROPE ASSY This part replaces 18200-18901.

18200-24400

$34.27

11

GASKET

18299-18900

Unavailable

12

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

CUP, STARTER

18411-18900

Unavailable

15

SPACER

18511-18900

Unavailable

16

BOLT This part replaces 01107-06128.

01500-06127

$1.97

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
