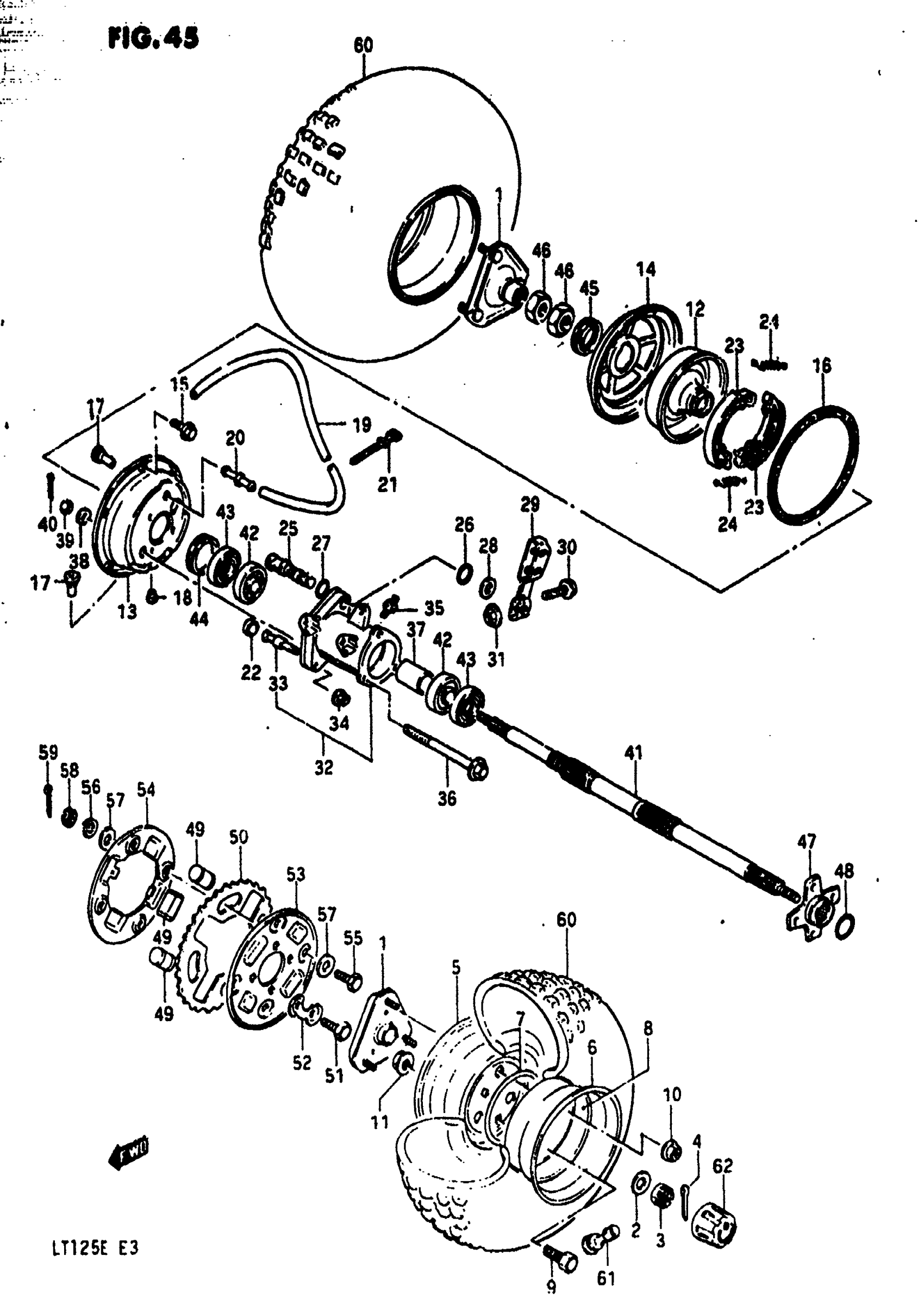

Suzuki LT125 (1984) REAR WHEEL (MODEL E) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 64110-24310.

64110-24311

Unavailable

2

WASHER, HUB

09160-18015

$7.63

3

NUT,RR AXLE This part replaces 09141-18001.

09141-18003

$4.34

4

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

5

NO DESCRIPTION AVAILABLE This part replaces 65312-24300-13T.

65312-24301-13T

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 65313-24300-13T.

65313-24301-13T

Unavailable

7

PACKING

55315-24200

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 65317-24300-13T.

65317-24301-13T

Unavailable

9

BOLT, WHEEL SET

09107-08003

Unavailable

10

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

11

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

12

DRUM, REAR BRAKE This part replaces 64120-24400.

64120-24401

$278.28

13

COVER, DRUM INNER This part replaces 64122-24400.

64122-24401

Unavailable

14

COVER, DRUM OUTER This part replaces 64130-24411.

64130-24413

Unavailable

15

BOLT This part replaces 01517-06128.

01550-06127

$2.30

16

PACKING, COVER This part replaces 64125-24401.

64160-24400

$22.22

17

PLUG, DRAIN, BREATHER

09259-12002

Unavailable

18

CAP, DRAIN

09250-08001

Unavailable

19

HOSE, 7X12, 1X2 This part replaces 09343-07011.

09352-70121-00B

$32.90

20

JOINT, HOSE

09367-08001

$4.17

21

CLAMP, HOSE

09407-14401

$3.77

22

DUST SEAL, BRAKE ANCHOR PIN

64233-24400

Unavailable

23

SHOE SET, REAR BRAKE This part replaces 54410-37200.

64400-02830

$55.17

24

SPRING

55420-30000

$4.48

25

CAM, REAR BRAKE This part replaces 64440-24400.

64440-24402

$21.05

26

O RING

64443-24300

$2.08

27

O RING

09280-21012

Unavailable

28

WASHER This part replaces 09160-15001.

09160-15048

$2.56

29

LEVER, BRAKE CAM This part replaces 64451-24301.

64451-24302

$34.63

30

BOLT This part replaces 01517-06308.

01550-06307

$2.69

31

NUT This part replaces 08316-16068.

08319-31067

$2.03

32

HOUSING, AXLE | Includes Item(s) 33 - 34

64720-24402

Unavailable

33

PIN

64231-24400

Unavailable

34

NUT This part replaces 08319-31108.

08319-31107

$2.73

35

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

36

BOLT, HOUSING

64716-24301

Unavailable

37

SPACER

64731-24200

$34.63

38

WASHER This part replaces 08322-11088.

08322-01087

$2.13

39

NUT

08314-31088

Unavailable

40

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

41

AXLE, REAR This part replaces 64711-24302.

64711-24303

Unavailable

42

BEARING (35X62X14) This part replaces 08123-60077.

09262-35032

$60.15

43

DUST SEAL

09283-42011

$12.61

44

DUST SEAL, INNER

64729-24400

Unavailable

45

DUST SEAL, OUTER

64729-24410

Unavailable

46

NUT

09140-32001

Unavailable

47

FLANGE, SPROCKET MOUNTING This part replaces 64611-24301.

64611-24302

Unavailable

48

O RING

09380-31001

Unavailable

49

SHOCK ABSORBER This part replaces 64650-24200.

64650-24400

Unavailable

50

SPROCKET, REAR (NT:49)

64511-24201

Unavailable

51

BOLT

09100-10196

Unavailable

52

WASHER

09169-10017

Unavailable

53

PLATE, SPROCKET

64512-24300

Unavailable

54

PLATE, SPROCKET

64513-24300

Unavailable

55

BOLT

09101-06007

Unavailable

56

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

57

WASHER This part replaces 08322-21068.

08322-01067

$2.13

58

NUT

09141-06001

Unavailable

59

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

60

TIRE (22x11.00-8) | DUNLOP

55100-24255

Unavailable

61

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

62

CAP This part replaces 54725-24500.

54725-18A00

$10.28
