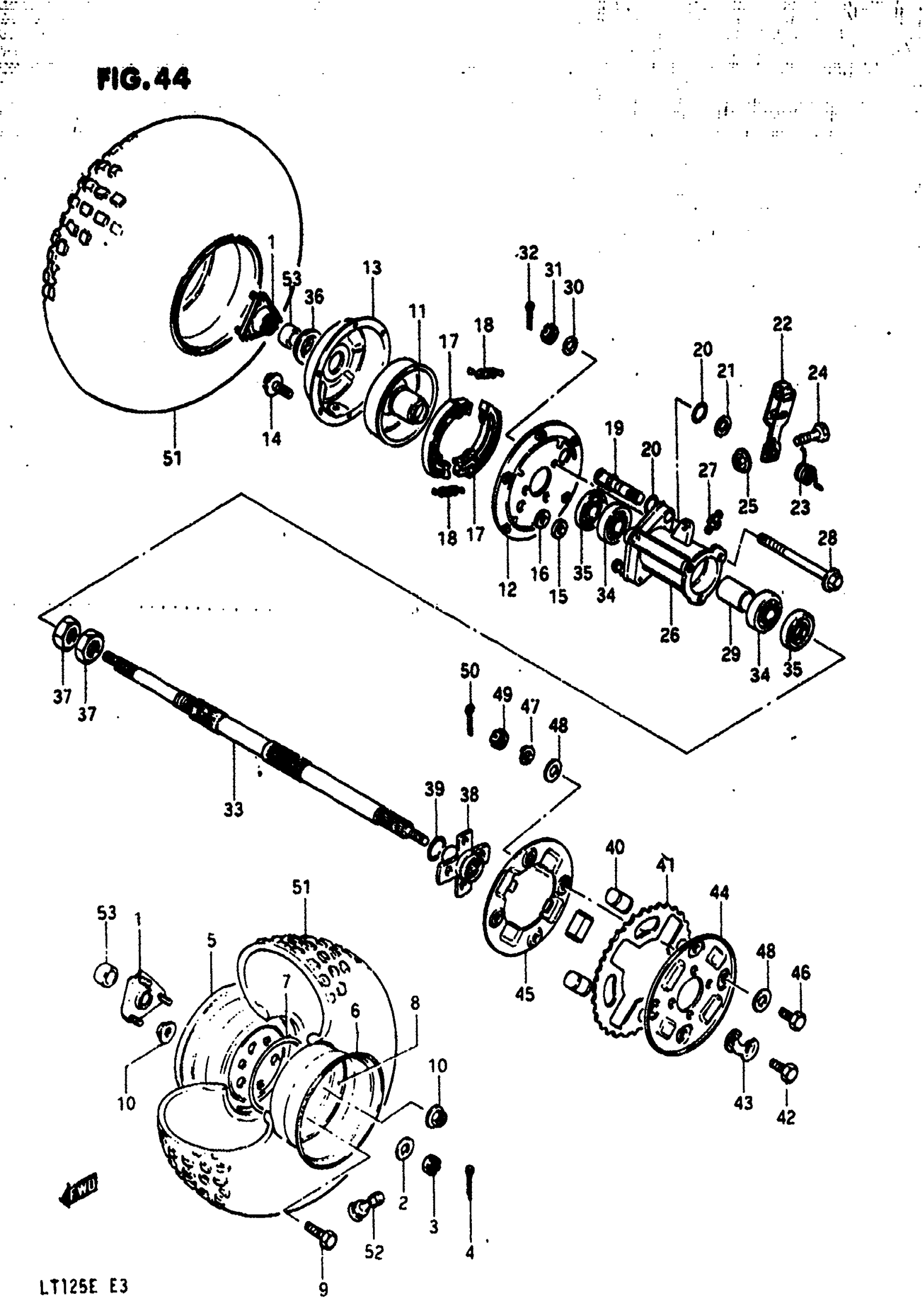

Suzuki LT125 (1984) REAR WHEEL (MODEL D) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 64110-24300.

64110-24302

Unavailable

2

NO DESCRIPTION AVAILABLE | WITH64711-24301 This part replaces 09160-18009.

09160-18017

$1.52

3

NUT,RR AXLE This part replaces 09141-18001.

09141-18003

$4.34

4

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

5

NO DESCRIPTION AVAILABLE This part replaces 55312-24200-126.

55312-24201-126

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 55313-24200-126.

55313-24201-126

Unavailable

7

PACKING

55315-24200

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 55317-24200-126.

55317-24201-126

Unavailable

9

BOLT

09107-08003

Unavailable

10

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

11

DRUM, BRAKE

64120-24300

Unavailable

12

COVER, DRUM INNER

64122-24300

Unavailable

13

COVER, DRUM OUTER

64123-24300

Unavailable

14

BOLT This part replaces 01517-06108.

01550-06107

$2.80

15

DUST SEAL, BRAKE ANCHOR PIN This part replaces 64233-24300.

64233-24400

Unavailable

16

WASHER This part replaces 08322-11108.

08322-01107

$2.15

17

SHOE SET, BRAKE This part replaces 54410-18990.

54400-14860

Unavailable

18

SPRING

55420-41100

Unavailable

19

CAM, BRAKE This part replaces 64440-24300.

64440-24301

Unavailable

20

O RING

64443-24300

$2.08

21

WASHER This part replaces 09160-15001.

09160-15048

$2.56

22

LEVER, BRAKE CAM This part replaces 64451-24300.

64451-24302

$34.63

23

SPRING, LEVER RETURN

64484-24301

Unavailable

24

BOLT This part replaces 01517-06308.

01550-06307

$2.69

25

NUT This part replaces 08316-16068.

08319-31067

$2.03

26

NO DESCRIPTION AVAILABLE | Includes Item(s) 27 This part replaces 64700-24811.

64720-24302

Unavailable

27

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

28

BOLT, HOUSING This part replaces 64716-24300.

64716-24301

Unavailable

29

SPACER

64731-24200

$34.63

30

WASHER This part replaces 08322-11088.

08322-01087

$2.13

31

NUT

08314-31088

Unavailable

32

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

33

AXLE, REAR | F.NO.100301~ This part replaces 64711-24301.

64711-24303

Unavailable

33

AXLE, REAR | F.NO.-100300 WITH 64751-24990 This part replaces 64711-24990.

64711-24303

Unavailable

34

BEARING (35X62X14) This part replaces 08123-60077.

09262-35032

$60.15

35

OIL SEAL, FINAL DRIVEN RH This part replaces 09283-42010.

09283-42011

$12.61

36

DUST SEAL

64729-24300

Unavailable

37

NUT

09140-32001

Unavailable

38

FLANGE, SPROCKET MOUNTING This part replaces 64611-24300.

64611-24302

Unavailable

39

O RING

09380-31001

Unavailable

40

SHOCK ABSORBER This part replaces 64650-24200.

64650-24400

Unavailable

41

SPROCKET, REAR (NT:49) This part replaces 64511-24200.

64511-24201

Unavailable

42

BOLT

09100-10196

Unavailable

43

WASHER

09169-10017

Unavailable

44

PLATE, SPROCKET

64512-24300

Unavailable

45

PLATE, SPROCKET

64513-24300

Unavailable

46

BOLT

09101-06007

Unavailable

47

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

48

WASHER This part replaces 08322-21068.

08322-01067

$2.13

49

NUT

09141-06001

Unavailable

50

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

51

TIRE (22x11.00-8) | DUNLOP

55100-24255

Unavailable

52

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

53

SPACER

64751-24990

Unavailable
