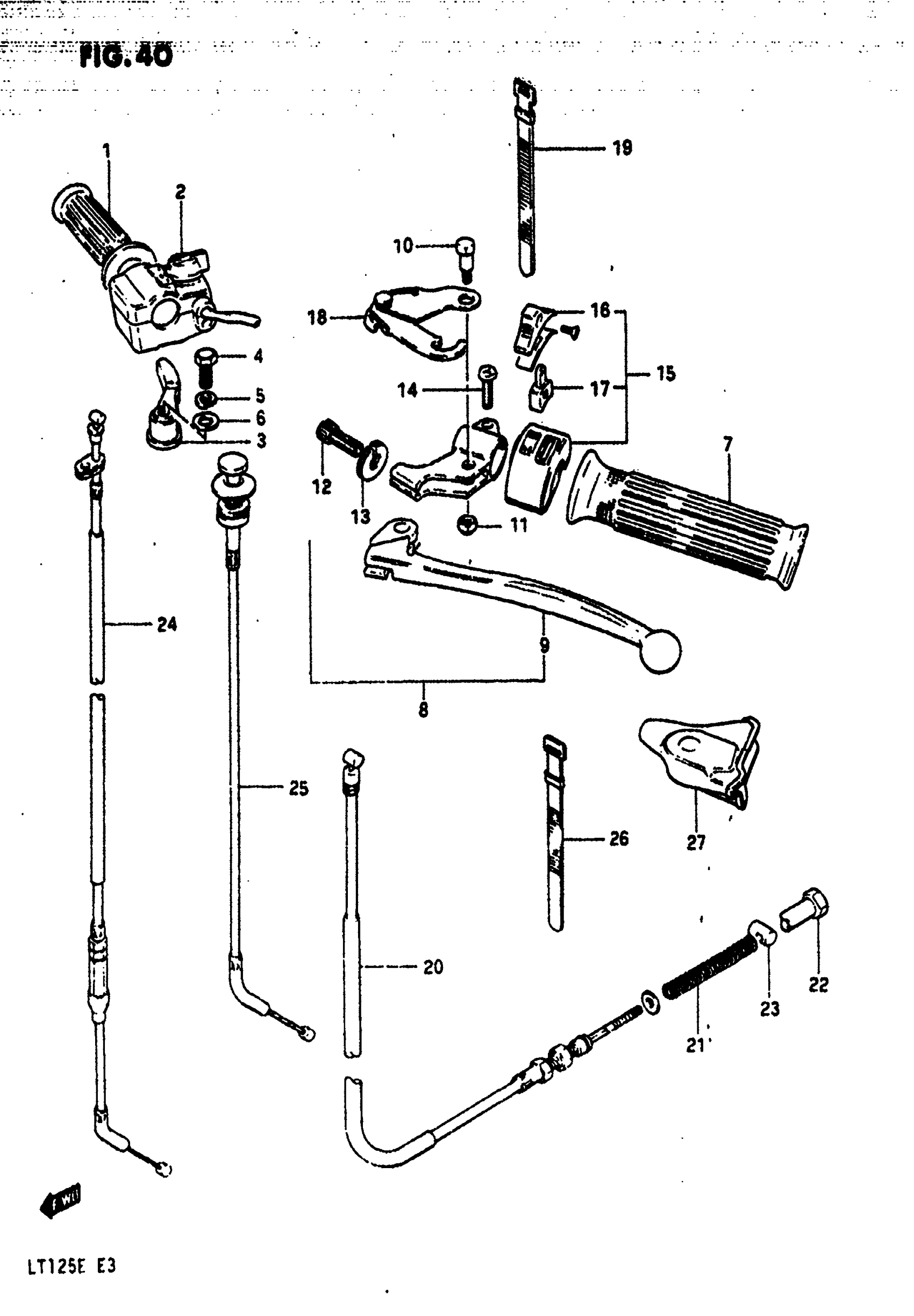

Suzuki LT125 (1984) HANDLE SWITCH - CONTROL CABLE (MODEL E) Diagram

#

Description
Price

1

GRIP This part replaces 57211-24200.

57211-24201

Unavailable

2

THROTTLE CASE ASSY | Includes Item(s) 3 - 6 This part replaces 57100-24310.

57100-24312

Unavailable

3

LEVER

57151-24301

$12.95

4

BOLT

57152-24300

Unavailable

5

WASHER

57153-24300

Unavailable

6

WASHER (6.5X16X1.2) This part replaces 57154-24300.

09160-06019

$1.49

7

GRIP This part replaces 57211-24200.

57211-24201

Unavailable

8

LEVER ASSY, REAR BRAKE | Includes Item(s) 9 - 14

57500-24200

Unavailable

9

LEVER,BRAKE This part replaces 57620-24200.

57620-29500

Unavailable

10

BOLT This part replaces 57431-24200.

57431-29502

$7.67

11

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

12

ADJUSTER, CABLE

57441-11010

$5.62

13

NUT, CABLE ADJUSTER

57442-11010

$2.79

14

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

15

SWITCH ASSY, LIGHTING | Includes Item(s) 16 - 17

37250-38200

Unavailable

16

KNOB

57617-28602

Unavailable

17

BLOCK, SLIDING

57680-28602

Unavailable

18

STOPPER, BRAKE LEVER

57790-18900

Unavailable

19

BAND

09407-12402

$3.04

20

CABLE, REAR BRAKE This part replaces 58510-18901.

58510-24430

Unavailable

21

NO DESCRIPTION AVAILABLE This part replaces 09440-07034.

09440-07034-XC0

Unavailable

22

NUT This part replaces 09150-06008.

09150-06012

$3.37

23

PIN

09209-13006

$5.24

24

CABLE,THROTTLE This part replaces 58300-18900.

58300-24431

Unavailable

25

CABLE, STARTER This part replaces 58400-18900.

58400-18901

Unavailable

26

CLAMP, CABLE

09407-14401

$3.77

27

COVER, BRAKE DUST This part replaces 57541-29500.

57541-29501

$10.23
