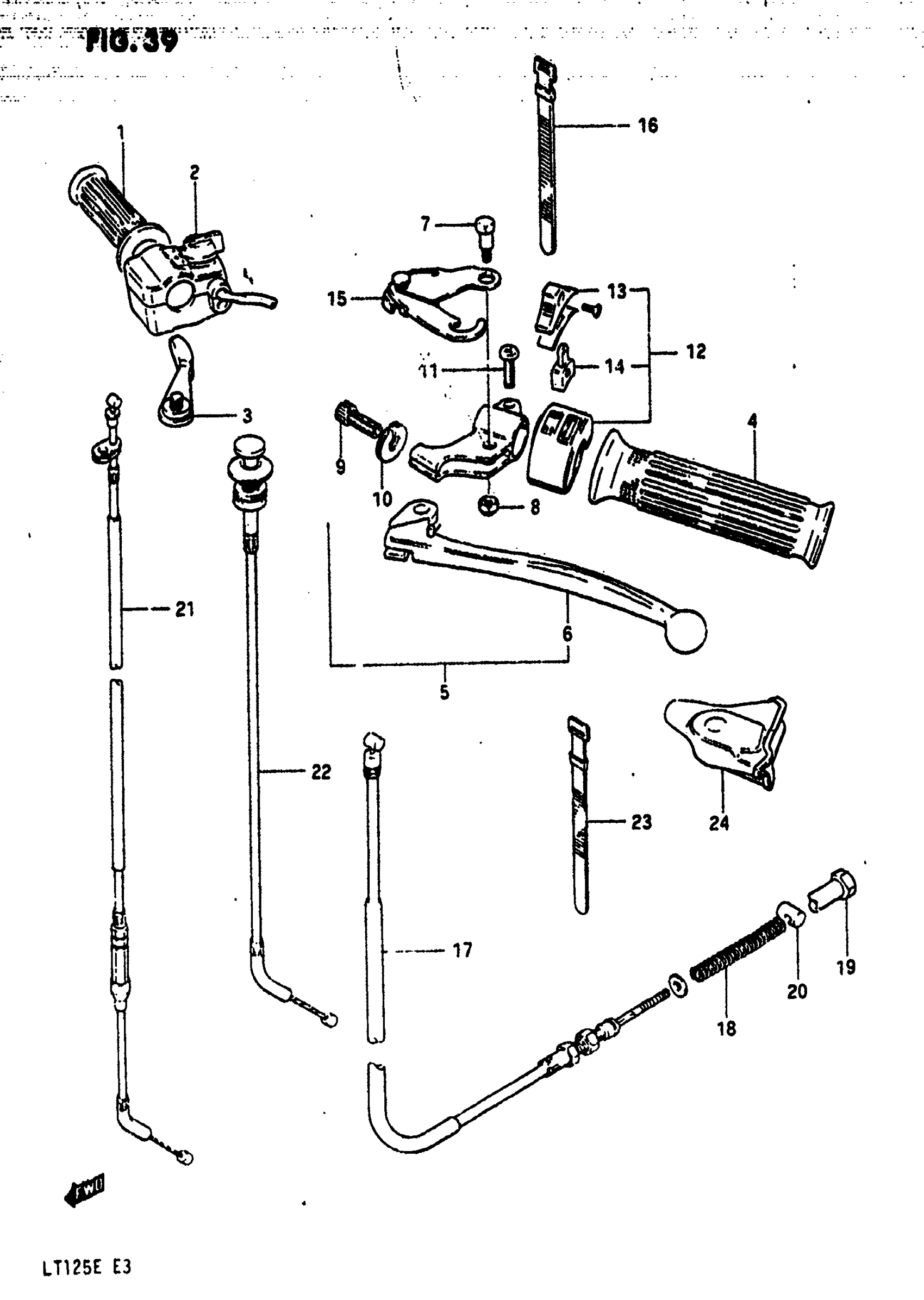

Suzuki LT125 (1984) HANDLE SWITCH - CONTROL CABLE (MODEL D) Diagram

#

Description
Price

1

GRIP This part replaces 57111-24200.

57211-24201

Unavailable

2

THROTTLE CASE ASSY | Includes Item(s) 3 This part replaces 57300-24300.

57100-24312

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 57151-24300.

57100-24810

Unavailable

4

GRIP This part replaces 57111-24200.

57211-24201

Unavailable

5

LEVER ASSY, REAR BRAKE | Includes Item(s) 6 - 11

57500-24200

Unavailable

6

LEVER,BRAKE This part replaces 57620-24200.

57620-29500

Unavailable

7

BOLT This part replaces 57431-24200.

57431-29502

$7.67

8

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

9

ADJUSTER, CABLE

57441-11010

$5.62

10

NUT, CABLE ADJUSTER

57442-11010

$2.79

11

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

12

SWITCH ASSY, LIGHTING | Includes Item(s) 13 - 14

37250-38200

Unavailable

13

KNOB

57617-28602

Unavailable

14

BLOCK, SLIDING

57680-28602

Unavailable

15

STOPPER, BRAKE LEVER

57790-18900

Unavailable

16

BAND

09407-12402

$3.04

17

CABLE, REAR BRAKE This part replaces 58510-18900.

58510-24430

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 09440-07034.

09440-07034-XC0

Unavailable

19

NUT This part replaces 09150-06008.

09150-06012

$3.37

20

PIN

09209-13006

$5.24

21

CABLE,THROTTLE This part replaces 58300-18900.

58300-24431

Unavailable

22

CABLE, STARTER This part replaces 58400-18900.

58400-18901

Unavailable

23

CLAMP, CABLE

09407-14401

$3.77

24

COVER, BRAKE DUST This part replaces 57541-29500.

57541-29501

$10.23
