1984 Suzuki LT125 Gear Shifting Diagram

← All diagrams

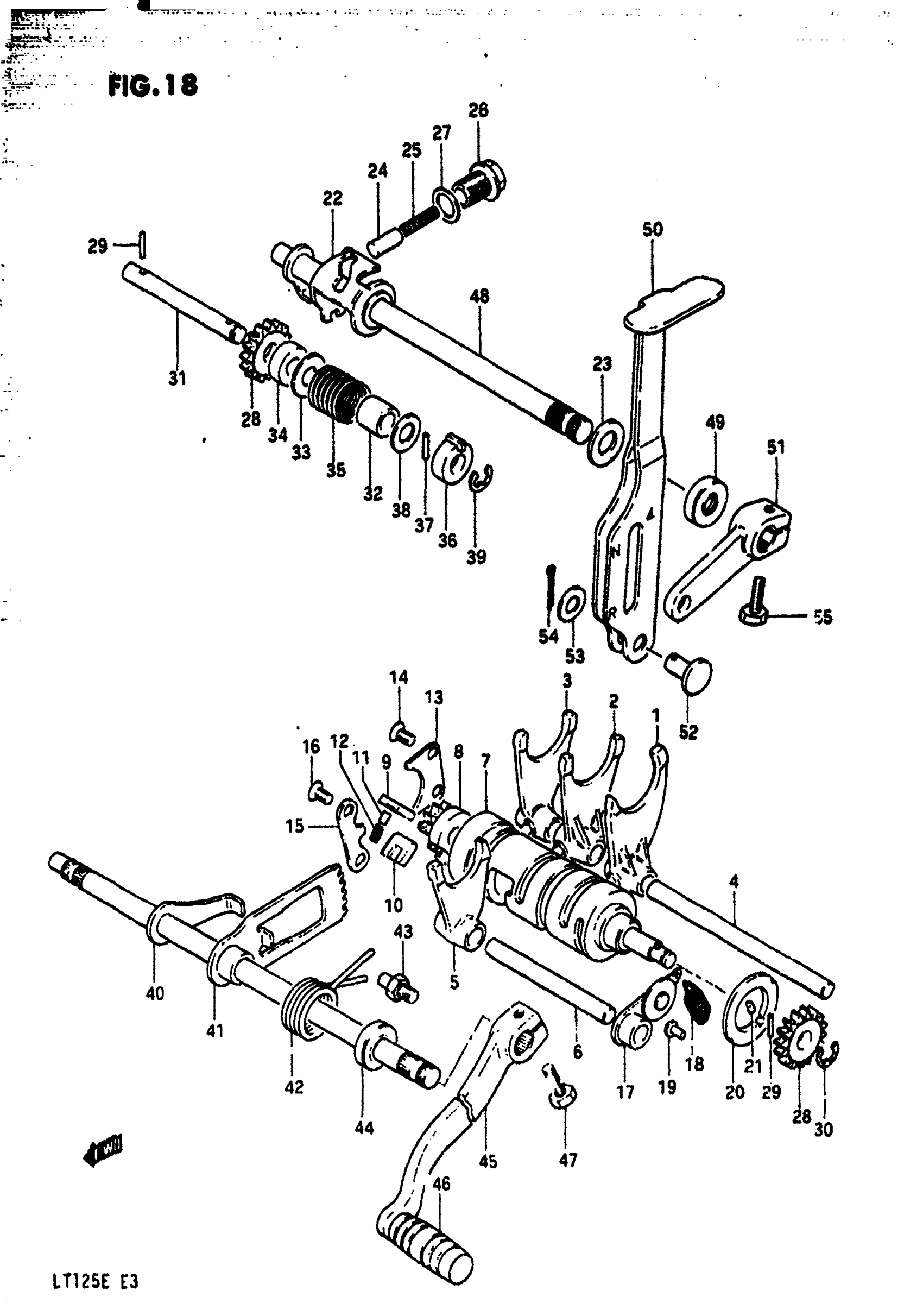

Find the part on the Gear Shifting diagram for your 1984 Suzuki LT125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Suzuki LT125 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING, NO.1

25211-24201

1
Out of stock

2

FORK, GEAR SHIFTING, NO.2

25221-24200

1
Out of stock

3

FORK, GEAR SHIFTING, NO.4 | SEE NOTE

25241-24201

1
Out of stock

4

SHAFT, NO.1

25411-18900

1
Out of stock

5

FORK, GEAR SHIFTING, NO.3

25231-24200

1
Out of stock

6

SHAFT, NO.2 This part replaces 25411-40000.

25411-14331

1
Out of stock

7

CAM, GEAR SHIFTING | SEE NOTE

25310-24204

1
Out of stock

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

1
Out of stock

9

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

1
Out of stock

10

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

1
Out of stock

11

PIN

09261-05003

2
Out of stock

12

SPRING

09440-04003

2
Out of stock

13

LIFTER, PAWL

25331-37400

1
Out of stock

14

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

15

GUIDE, CAM

25341-40001

1
Out of stock

16

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

17

STOPPER, CAM

25350-11300

1
Out of stock

18

SPRING

09443-10022

1
Out of stock

19

PIN This part replaces 09220-04001.

09223-04001

1
Out of stock

20

PLATE, STOPPER

25381-45000

1
Out of stock

21

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

22

CAM, GEAR SHIFTING, NO.2 | SEE NOTE

25320-24201

1
Out of stock

23

WASHER

08211-12223

1
Out of stock

24

STOPPER, CAM This part replaces 25351-11000.

25351-11010

1
Out of stock

25

SPRING

09440-05007

1
Out of stock

26

HOLDER, STOPPER

25352-11010

1

$7.41

In stock

27

GASKET

09168-14004

1
Out of stock

28

GEAR, GEAR POSITION INDICATOR

25362-18900

2
Out of stock

29

PIN

09261-03010

2
Out of stock

30

CIRCLIP This part replaces 08332-11068.

08332-1106A

1
Out of stock

31

SHAFT, GEAR POSITION INDICATOR

25363-24200

1
Out of stock

32

NO DESCRIPTION AVAILABLE This part replaces 09180-08085.

09180-08203

1
Out of stock

33

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

1
Out of stock

34

OIL SEAL

09284-08001

1
Out of stock

35

SPRING This part replaces 09440-17007.

09440-17007-XC0

1
Out of stock

36

INDICATOR, GEAR POSITION

25360-18900

1
Out of stock

37

PIN

09261-03010

1
Out of stock

38

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

39

CIRCLIP This part replaces 08332-11068.

08332-1106A

1
Out of stock

40

SHAFT, GEAR SHIFTING

25510-24301

1
Out of stock

41

GEAR, CAM DRIVE

25540-24200

1
Out of stock

42

SPRING This part replaces 09444-26018.

09444-26025

1
Out of stock

43

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

44

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

45

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 46 This part replaces 25600-24300.

25610-18A00

1
Out of stock

46

COVER This part replaces 25652-49000.

25652-20C00

1
Out of stock

47

BOLT This part replaces 09100-06091.

01500-06207

1
Out of stock

48

NO DESCRIPTION AVAILABLE This part replaces 25530-24200.

25530-24202

1
Out of stock

49

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

50

LEVER, GEAR SHIFTING NO.2 This part replaces 25620-24200.

25620-24202

1
Out of stock

51

ARM This part replaces 25520-24200.

25520-24201

1
Out of stock

52

PIN

09200-08025

1
Out of stock

53

WASHER

09181-08002

1
Out of stock

54

COTTER PIN

04111-20108

1
Out of stock

55

BOLT This part replaces 09100-06091.

01500-06207

1
Out of stock
