1984 Suzuki LT125 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1984 Suzuki LT125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

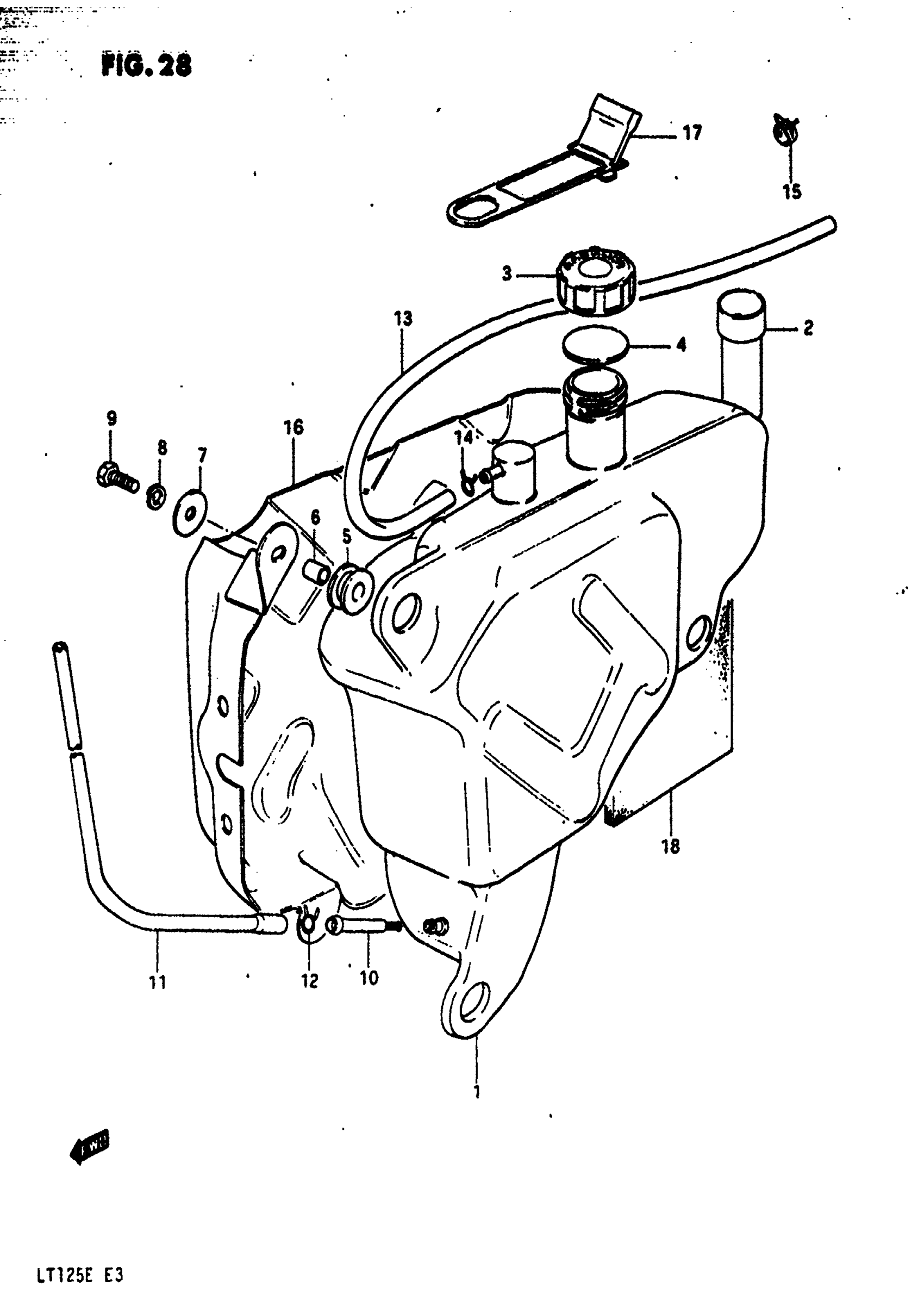

1984 Suzuki LT125 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

44111-24300

1
Out of stock

2

INLET, FUEL TANK

44117-24300

1
Out of stock

3

CAP, FUEL TANK | Includes Item(s) 4

44200-27820

1
Out of stock

4

GASKET

44248-24300

1
Out of stock

5

CUSHION

09320-12016

3
Out of stock

6

SPACER (6.2X12X14) This part replaces 09180-06088.

09180-06174

3
Out of stock

7

WASHER This part replaces 08322-21068.

08322-01067

3
Out of stock

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

3
Out of stock

9

BOLT This part replaces 01107-06258.

01500-06257

3
Out of stock

10

FILTER, FUEL

44322-27300

1
Out of stock

11

HOSE(5X8.2X600) This part replaces 09343-05096.

09359-50824-600

1
Out of stock

12

CLIP

09401-10402

1
Out of stock

13

HOSE, BREATHER

09343-05255

1
Out of stock

14

CLIP

09401-08402

1
Out of stock

15

CLIP, HOSE This part replaces 09401-06404.

09401-06405

1
Out of stock

16

GUARD, FUEL TANK

44570-24300

1
Out of stock

17

BAND, FUEL TANK

09462-00078

1
Out of stock

18

CUSHION, NO.1

44575-24300

1
Out of stock

18

CUSHION, NO.2

44576-24300

1
Out of stock

18

CUSHION, NO.3

44577-24300

1
Out of stock
