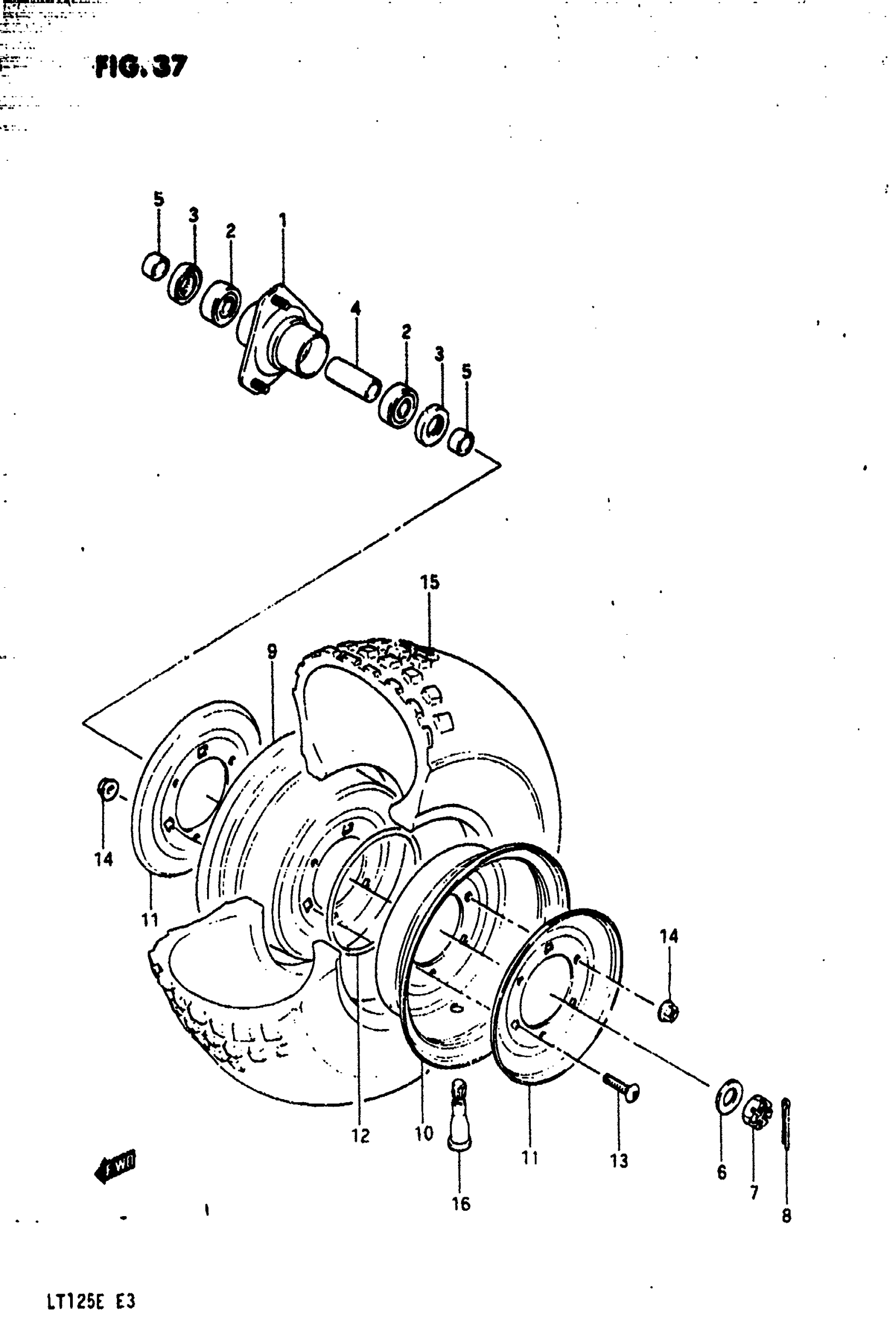

Suzuki LT125 (1984) FRONT WHEEL (MODEL D) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54110-18902.

54110-18903

Unavailable

2

BEARING

08120-62037

$21.05

3

DUST SEAL

09284-22002

$13.87

4

SPACER, FRONT HUB

54731-18900

Unavailable

5

SPACER, FRONT AXLE This part replaces 54741-18900.

54741-189A0

$6.64

6

WASHER This part replaces 08322-11168.

08322-01167

$2.10

7

NUT, HUB This part replaces 08314-41168.

08314-4016A

$3.79

8

PIN, REAR AXLE This part replaces 04111-40306.

04111-4030A

$1.49

9

NO DESCRIPTION AVAILABLE This part replaces 55312-18900-126.

55312-18901-126

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 55313-18900-126.

55313-18901-126

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 55317-18900-126.

55317-18901-126

Unavailable

12

GASKET, WHEEL RIM

55315-24200

Unavailable

13

BOLT

09107-08003

Unavailable

14

NUT (CHROME) This part replaces 08316-16086.

08316-10087

$2.26

15

TIRE (20x7.00-8) | DUNLOP

55100-18955

Unavailable

16

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25
