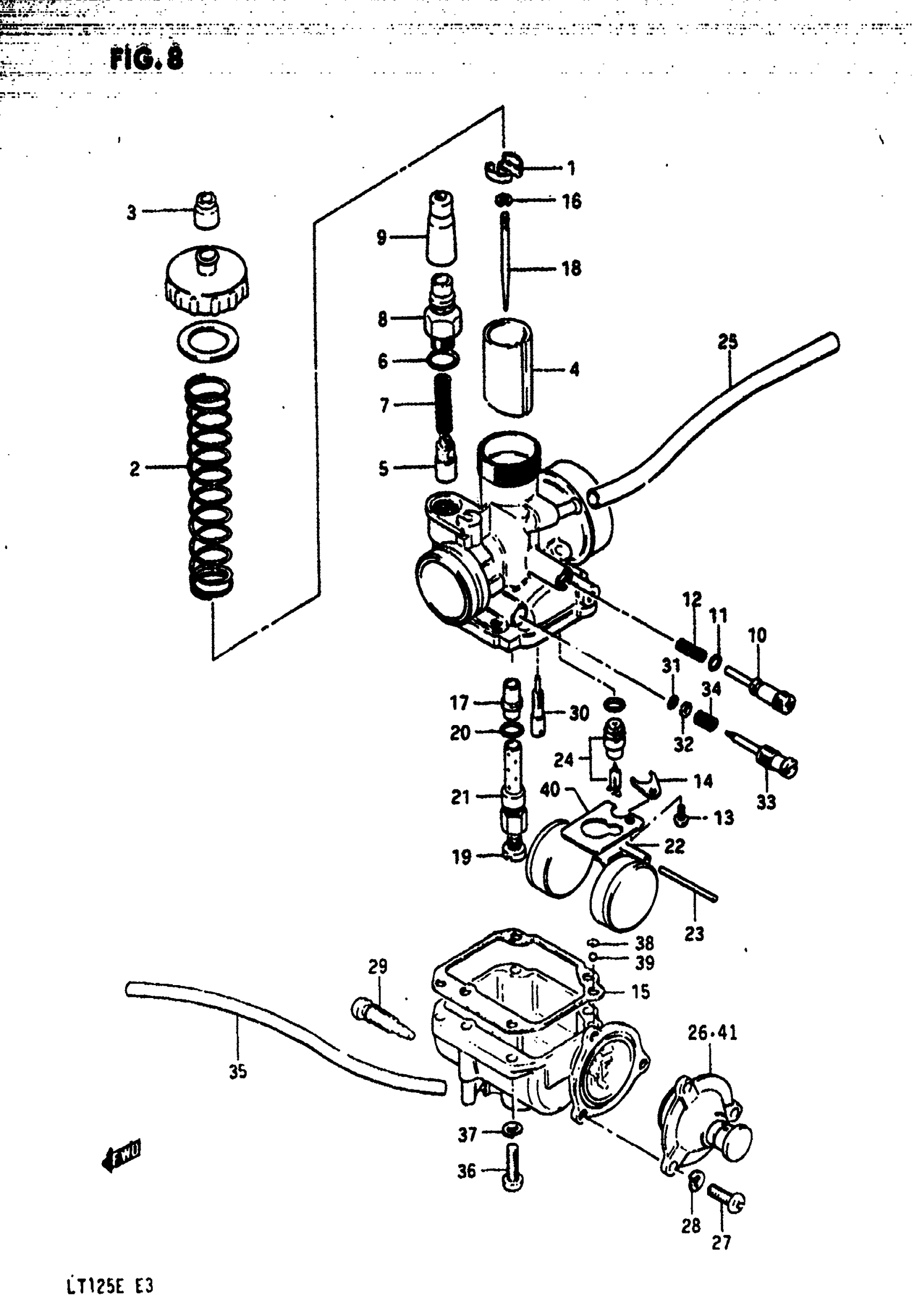

Suzuki LT125 (1984) CARBURETOR (MODEL D) Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 40 This part replaces 13200-18900.

13200-18912

Unavailable

1

PLATE, SPRING

13581-36212

$7.80

2

SPRING This part replaces 13573-18900.

13573-18901

$9.33

3

.CAP This part replaces 13681-04010.

13681-04011

$4.93

4

VALVE, THROTTLE This part replaces 13551-18900.

13551-18910

Unavailable

5

VALVE, STARTER

13411-01010

$18.43

6

O RING, CAP

13278-02330

$2.82

7

SPRING

13417-01010

$4.62

8

CAP, STARTER VALVE

13681-33010

$9.32

9

CAP, RUBBER

13418-02330

$11.38

10

ADJUSTER This part replaces 13267-05320.

13267-36600

$12.17

11

O RING

13295-33010

$4.48

12

SPRING This part replaces 13268-95110.

13268-35010

$4.48

13

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

14

PLATE, NEEDLE VALVE

13373-46710

$6.17

15

GASKET

13251-18900

Unavailable

16

CLIP, NEEDLE This part replaces 13415-47070.

13394-10010

$5.45

17

JET, NEEDLE (0~4)

09494-00388

Unavailable

18

NEEDLE, JET (4JR45-4) This part replaces 13383-18900.

13383-18A01

Unavailable

19

JET, MAIN (100) This part replaces 09491-20003.

09491-20017

$9.69

20

.O RING This part replaces 13246-43010.

13246-43011

$4.34

21

PIPE, BREADER

13385-47030

Unavailable

22

FLOAT This part replaces 13252-18900.

13250-05230

$26.91

23

.PIN, FLOAT

13254-01010

$3.62

24

VALVE ASSY, NEEDLE This part replaces 13370-18900.

13370-02C00

$73.80

25

HOSE,5X10X600 This part replaces 13684-37100.

44421-13ER0

$10.06

26

PRIMING SET | DIAPHRAGM ONLY ALSO SEE REF #41 This part replaces 13230-18900.

13234-18910

$66.46

27

SCREW This part replaces 02112-04108.

02112-04107

$1.55

28

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

29

SCREW This part replaces 13247-18900.

13247-24500

Unavailable

30

JET, PILOT (20) This part replaces 09492-20007.

09492-20009

$14.85

31

O-RING This part replaces 13278-44080.

13295-29901

$4.34

32

WASHER This part replaces 13277-44080.

13291-29900

$1.98

33

SCREW, PILOT (2 7/8) This part replaces 13269-44200.

13279-47070

$13.36

34

.SPRING (NT:45)

13268-47070

$4.34

35

.HOSE (3X7X600) This part replaces 13684-18900.

09355-30001-600

$8.56

36

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

37

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

38

CLIP

13232-18900

Unavailable

39

BALL,VALVE This part replaces 13596-18900.

13322-84000

Unavailable

40

PLATE

13259-18900

$7.53

41

PRIMING SET

13234-18910

$66.46
