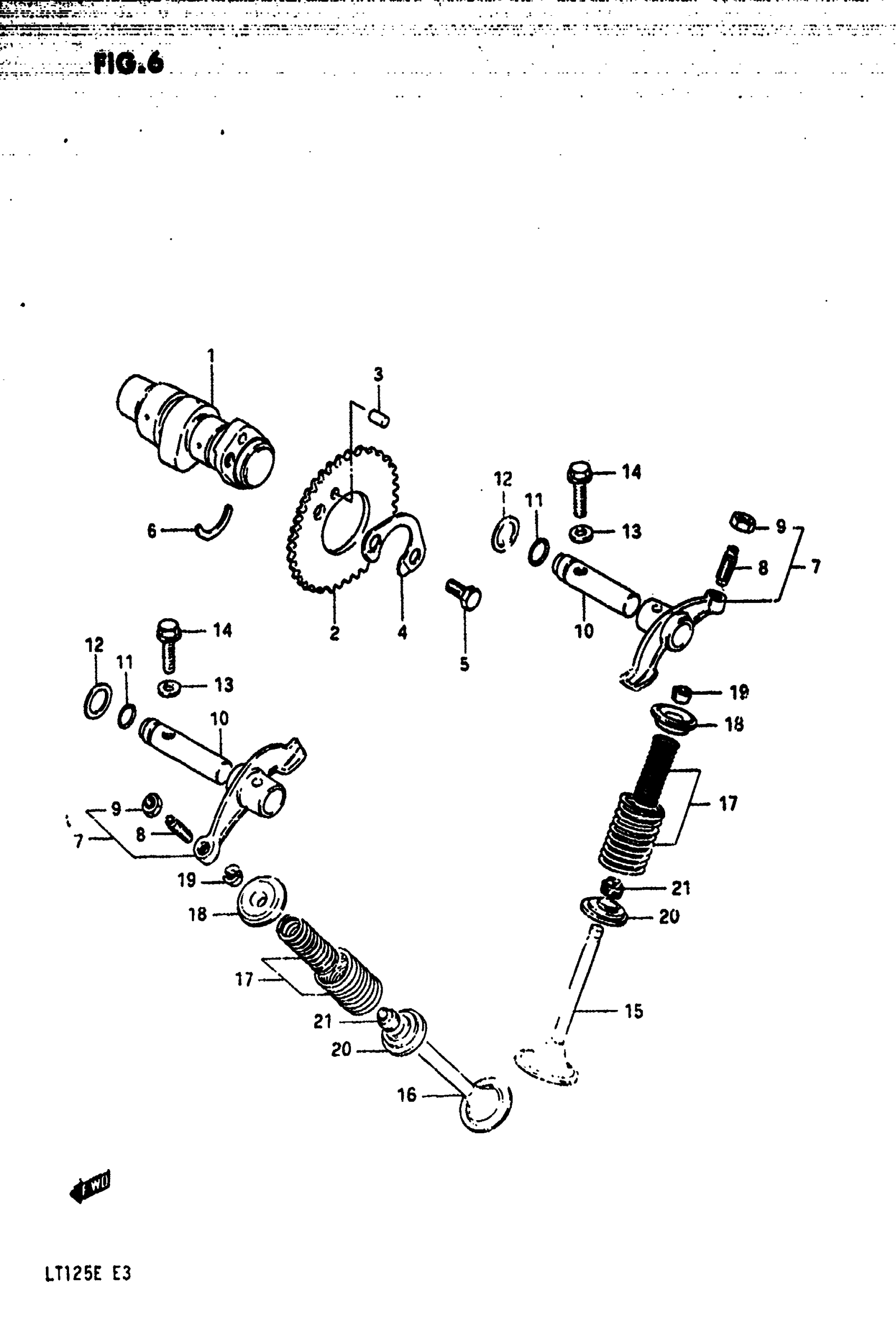

Suzuki LT125 (1984) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-01400

Unavailable

2

SPROCKET, CAMSHAFT (NT:32) | MODEL D This part replaces 12741-05200.

12741-05201

$22.98

2

SPROCKET, CAMSHAFT (NT:32) | MODEL E

12741-05201

$22.98

3

PIN

09261-05005

$1.49

4

WASHER, SPROCKET This part replaces 12747-05200.

12747-05202

$2.51

5

BOLT

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM ASSY, VALVE ROCKER | Includes Item(s) 8 - 9 This part replaces 12840-05200.

12850-25C00

$43.16

8

.SCREW, TAPPET ADJUSTING This part replaces 12842-32410.

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

SHAFT, VALVE ROCKER ARM | MODEL D This part replaces 12861-05200.

12861-05201

$19.72

10

SHAFT, VALVE ROCKER ARM | MODEL E

12861-05201

$19.72

11

.O RING (D:1.9,ID:8.6) This part replaces 09280-09004.

09280-09005

$3.70

12

WASHER

09164-12021

$2.03

13

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

14

BOLT | MODEL D This part replaces 01517-06255.

01550-0625A

$1.97

14

BOLT | MODEL E This part replaces 01517-06258.

01550-06257

$2.30

15

VALVE, INTAKE (00:30) | MODEL D This part replaces 12911-05210.

12911-05211

Unavailable

15

VALVE, INTAKE (OD:30) | MODEL E

12911-05211

Unavailable

16

VLEVE, EXHAUST (00:26) | MODEL D This part replaces 12912-05210.

12912-05211

Unavailable

16

VALVE, EXHAUST (OD:26) | MODEL E

12912-05211

Unavailable

17

VALVE SPRING SET

12920-05210

$13.75

18

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

19

COTTER, VALVE

12932-49200

$2.28

20

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

$5.84

21

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
