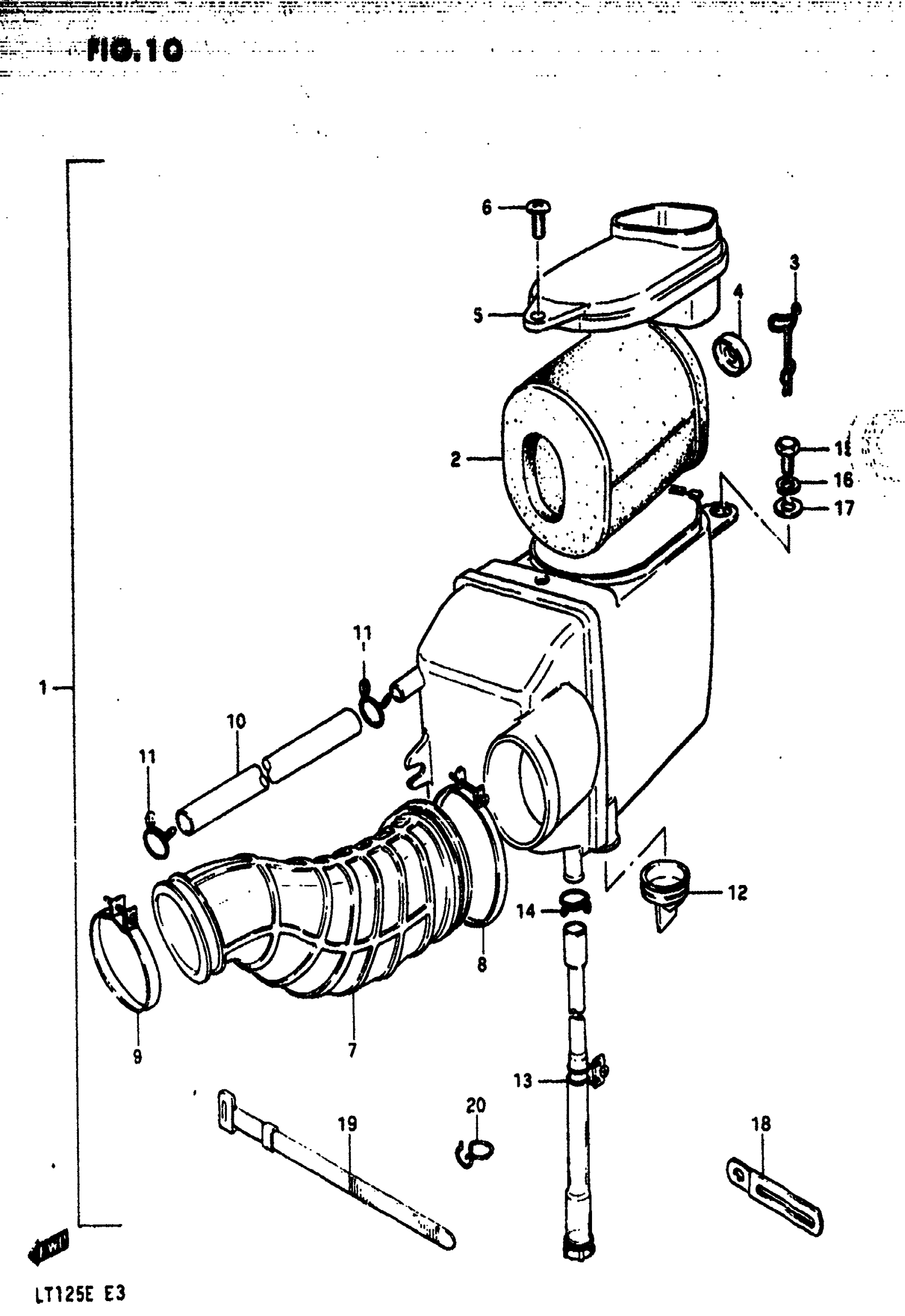

Suzuki LT125 (1984) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL D

13700-18900

Unavailable

1

CLEANER ASSY, AIR | MODEL E; Includes Item(s) 2 - 14 This part replaces 13700-18910.

13700-18923

$60.46

2

FILTER This part replaces 13781-18900.

13780-18920

Unavailable

3

SNAP PIN

13823-20400

$3.00

4

WASHER

13796-20400

$2.99

5

CAP This part replaces 13740-18900.

13740-18920

Unavailable

6

SCREW

02142-06167

$1.49

7

HOSE, OUTLET

13881-18900

Unavailable

8

CLAMP This part replaces 09402-70306.

09402-70306-XC0

$5.55

9

CLAMP This part replaces 09402-48206.

09402-48208

$4.64

10

HOSE, BREATHER, L:270 | MODEL D

13851-18900

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL E This part replaces 13851-18910.

13850-18911

Unavailable

11

CLIP This part replaces 13828-37300.

09401-16401

$3.14

12

HOSE, DRAIN (1)

13873-18900

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 13870-00220.

13870-18910

Unavailable

14

CLIP

09401-14301

$2.35

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

19

CLAMP, CABURETOR AIR VENT | MODEL D

09407-18401

$2.07

20

CLIP, DRAIN HOSE This part replaces 13821-18901.

13821-18902

Unavailable
