2016 Suzuki LT-Z90L6 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2016 Suzuki LT-Z90L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

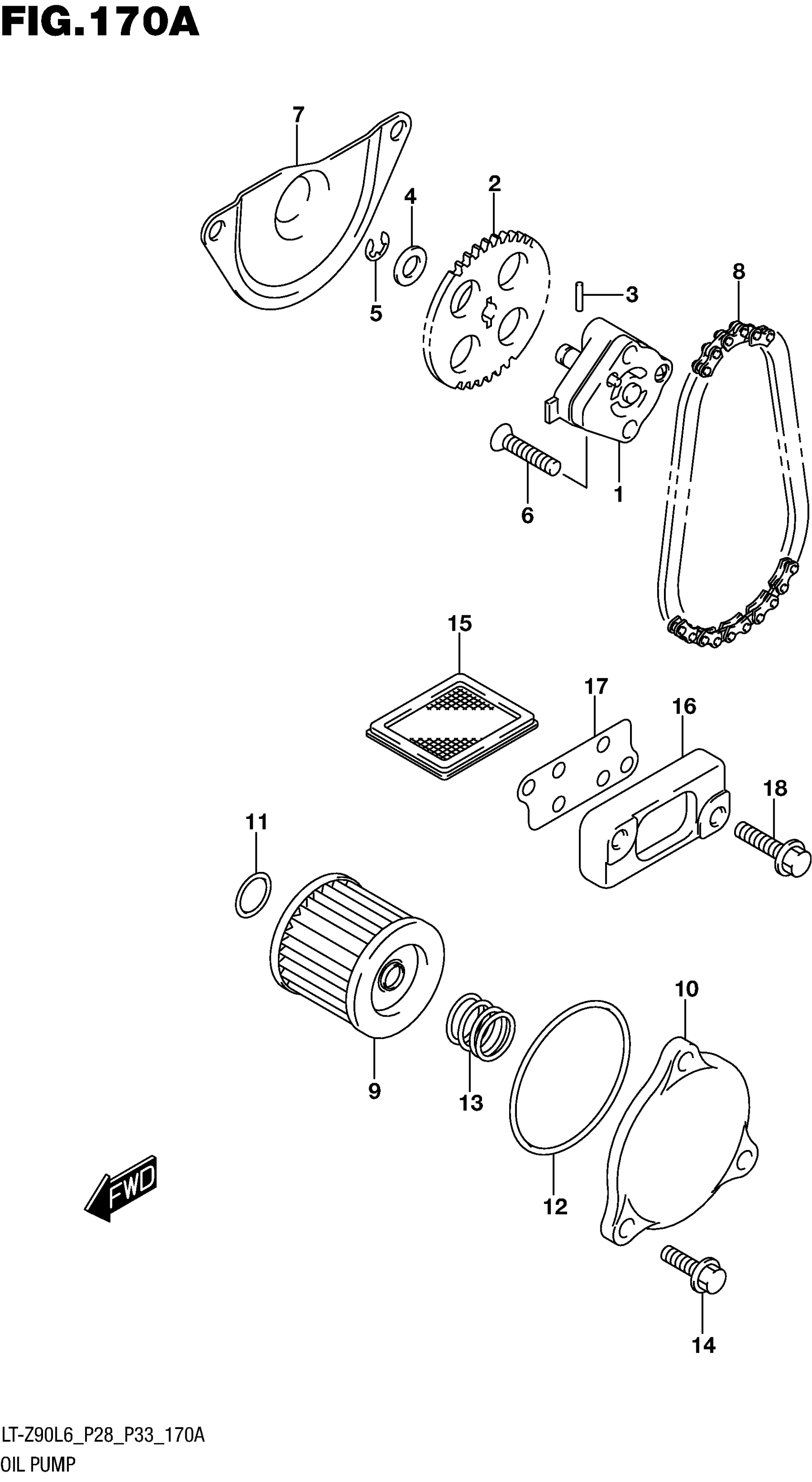

2016 Suzuki LT-Z90L6 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,ENG OIL

16400-33G40

1
Out of stock

2

SPROCKET,OIL PUMP DRIVEN (NT:

16331-33G40

1
Out of stock

3

PIN

16421-20E00

1
Out of stock

4

WASHER

16422-20E00

1
Out of stock

5

CIRCLIP

16423-20E00

1
Out of stock

6

SCREW

02122-0625B

2
Out of stock

7

COVER,OIL PUMP

16422-33G00

1
Out of stock

8

CHAIN ASSY,OIL PUMP DRIVE

16310-33G40

1
Out of stock

9

FILTER, ENGINE OIL

16510-05240

1
Out of stock

10

CAP,OIL FILTER

16512-09G00

1
Out of stock

11

O RING (D:1.9,ID:13)

09280-13004

1
Out of stock

12

O RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

13

SPRING

09440-18002

1
Out of stock

14

BOLT

01547-0616B

3
Out of stock

15

STRAINER,ENGINE OIL

16520-09410

1
Out of stock

16

CAP, OIL STRAINER

16523-20E00

1
Out of stock

17

GASKET, OIL STRAINER CAP

16524-20E00

1
Out of stock

18

BOLT

01547-0625B

2
Out of stock
