2016 Suzuki LT-Z90L6 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2016 Suzuki LT-Z90L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

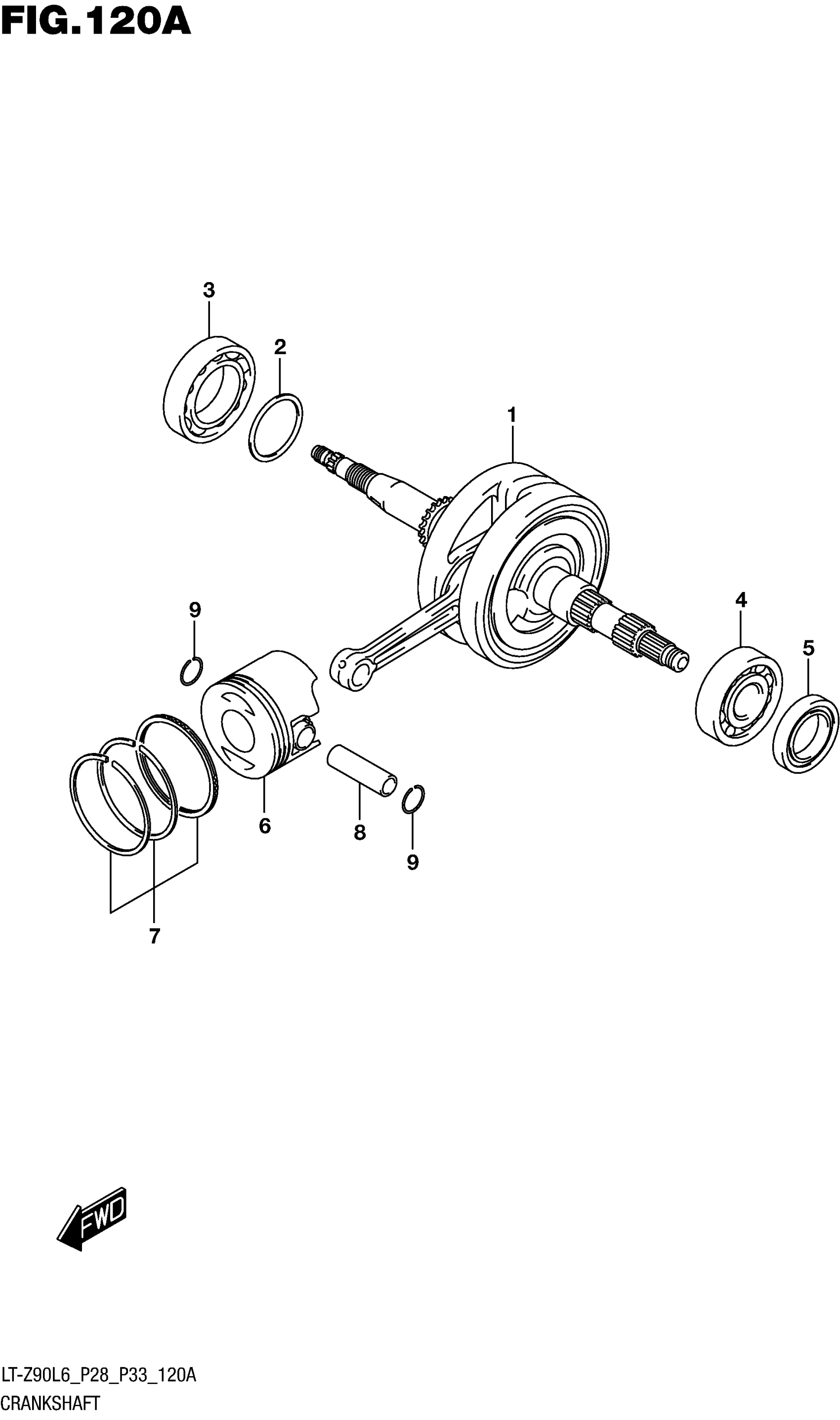

2016 Suzuki LT-Z90L6 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-08H02

1
Out of stock

2-1

SHIM (35X42X0.50)

09181-35101

1
Out of stock

2-2

SHIM,35X42X0.55 (35X42X0.55)

09181-35025

1
Out of stock

2-3

SHIM,35X42X0.6 (35X42X0.6)

09181-35103

1
Out of stock

2-4

SHIM,35X42X0.65 (35X42X0.65)

09181-35026

1
Out of stock

2-5

SHIM,35X42X0.7 (35X42X0.7)

09181-35104

1
Out of stock

2-6

SHIM,35X42X0.75 (35X42X0.75)

09181-35105

1
Out of stock

2-7

SHIM (35X42X0.8)

09181-35106

1
Out of stock

2-8

SHIM (35X42X0.85)

09181-35107

1
Out of stock

2-9

SHIM (35X42X0.9)

09181-35108

1
Out of stock

2-10

SHIM,35X42X0.95 (35X42X0.95)

09181-35109

1
Out of stock

2-11

SHIM (35X42X1)

09181-35110

1
Out of stock

2-12

SHIM,35X42X1.05 (35X42X1.05)

09181-35113

1
Out of stock

2-13

SHIM,35X42X1.1 (35X42X1.1)

09181-35116

1
Out of stock

2-14

SHIM (35X42X1.15)

09181-35118

—
Out of stock

2-15

SHIM,35X42X1.2 (35X42X1.2)

09181-35120

1
Out of stock

2-16

SHIM,35X42X1.25 (35X42X1.25)

09181-35123

1
Out of stock

2-17

SHIM (35X42X1.30)

09181-35125

—
Out of stock

3

BEARING (35X62X14)

09262-35063

1
Out of stock

4

BEARING (25X52X15)

09262-25122

1
Out of stock

5

OIL SEAL (25X42X6)

09283-25100

1
Out of stock

6

PISTON

12111-08H00-0F0

1
Out of stock

7

RING SET,PISTON

12140-08H00

1
Out of stock

8

PIN,PISTON

12151-08H00

1
Out of stock

9

RING

09381-14001

2
Out of stock
← Crankcase Cover Cylinder →
