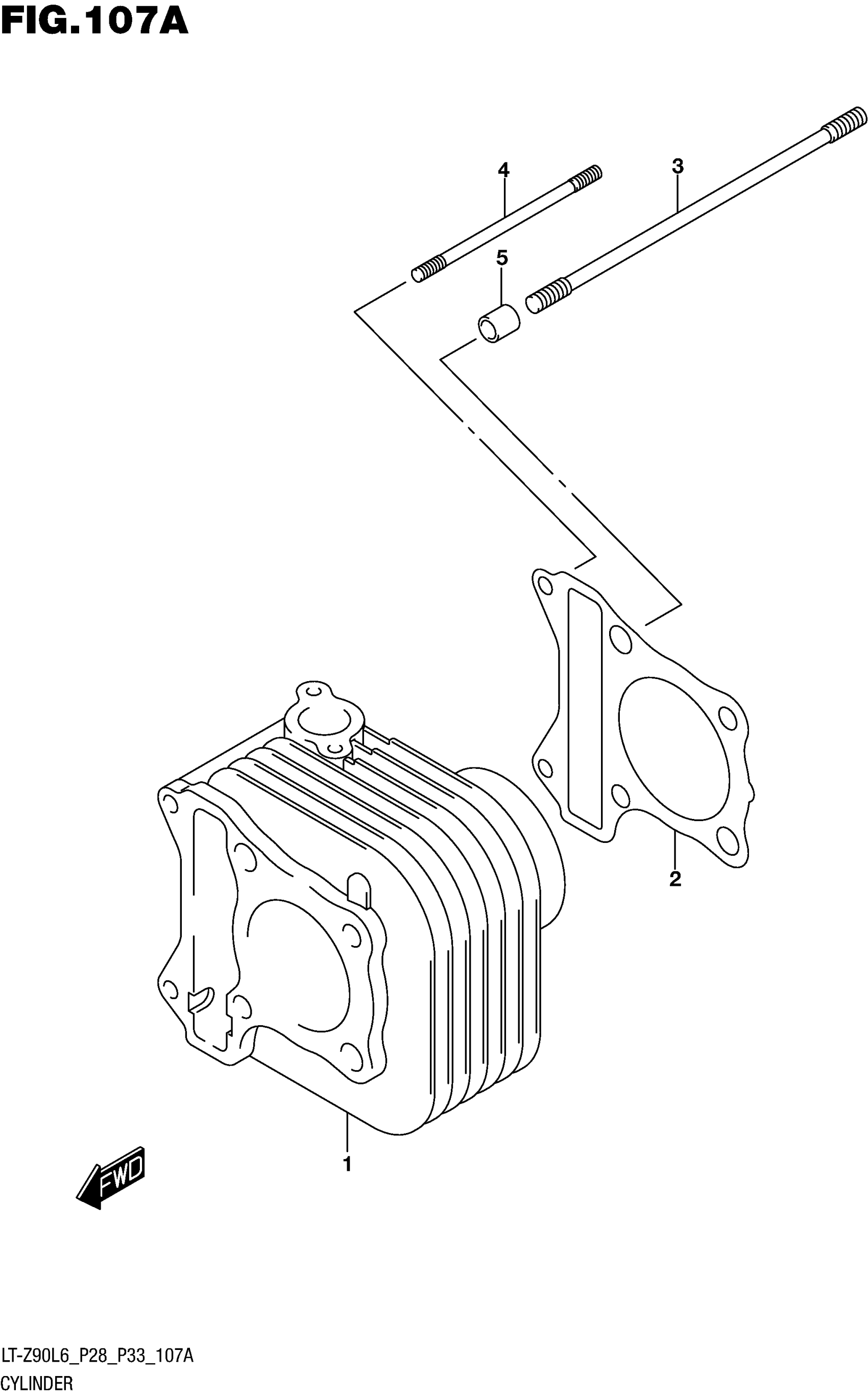

Find the part on the Cylinder diagram for your 2016 Suzuki LT-Z90L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LT-Z90L6 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11211-08H00-0F0

1
Out of stock

2

GASKET

11241-33G00

1
Out of stock

3

STUD BOLT (L:185)

09108-08272

4
Out of stock

4

STUD BOLT

01421-0695B

2
Out of stock

5

PIN

04211-11129

2
Out of stock
