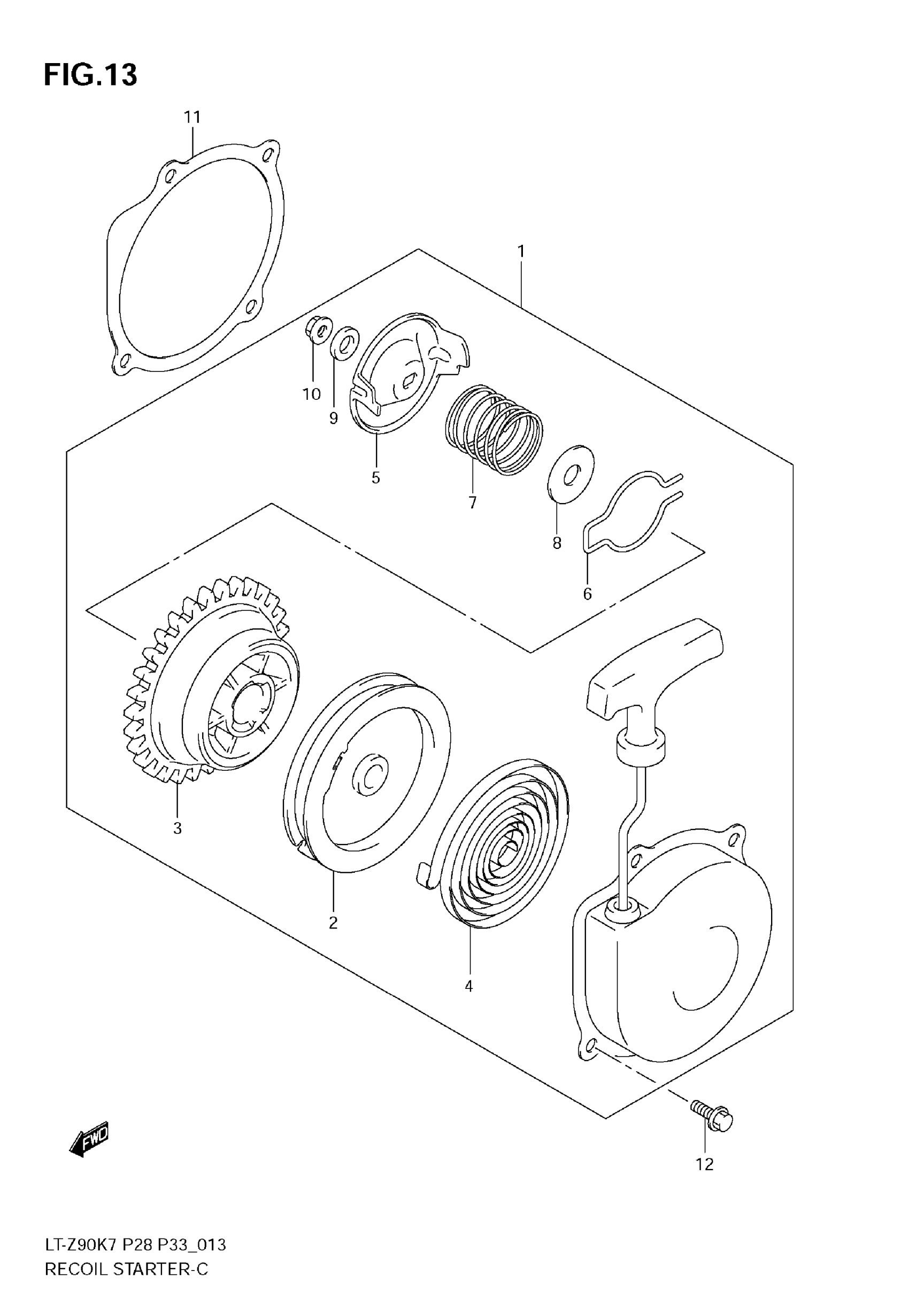

Suzuki LT-Z90 (2009) RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY,RECOIL | Includes Item(s) 2 - 10 This part replaces 18100-08H00.

18100-08H01

$289.27

2

REEL

18121-08H00

$38.05

3

GEAR

18131-08H00

$38.16

4

SPRING, SPIRAL

18142-40B00

$27.55

5

RETAINER

18151-08H00

$31.43

6

SPRING

18153-40B00

$10.17

7

SPRING, RETURN

18161-40B00

$19.60

8

WASHER

09160-10035

$1.80

9

WASHER

09160-08059

$1.70

10

NUT

18334-40B00

$4.90

11

GASKET

18299-08H00

$15.85

12

BOLT

09103-06236

$2.71
