2009 Suzuki LT-Z90 Air Cleaner Diagram

← All diagrams

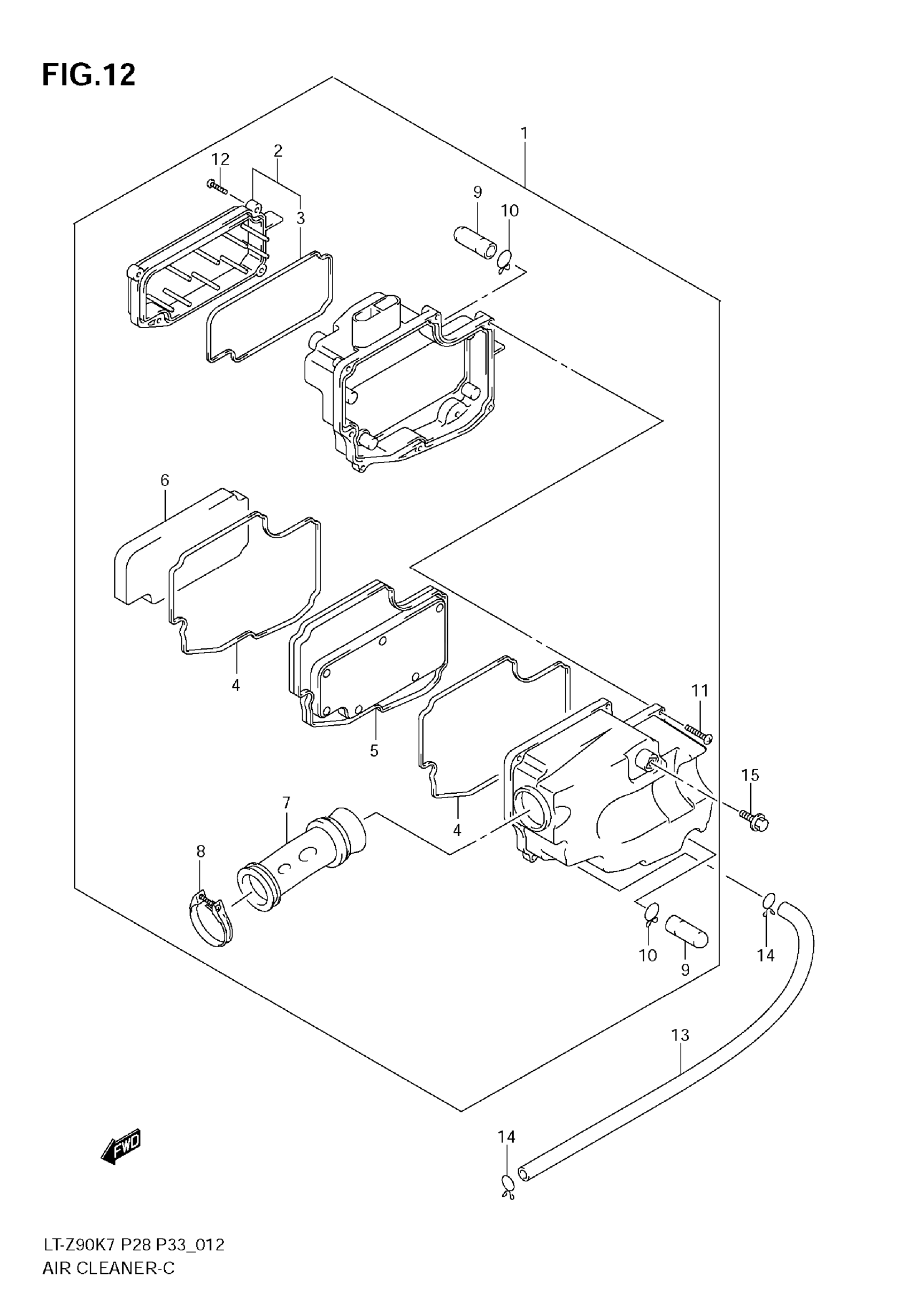

Find the part on the Air Cleaner diagram for your 2009 Suzuki LT-Z90, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-Z90 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$327.60

In stock

2

CAP

13740-08H00

1

$45.70

In stock

3

GASKET

13746-08H00

1

$16.10

In stock

4

GASKET

13756-08H00

2

$16.67

In stock

5

CASE, SEPARATOR

13723-08H00

1
Out of stock

6

FILTER

13781-08H00

1

$15.38

In stock

7

TUBE, OUTLET

13881-08H00

1

$60.18

In stock

8

CLAMP

09402-42208

1

$7.48

In stock

9

PLUG, DRAIN

13871-08H00

2

$9.08

In stock

10

CLIP

09401-14301

2

$2.50

In stock

11

7

$2.35

In stock

12

4

$1.96

In stock

13

HOSE,BREATHER

13853-08H00

1
Out of stock

14

CLIP

09401-14301

2

$2.50

In stock

15

BOLT

01550-0612B

2
Out of stock
