2009 Suzuki LT-Z90 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2009 Suzuki LT-Z90, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

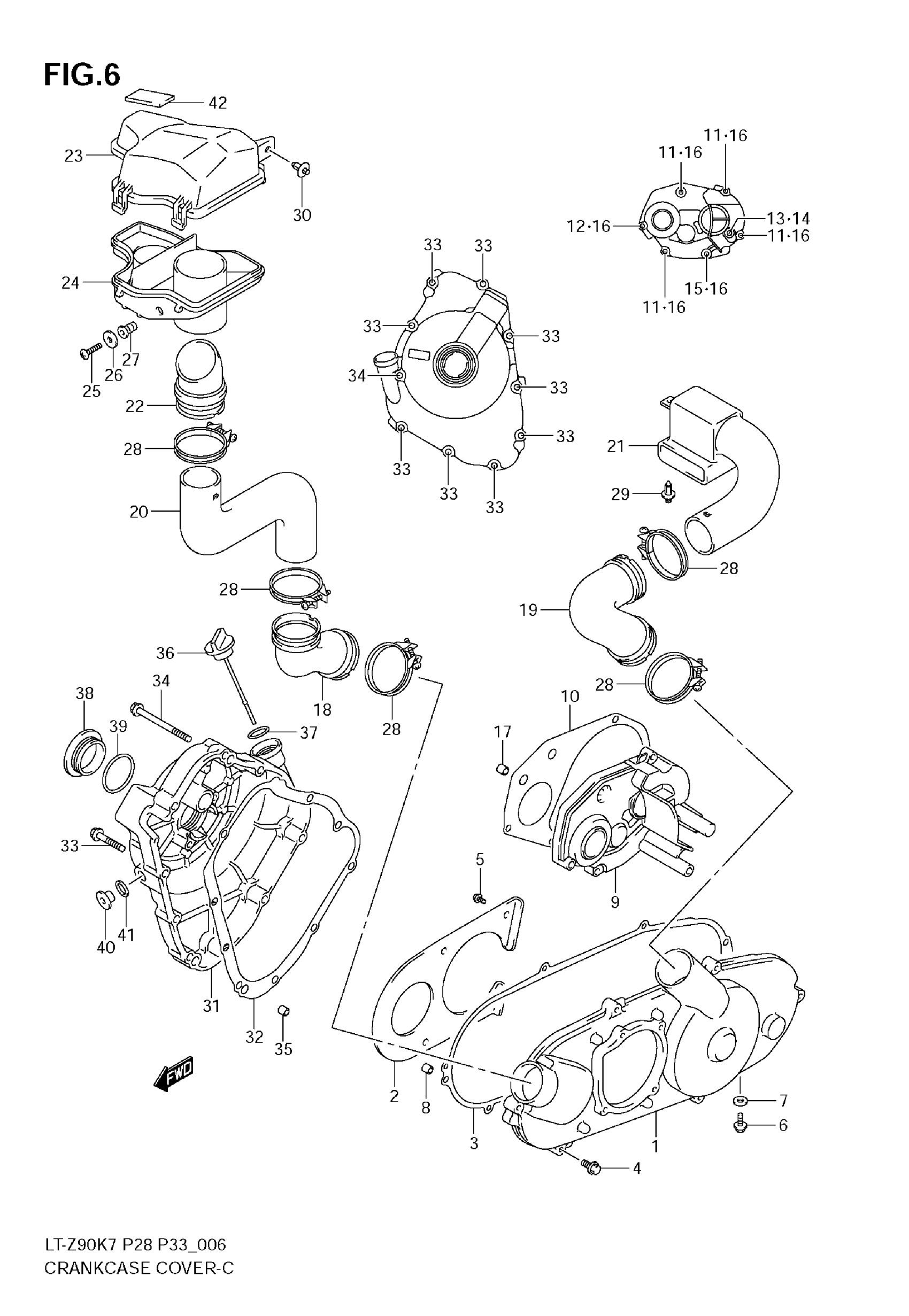

2009 Suzuki LT-Z90 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,CLUTCH

11341-08H00

1
Out of stock

2

PLATE,CLUTCH COVER AIR INTAKE

11346-08H00

1
Out of stock

3

GASKET

11482-08H00

1
Out of stock

4

BOLT

01547-0625B

6
Out of stock

5

BOLT

02112-0510B

5
Out of stock

6

PLUG, WATER DRAIN

01550-0612B

1
Out of stock

7

GASKET

09168-06018

1
Out of stock

8

PIN (6.2X8X11)

09206-08001

2
Out of stock

9

COVER, GEAR BOX

11431-33G40

1
Out of stock

10

GASKET, GEAR BOX COVER

11484-33G40

1
Out of stock

11

BOLT

11432-08H00

4
Out of stock

12

BOLT

11433-08H00

1
Out of stock

13

BOLT, LEVEL

01550-0812B

1
Out of stock

14

GASKET (8.2X14X1)

09168-08016

1
Out of stock

15

BOLT, DRAIN

01547-0695B

1
Out of stock

16

GASKET (6.2X13X1.2)

09168-06018

6
Out of stock

17

PIN (6.2X8X11)

09206-08001

2
Out of stock

18

CONNECTOR,CLG DUCT FR NO.1

11385-08H00

1
Out of stock

19

CONNECTOR,CLG DUCT RR

11386-08H00

1
Out of stock

20

DUCT,BELT CLG FR

11387-08H00

1
Out of stock

21

DUCT,BELT CLG RR

11398-08H00

1
Out of stock

22

CONNECTOR,CLG DUCT FR NO.2

11388-08H00

1
Out of stock

23

BOX,INDUCTION UPPER

11393-08H00

1
Out of stock

24

BOX,INDUCTION LOWER

11394-08H00

1
Out of stock

25

SCREW

02142-0520B

1
Out of stock

26

WASHER

09160-05046

1
Out of stock

27

NUT

09159-05019

1
Out of stock

28

CLAMP

09402-50208

5
Out of stock

29

CLIP

09409-06314-5PK

1
Out of stock

30

CLIP

09409-07333

1
Out of stock

31

COVER,MAGNETO

11351-08H00

1
Out of stock

32

GASKET

11483-33G40

1
Out of stock

33

BOLT

01547-0630B

9
Out of stock

34

BOLT

01547-0665B

1
Out of stock

35

PIN (6.2X8X11)

09206-08001

2
Out of stock

36

GAUGE,OIL LEVEL

11971-08H00

1
Out of stock

37

O RING

09280-17003

1
Out of stock

38

PLUG, CRANKSHAFT HOLE

09259-36016-20H

1
Out of stock

39

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

40

PLUG, TDC

09248-12007

1
Out of stock

41

GASKET

09168-12002

1
Out of stock

42

CUSHION, REAR FENDER REAR This part replaces 33652-08420.

33651-37000

1
Out of stock
