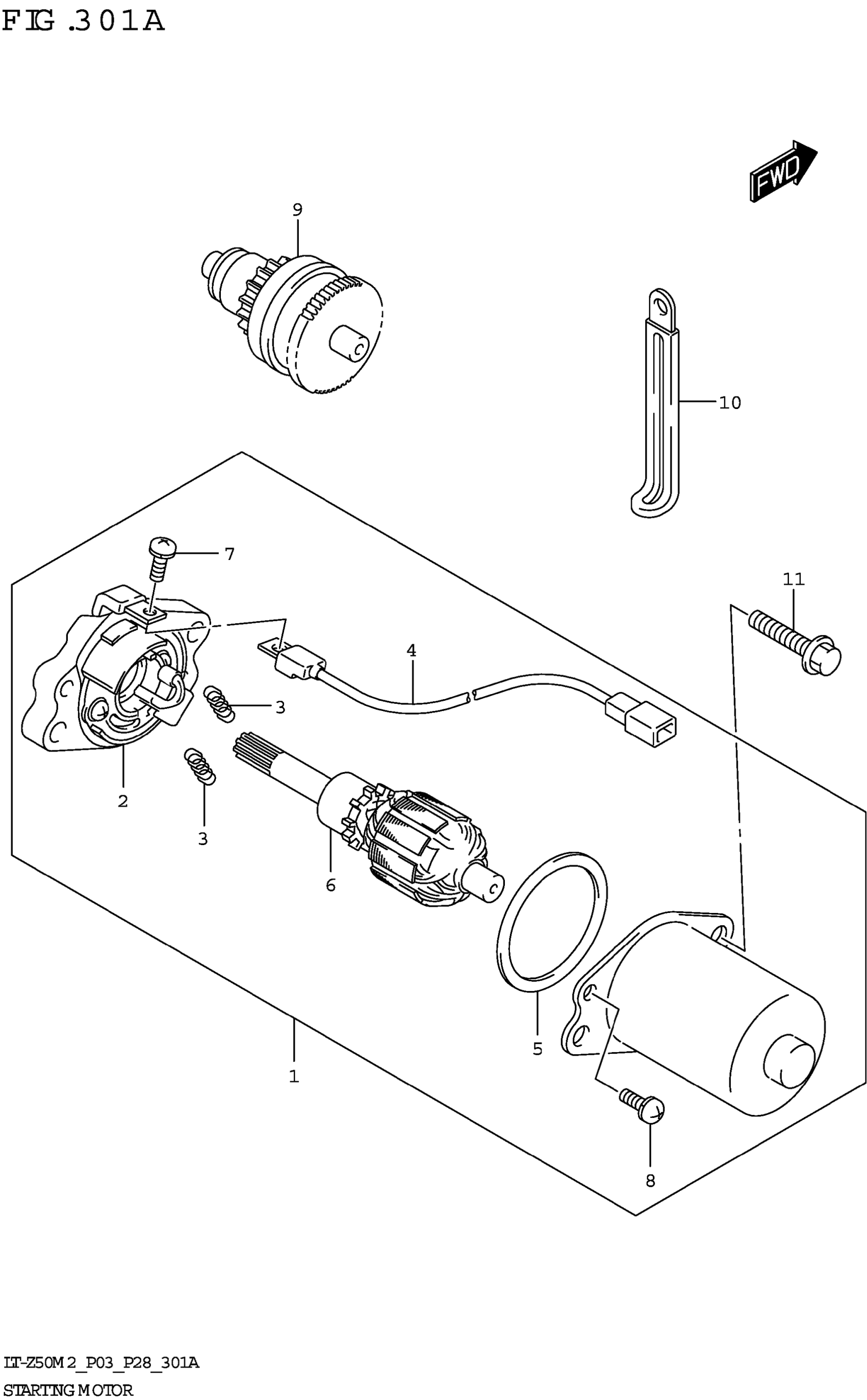

Suzuki LT-Z50M2 (2022) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING

31100-22G00

$390.70

2

.HOLDER ASSY,BRUSH

31130-37B01

Unavailable

3

.SPRING,BRUSH

31135-47A00

Unavailable

4

.WIRE,LEAD

31142-22G00

Unavailable

5

.GASKET

31157-03A00

$10.55

6

.ARMATURE ASSY

31311-37B01

Unavailable

7

SCREW This part replaces 02112-34063.

02112-3406A

$2.50

8

SCREW This part replaces 02112-34103.

02112-3410A

$2.04

9

PINION ASSY,STARTING MOTOR

31370-22G00

$200.33

10

CLAMP (L:80)

09404-06030

Unavailable

11

BOLT

01547-0625B

$2.43
