2022 Suzuki LT-Z50M2 Reflector Diagram

← All diagrams

Find the part on the Reflector diagram for your 2022 Suzuki LT-Z50M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

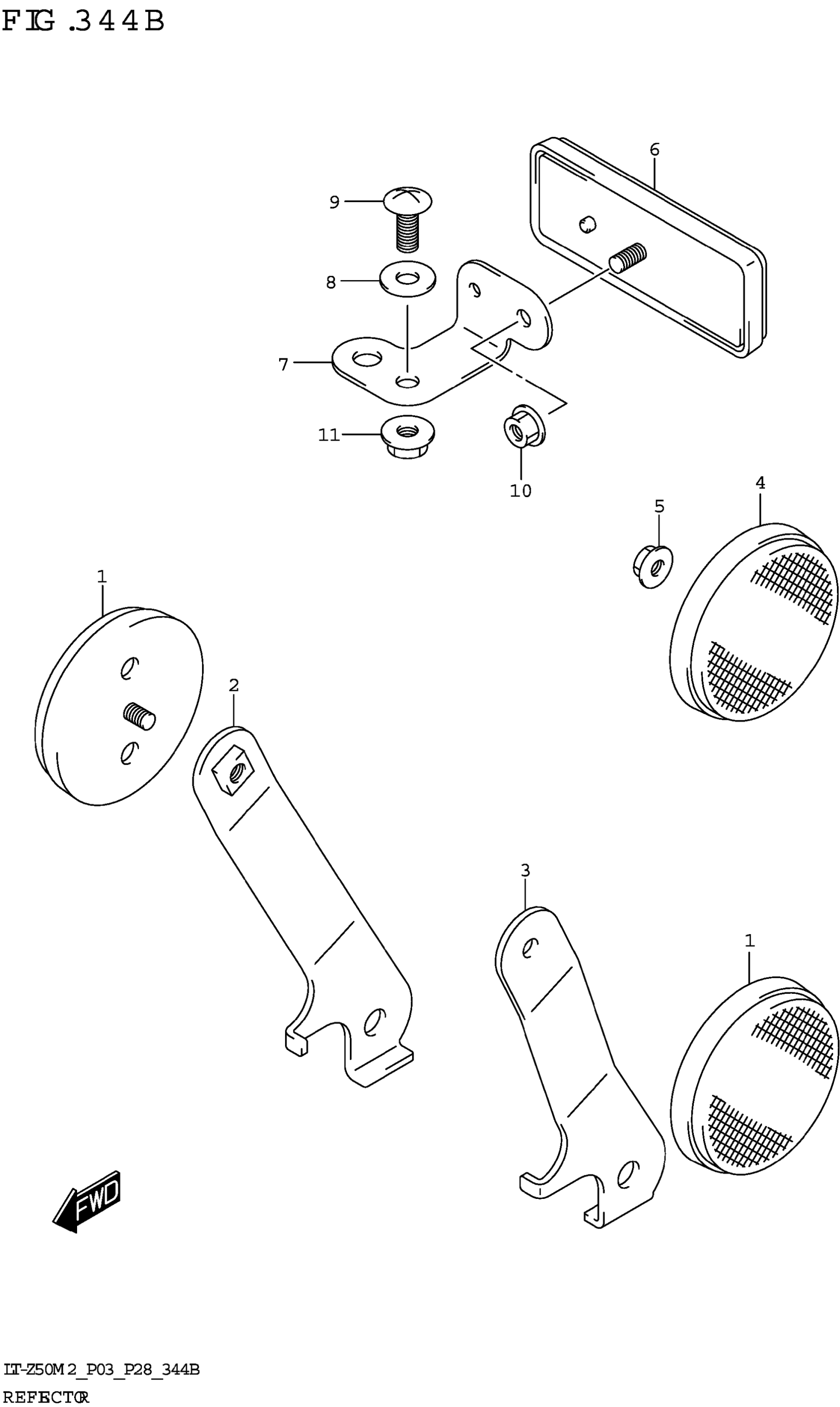

2022 Suzuki LT-Z50M2 Reflector Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

2

BRACKET,FRONT SIDE REFLECTOR,

35956-43F10

—
Out of stock

3

BRACKET,FRONT SIDE REFLECTOR,

35957-43F10

—
Out of stock

4

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

5

NUT

08316-1005B

2
Out of stock

6

REFLECTOR ASSY,RR

35970-07F01

1
Out of stock

7

BRACKET,REAR RR

35974-43G00

1
Out of stock

8

WASHER (6.5X16X1.2)

09160-06153

1
Out of stock

9

SCREW

02142-0616B

1
Out of stock

10

NUT

08316-1005B

1
Out of stock

11

NUT

08316-1006B

1
Out of stock
