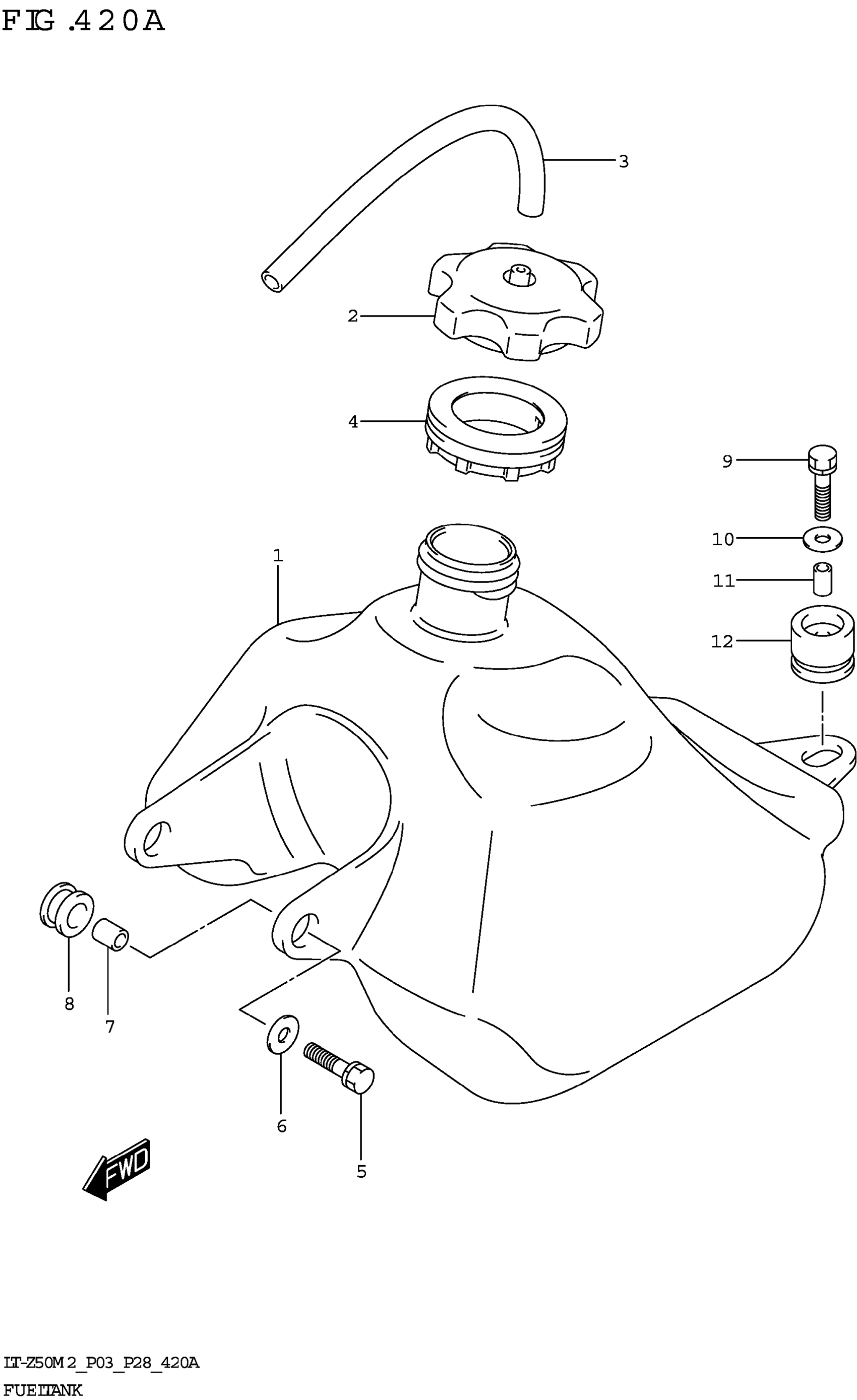

Suzuki LT-Z50M2 (2022) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY,FUEL

44100-43GB0

$1,576.68

2

CAP ASSY,FUEL TANK FILLER

44200-09AA0

$71.92

3

HOSE,FUEL TANK BREATHER

44411-08H00

$12.30

4

RUBBER,FUEL TANK INLET

44261-43GA0

$9.75

5

BOLT (6X25)

01550-0625A

$1.97

6

WASHER This part replaces 09160-06132.

09160-06084

$1.77

7

SPACER (6.5X10X11.5)

09180-06289

$2.58

8

CUSHION

09320-10075

$1.95

9

BOLT (6X25)

01550-0625A

$1.97

10

WASHER This part replaces 09160-06132.

09160-06084

$1.77

11

SPACER (6.5X9X12.5)

09180-06267

$4.45

12

CUSHION,FUEL TANK REAR

44541-43F00

$8.62
