2022 Suzuki LT-Z50M2 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2022 Suzuki LT-Z50M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

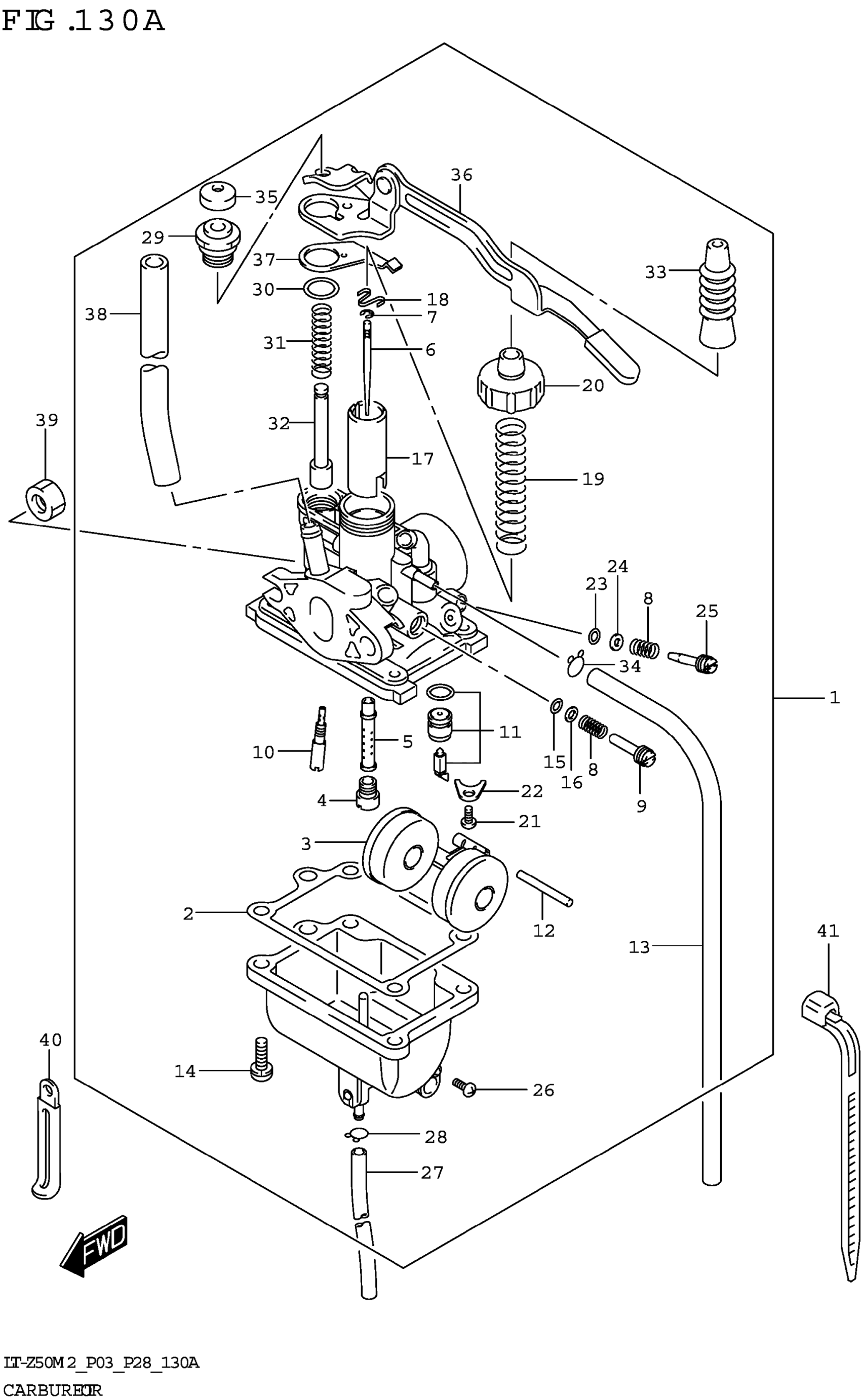

2022 Suzuki LT-Z50M2 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY

13200-43G01

1
Out of stock

2

.GASKET

13251-02410

1
Out of stock

3

.FLOAT

13250-02500

1
Out of stock

4

.JET,MAIN

13347-43G00

1
Out of stock

5

.JET,NEEDLE

13349-43G00

1
Out of stock

6

.NEEDLE,JET

13383-43G00

1
Out of stock

7

.CLIP,NEEDLE

13394-40D00

1
Out of stock

8

.SPRING

13268-35010

2
Out of stock

9

.SCREW,THROTTLE STOP

13483-16A01

1
Out of stock

10

.JET,PILOT,12.5 (#12.5)

09492-12003

1
Out of stock

11

.VALVE ASSY,NEEDLE

13370-36GA1

1
Out of stock

12

.PIN,FLOAT

13254-20010

1
Out of stock

13

.HOSE (3X7X600)

09355-30001-600

1
Out of stock

14

.SCREW

13601-04148

4
Out of stock

15

.WASHER

13291-35010

1
Out of stock

16

.O-RING

13295-33010

1
Out of stock

17

.VALVE,PISTON

13501-43G00

1
Out of stock

18

.SEAT,THROTTLE VALVE SPRING

13581-04010

1
Out of stock

19

.SPRING, THRPTTLE VALVE

13573-02330

1
Out of stock

20

.CAP

13261-28B00

1
Out of stock

21

.SCREW

02112-0306B

1
Out of stock

22

.PLATE,NEEDLE VALVE FITTING

13373-46710

1
Out of stock

23

O-RING

13295-29901

1
Out of stock

24

.WASHER (14X17)

13291-29900

1
Out of stock

25

.ADJUSTER (2,0)

13269-43G00

1
Out of stock

26

.SCREW,DRAIN

13247-09G10

1
Out of stock

27

.HOSE (5X10X600)

09355-50002-600

1
Out of stock

28

.CLIP

13529-98011

1
Out of stock

29

.CLIP

13418-43G00

1
Out of stock

30

.O RING

13278-02330

1
Out of stock

31

.SPRING

13417-43G00

1
Out of stock

32

.PLUNGER ASSY

13411-28700

1
Out of stock

33

.CAP

13681-36GA0

1
Out of stock

34

.CLIP

09401-08410

1
Out of stock

35

.CAP

13416-46711

1
Out of stock

36

.LEVER ASSY

13420-43G00

1
Out of stock

37

.PLATE,SPRING

13426-43G00

1
Out of stock

38

.HOSE

13683-24A41

1
Out of stock

39

NUT (6X3.6)

09140-06023

2
Out of stock

40

CLAMP (L:45)

09404-06429

1
Out of stock

41

CLAMP (L:125)

09407-14403

1
Out of stock
