2022 Suzuki LT-Z50M2 CVT Case Diagram

← All diagrams

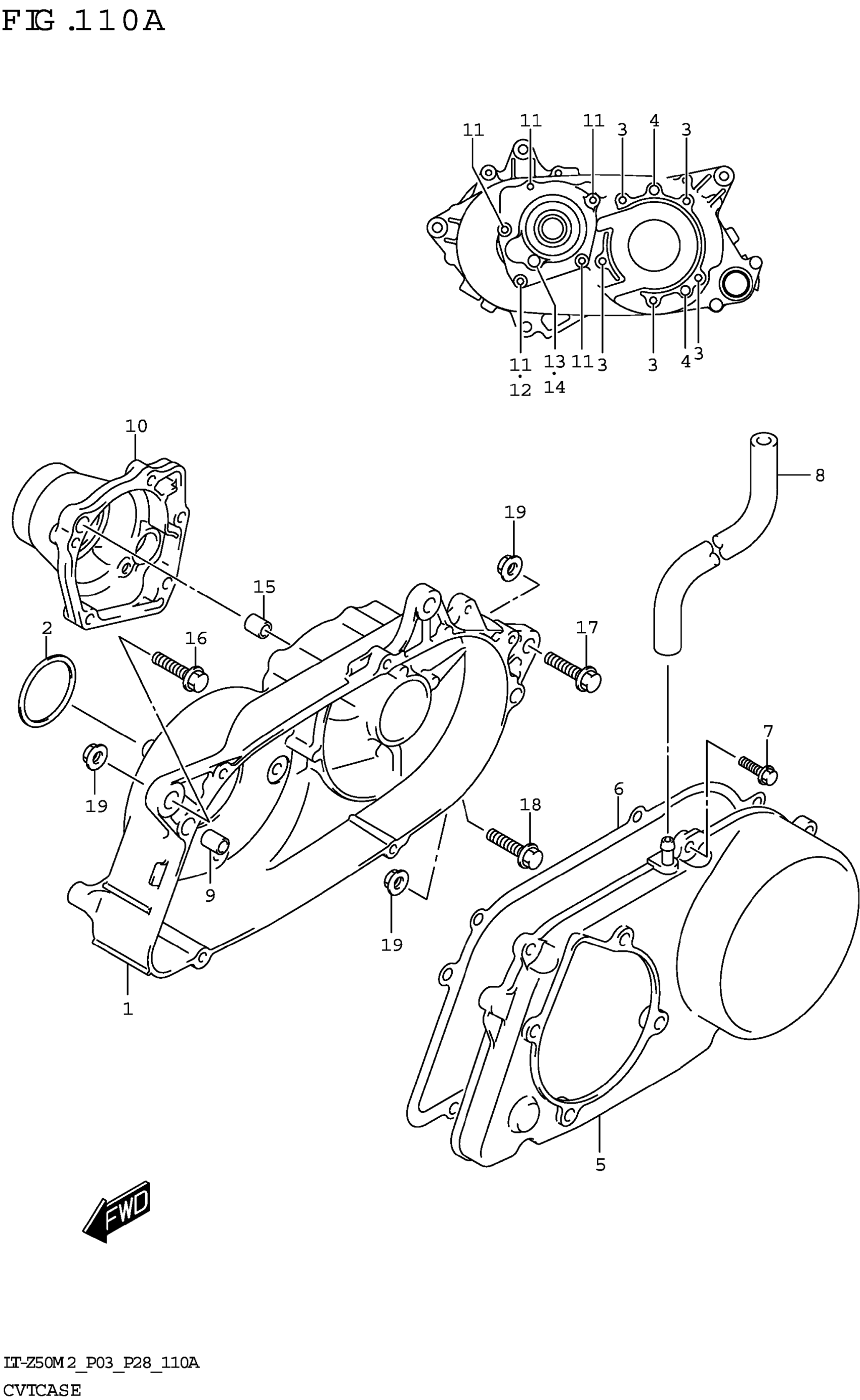

Find the part on the CVT Case diagram for your 2022 Suzuki LT-Z50M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki LT-Z50M2 CVT Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE,CVT

11340-22G50

1
Out of stock

2

GASKET,CVT CASE

11481-43G00

1
Out of stock

3

BOLT,6X20 (6X20)

09103-06170

5
Out of stock

4

PIN (8.5X18X2.3)

04211-09149

2
Out of stock

5

COVER,CVT CASE

11342-43G00

1
Out of stock

6

GASKET,CVT CASE COVER

11482-43G00

1
Out of stock

7

BOLT,6X20 (6X20)

09103-06170

5
Out of stock

8

HOSE

09351-05092-600

1
Out of stock

9

PIN (8.5X18X2.3)

04211-09149

2
Out of stock

10

COVER,GEAR BOX

11431-22G02

1
Out of stock

11

BOLT,6X28 (6X28)

09103-06182

5
Out of stock

12

GASKET, OIL DRAIN PLUG

09168-06L01

1
Out of stock

13

GASKET (8.2X14X1)

09168-08016

1
Out of stock

14

BOLT

01550-0812B

1
Out of stock

15

PIN (8.5X18X2.3)

04211-09149

2
Out of stock

16

BOLT

01550-0825B

2
Out of stock

17

BOLT

01550-0830B

1
Out of stock

18

BOLT (8X35)

01550-0835B

1
Out of stock

19

NUT

08319-3108B

5
Out of stock
