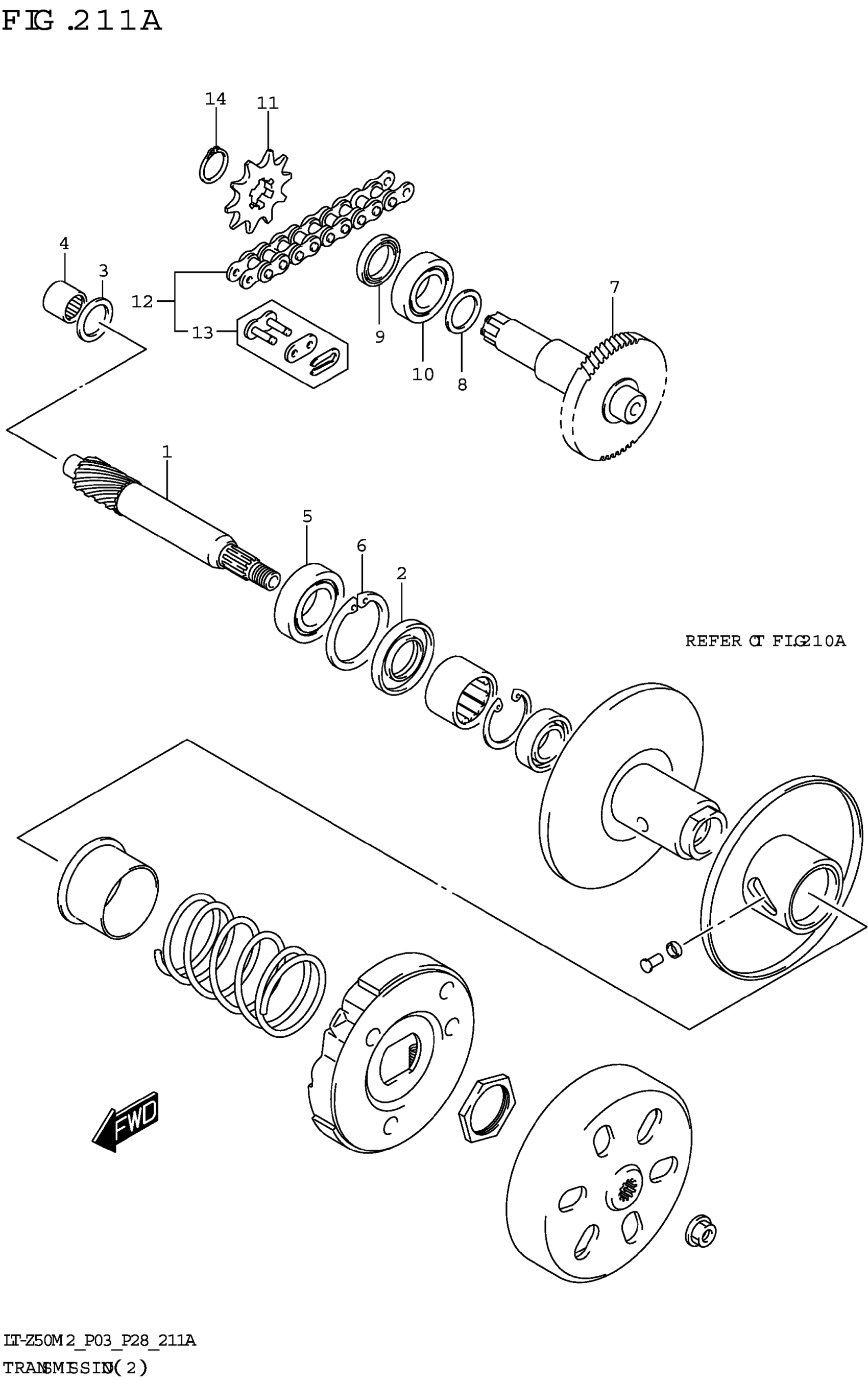

Suzuki LT-Z50M2 (2022) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT,COUNTER (NT:11)

24121-22G00

$121.57

2

SEAL,COUNTER SHAFT OIL | 17X40X5.0

24299-22G01

$3.77

3

SHIM,13X22X0.5 (13X22X0.5)

09181-13002

Unavailable

4

BEARING (12X16X10)

09263-12024

$11.44

5

BEARING

08110-62030

$18.06

6

CIRCLIP

08331-41406

$1.95

7

SHAFT,DRIVE (NT:47)

24131-22G10

$126.22

8

SHIM,17X24X1 (17X24X1.0)

09181-17139

$2.81

9

SEAL,OIL,17X27X6 (17X27X6)

09283-17026

$7.78

10

BEARING

08110-62030

$18.06

11

SPROCKET,ENGINE (NT:10)

27511-43G00

$16.76

12

CHAIN ASSY,DRIVE (DID415S,82L | )

27600-22G00-082

$42.56

13

.JOINT SET,CHAIN

27620-22G00

$10.25

14

CIRCLIP

08331-31169

$1.80
