2012 Suzuki LT-Z400L2 Wiring Harness Diagram

← All diagrams

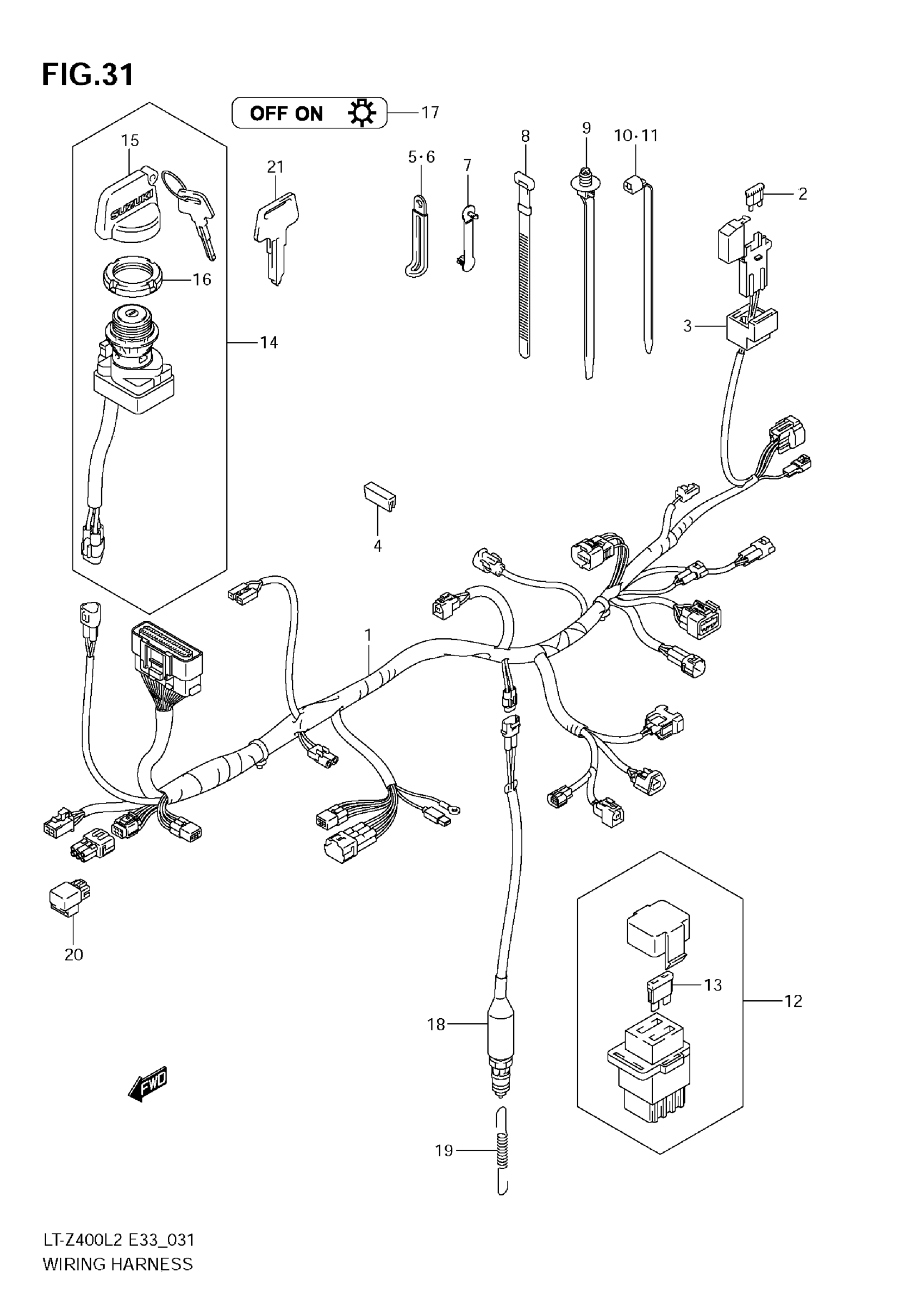

Find the part on the Wiring Harness diagram for your 2012 Suzuki LT-Z400L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-Z400L2 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING This part replaces 36610-33H00.

36610-33H01

1
Out of stock

2

FUSE (10A)

09481-10101

2
Out of stock

3

HOLDER

36742-39D00

1

$21.62

In stock

4

PROTECTOR, WIRING HARNESS

47613-23H00

2
Out of stock

5

CLAMP (L:45)

09404-06429

1
Out of stock

6

1

$2.88

In stock

7

CLAMP (L:33)

09407-03401

2
Out of stock

8

CLAMP (L:120)

09407-12402

2
Out of stock

9

CLAMP (L:154)

09407-17403

2
Out of stock

10

CLAMP (L:125)

09407-14403

4
Out of stock

11

CLAMP (L:165)

09407-18402

3
Out of stock

12

BOX ASSY, FUSE This part replaces 36740-19B10.

36740-24510

1
Out of stock

13

FUSE (10A)

09481-10101

2
Out of stock

14

SWITCH ASSY,IGN This part replaces 37110-45G00.

37110-45G01

1
Out of stock

15

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

16

.NUT,IGNITION SWITCH

37112-24500

1
Out of stock

17

PLATE,CONTROL I This part replaces 37139-45G00.

37139-45G01

1
Out of stock

18

SWITCH ASSY,STO This part replaces 37740-07G01.

37740-07G02

1
Out of stock

19

SPRING

43115-07G00

1
Out of stock

20

RELAY ASSY, FAN MOTOR

38740-24X50

1
Out of stock

21

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

21

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock
