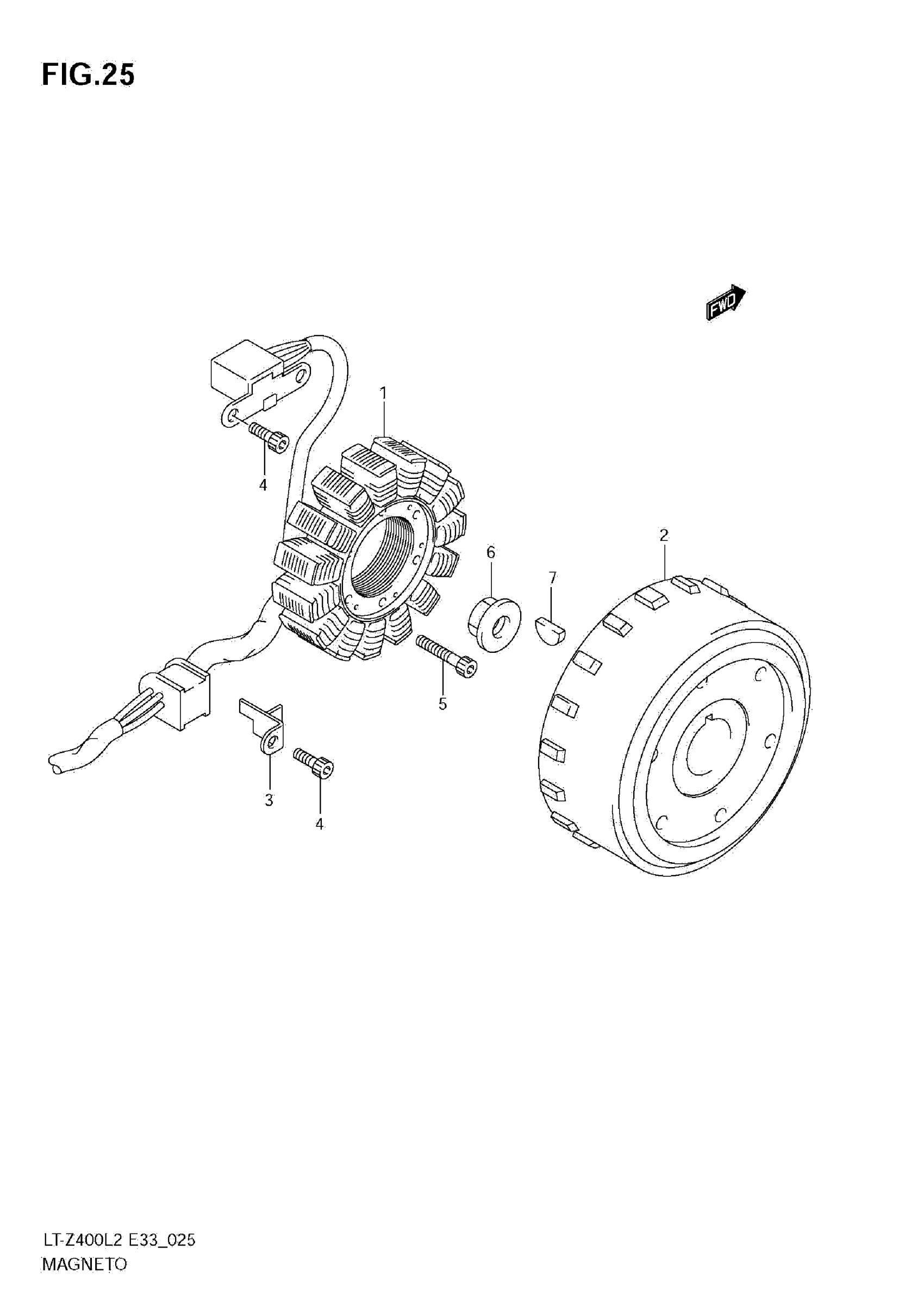

Suzuki LT-Z400L2 (2012) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-33H00.

32101-33H01

Unavailable

2

ROTOR ASSY

32102-33H00

$743.25

3

CLAMP, MAGNETO LEAD

32371-33H00

Unavailable

4

BOLT

07130-0512B

$2.61

5

BOLT

07130-0630B

$3.13

6

NUT, MAGNETO ROTOR

31792-07G00

$13.97

7

KEY

09420-04008

$3.18
