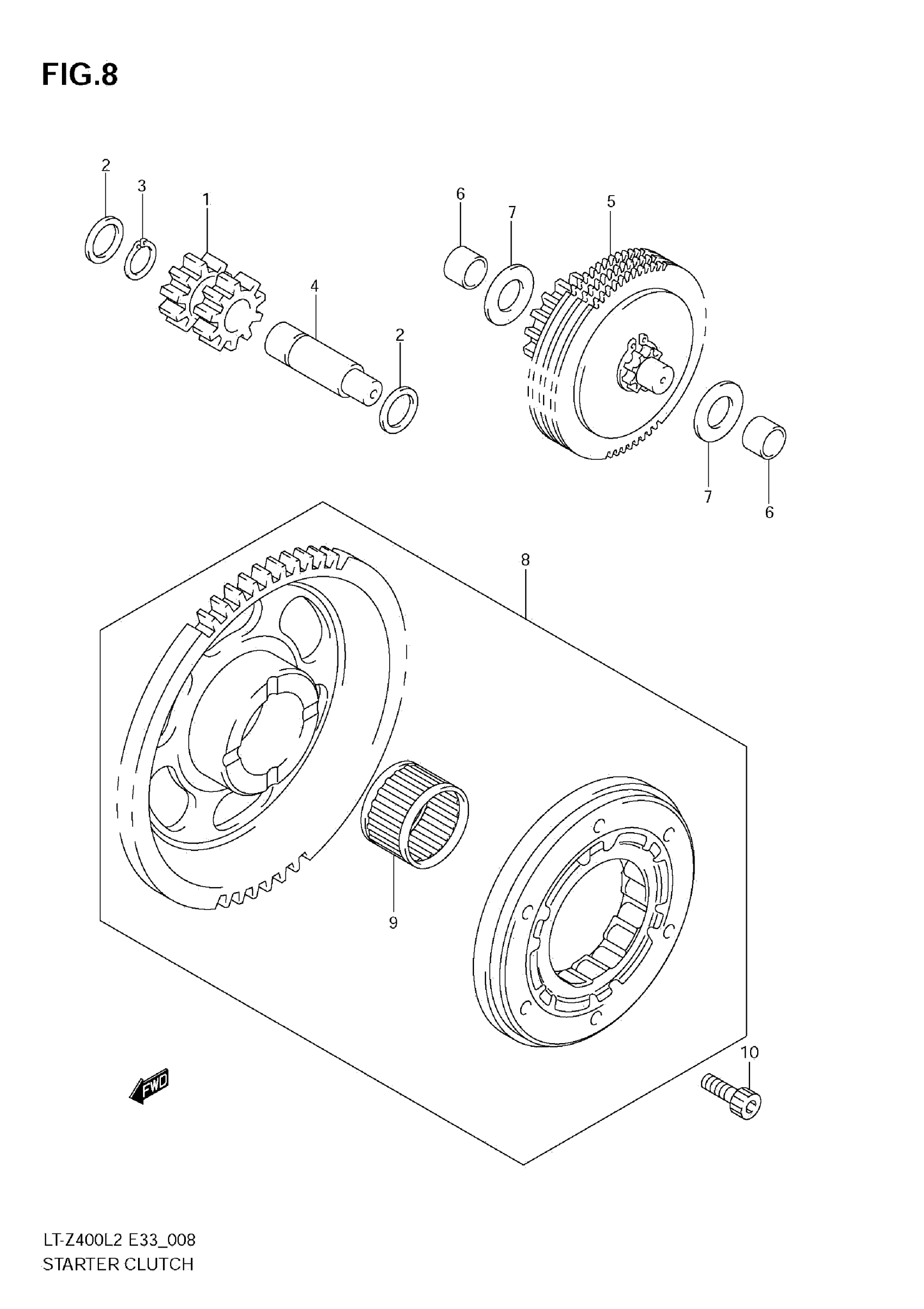

Suzuki LT-Z400L2 (2012) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE NO.1

12611-07G00

$67.57

2

SHIM (12X18X0.5)

09181-12130

$2.14

3

CIRCLIP

08331-3112A

$1.82

4

PIN

12615-07G00

$17.46

5

LIMITER ASSY, STARTER IDLE GEAR

12600-29F10

$336.23

6

BUSH

12618-31G00

$3.86

7

WASHER

08211-10221

$2.01

8

CLUTCH SET, STARTER

12600-29810

$222.69

9

BEARING (25X31X19)

09263-25049

$36.57

10

BOLT (6X20)

09106-06125

$3.70
