2012 Suzuki LT-Z400L2 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2012 Suzuki LT-Z400L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

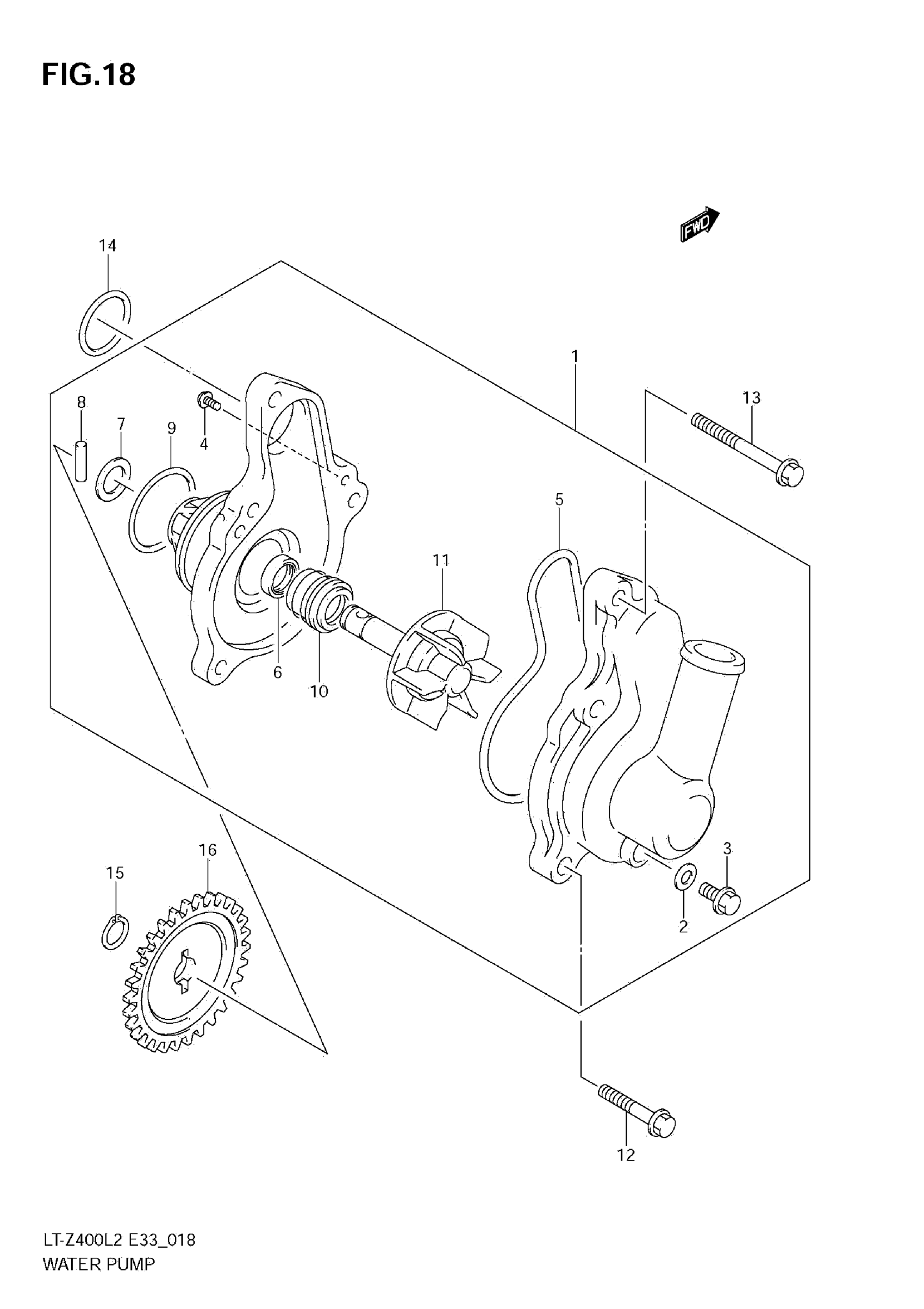

2012 Suzuki LT-Z400L2 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER This part replaces 17400-33H00.

17400-33H01

1
Out of stock

2

GASKET

17413-28C10

1
Out of stock

3

BOLT

17415-43D00

1
Out of stock

4

SCREW

17416-07G00

2
Out of stock

5

O RING

17418-07G00

1
Out of stock

6

.SEAL,OIL (10X21X5)

17461-48G00

1
Out of stock

7

WASHER

17432-07G00

1
Out of stock

8

PIN

17433-07G00

1
Out of stock

9

.O-RING

17435-33400

1
Out of stock

10

SEAL, WATER PUMP SHAFT

17470-02F01

1
Out of stock

11

IMPELLER/SHAFT

17491-07G00

1
Out of stock

12

BOLT (6X30)

09103-06204

3
Out of stock

13

BOLT (6X45)

09103-06209

1
Out of stock

14

.O-RING (D:2.4,ID:21.8)

09280-22001

1
Out of stock

15

CIRCLIP This part replaces 08331-3110A.

08331-31109

1
Out of stock

16

GEAR, WATER PUMP DRIVEN

17461-29F00

1
Out of stock
