2012 Suzuki LT-Z400L2 AIR Cleaner Diagram

← All diagrams

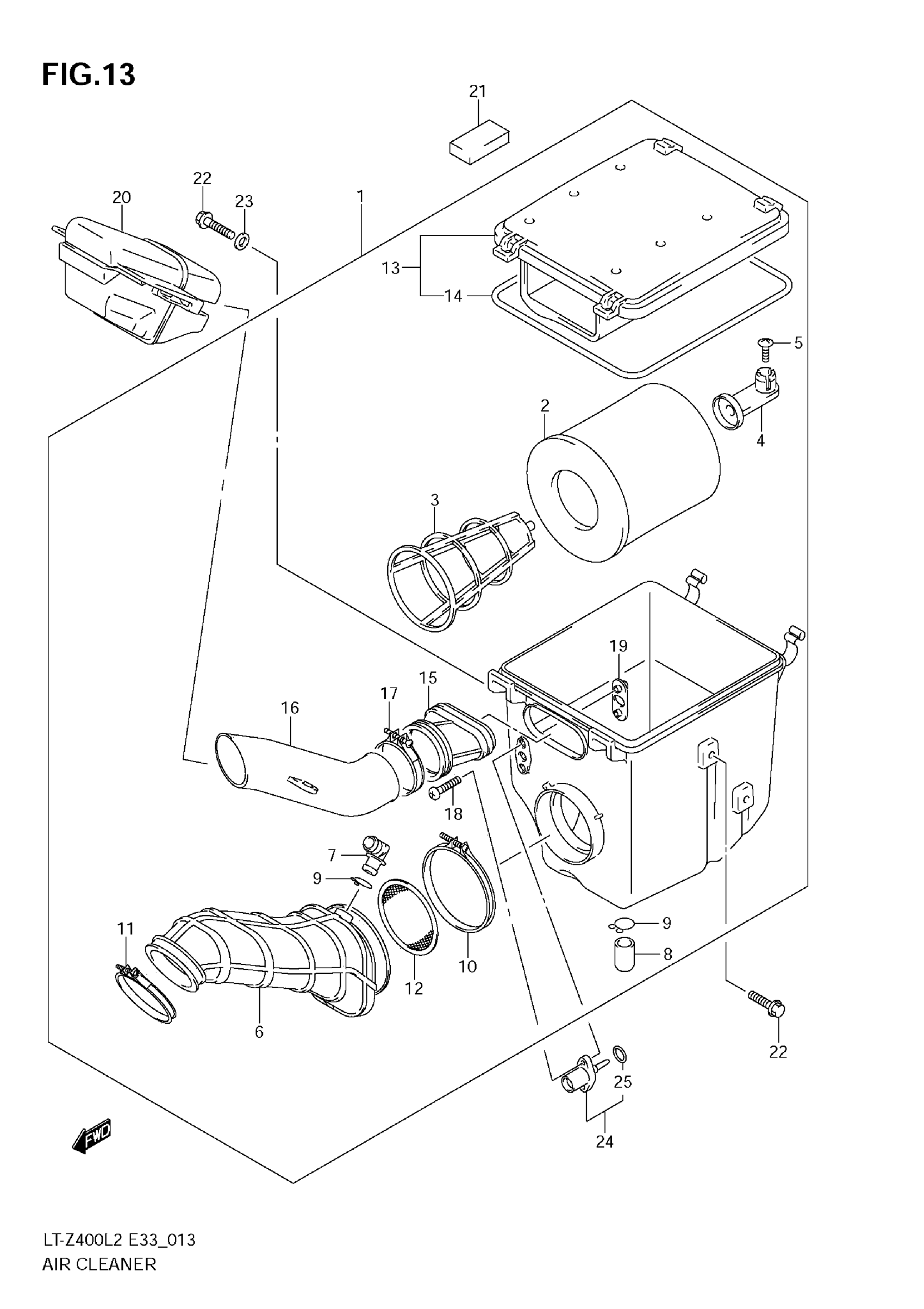

Find the part on the AIR Cleaner diagram for your 2012 Suzuki LT-Z400L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-Z400L2 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$284.90

In stock

2

FILTER

13780-07G00

1
Out of stock

3

HOLDER

13791-03G00

1
Out of stock

4

STOPPER, HOLDER

13792-03G00

1
Out of stock

5

SCREW

02142-0616A

1
Out of stock

6

TUBE, OUTLET

13881-33H00

—
Out of stock

7

JOINT

13858-14D20

1
Out of stock

8

.PLUG

13859-41B10

1

$7.56

In stock

9

CLIP

09401-14101

2
Out of stock

10

CLAMP

09402-82208

1

$5.98

In stock

11

CLAMP

13826-33H00

—
Out of stock

12

TRAP, FLAME

13810-07G01

1

$18.16

In stock

13

CAP, AIR CLEANER

13740-07G02

1

$45.69

In stock

14

GASKET

13746-07G00

1

$4.70

In stock

15

JOINT, INLET

13891-07G00

1

$17.32

In stock

16

DUCT, INLET

13896-07G00

1

$36.35

In stock

17

CLAMP

09402-56901

1

$5.20

In stock

18

.SCREW

02112-0516A

2
Out of stock

19

HOLDER

13889-33H00

1
Out of stock

20

COVER, INLET

13899-33H00

1

$43.10

In stock

21

CUSHION

44545-16G00

2

$8.13

In stock

22

BOLT

01547-0616A

2
Out of stock

23

WASHER

08322-0106A

1
Out of stock

24

1

$51.91

In stock

25

O RING

13655-14G10

1

$11.18

In stock
