2012 Suzuki LT-Z400L2 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2012 Suzuki LT-Z400L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

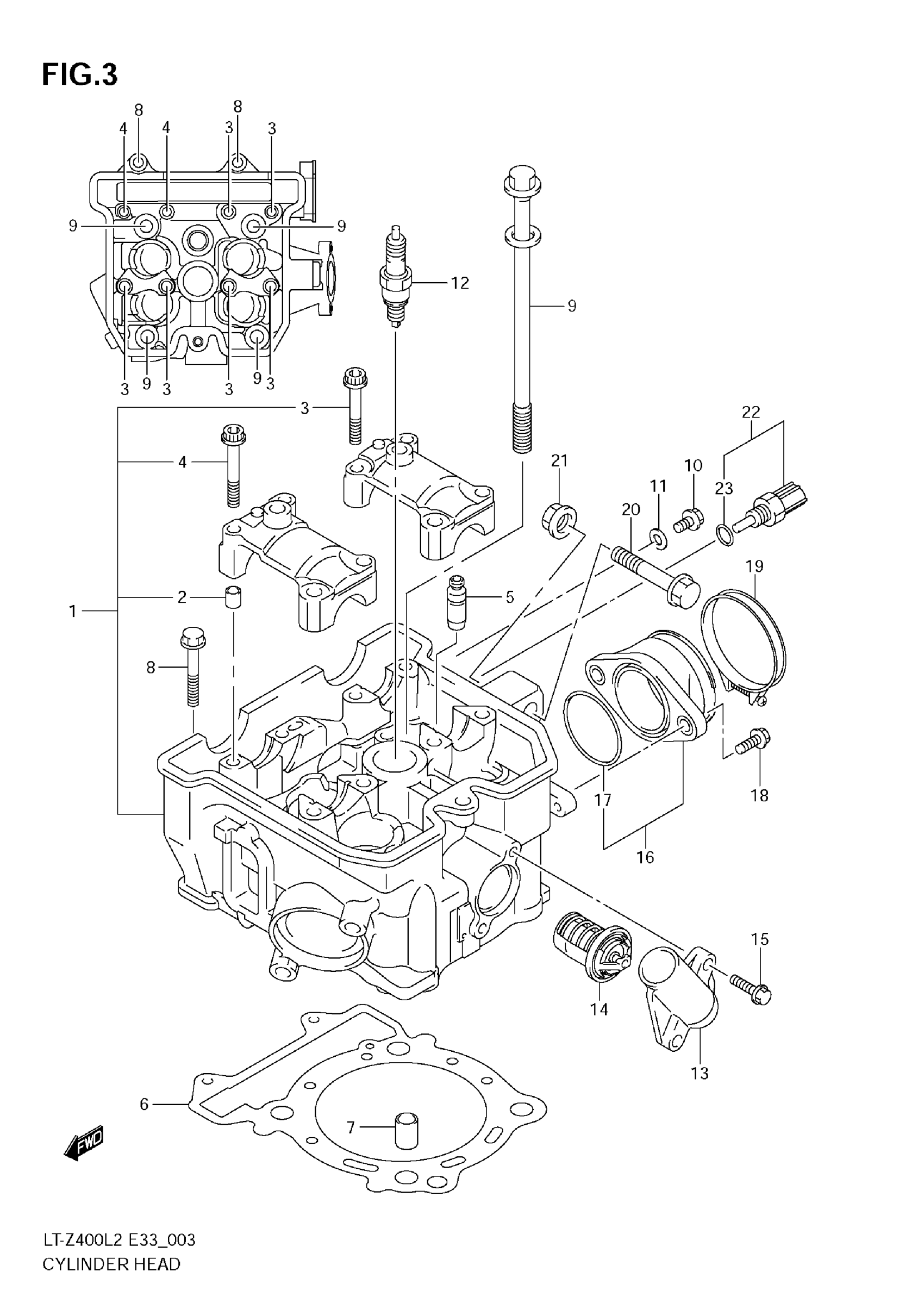

2012 Suzuki LT-Z400L2 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-33H00

1
Out of stock

2

PIN

09206-08001

4
Out of stock

3

BOLT

07120-0640B

6
Out of stock

4

BOLT

07120-0645B

2
Out of stock

5

GUIDE, VALVE (OS.0.3) | OPT

11115-20E70

4
Out of stock

6

GASKET, CYLINDER HEAD

11141-29F01

1
Out of stock

7

PIN

04211-13189

2
Out of stock

8

BOLT (6X39)

09103-06026

2
Out of stock

9

BOLT

11117-33H00

4
Out of stock

10

PLUG

01550-0610A

1
Out of stock

11

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

12

SPARK PLUG (NGK,CR7E)

09482-00516

1
Out of stock

12

SPARK PLUG (DENSO,U22ESR-N)

09482-00515

1
Out of stock

12

SPARK PLUG (NGK,CR6E) | OPT

09482-00528

1
Out of stock

12

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

1
Out of stock

12

PLUG SPARK (CR9E) | OPT

09482-00458

1
Out of stock

12

SPARK PLUG (DENSO,U20ESR-N) | OPT

09482-00529

1
Out of stock

12

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

1
Out of stock

12

SPARK PLUG (DENSO,U27ESR-N) | OPT

09482-00459

1
Out of stock

13

COVER, THERMOSTAT

17661-45G00

1
Out of stock

14

THERMOSTAT COMP This part replaces 17670-45G00.

17670-45G01

1
Out of stock

15

BOLT

01547-0616A

2
Out of stock

16

PIPE ASSY,INTAK This part replaces 13101-33H00.

13101-33H01

1
Out of stock

17

O RING

13118-11H00

1
Out of stock

18

BOLT (6X18)

09106-06105

2
Out of stock

19

CLAMP

09402-58208

1
Out of stock

20

BOLT (10X50)

09103-10235

1
Out of stock

21

NUT

09159-10115

1
Out of stock

22

SENSOR, WATER TEMP

13650-14G00

1
Out of stock

23

.O RING

13655-14G00

1
Out of stock
