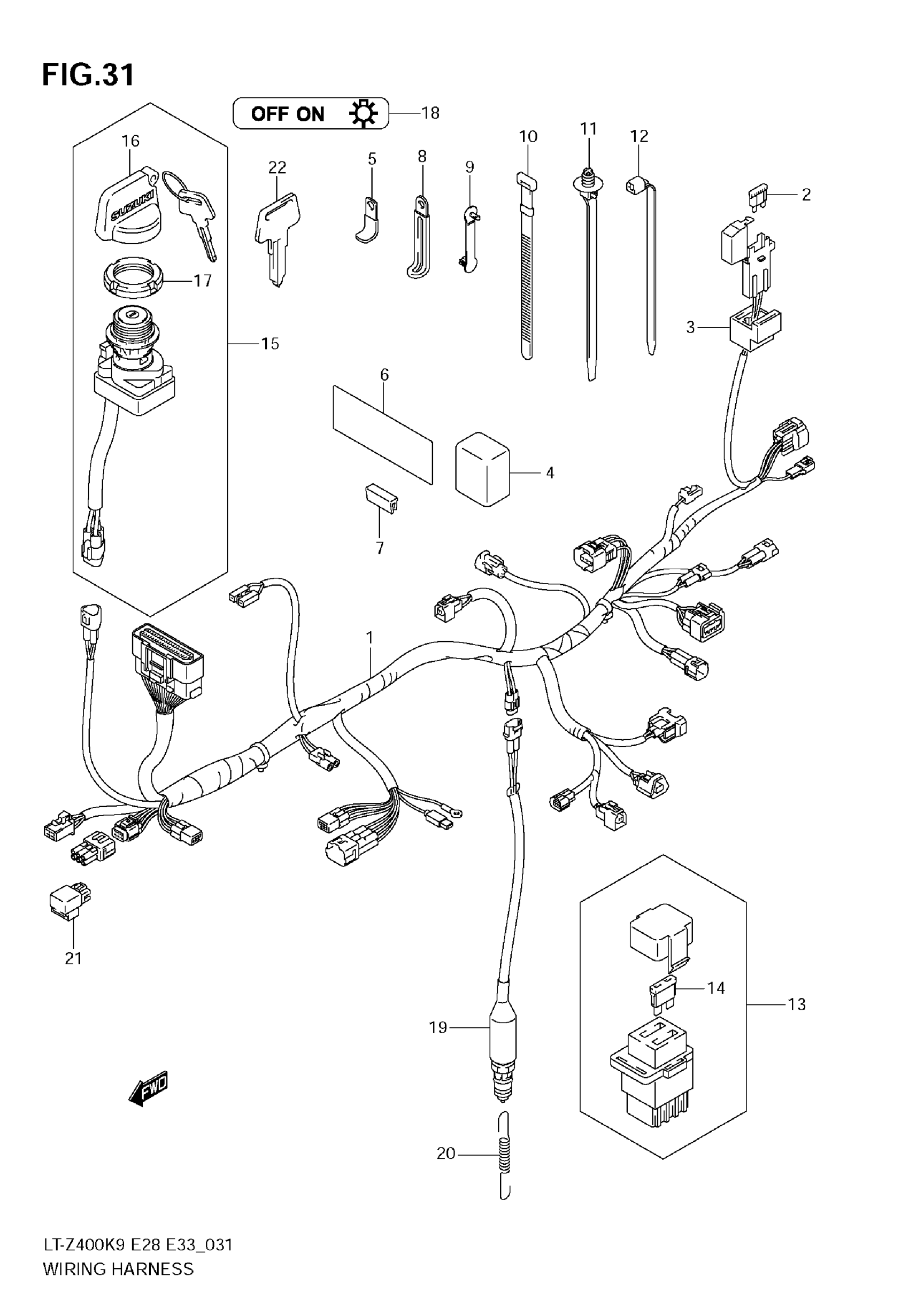

Suzuki LT-Z400 (2009) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING | Includes Item(s) 2 - 3 This part replaces 36610-33H00.

36610-33H01

$525.60

2

FUSE (10A)

09481-10101

$0.68

3

HOLDER

36742-39D00

$21.62

4

COVER, CONNECTOR

36618-45G10

$11.18

5

CLAMP, WIRING HARNESS

36651-24B00

Unavailable

6

PROTECTOR (30X80X1.0) | CUT AS REQUIRED (30X30)

33652-29F00

$2.80

7

PROTECTOR, WIRING HARNESS

47613-23H00

Unavailable

8

CLAMP (L:45)

09404-06429

$1.82

8

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.88

9

CLAMP

09407-03401

$2.81

10

CLAMP (L:120)

09407-12402

$2.80

11

CLAMP (L:154)

09407-17403

$4.63

12

CLAMP (L:125)

09407-14403

$2.24

12

CLAMP (L:165)

09407-18402

$2.21

13

BOX ASSY, FUSE | Includes Item(s) 14 This part replaces 36740-19B10.

36740-24510

Unavailable

14

FUSE (10A)

09481-10101

$0.68

15

SWITCH ASSY,IGN | Includes Item(s) 16 - 17 This part replaces 37110-45G00.

37110-45G01

$73.91

16

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

17

.NUT,IGNITION SWITCH

37112-24500

$12.60

18

PLATE,CONTROL I This part replaces 37139-45G00.

37139-45G01

$3.50

19

SWITCH ASSY,STO This part replaces 37740-07G01.

37740-07G02

$78.53

20

SPRING

43115-07G00

$5.44

21

RELAY ASSY, FAN MOTOR

38740-24X50

$41.38

22

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

22

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38

22

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$7.38

22

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$7.38
