2009 Suzuki LT-Z400 Magneto Diagram

← All diagrams

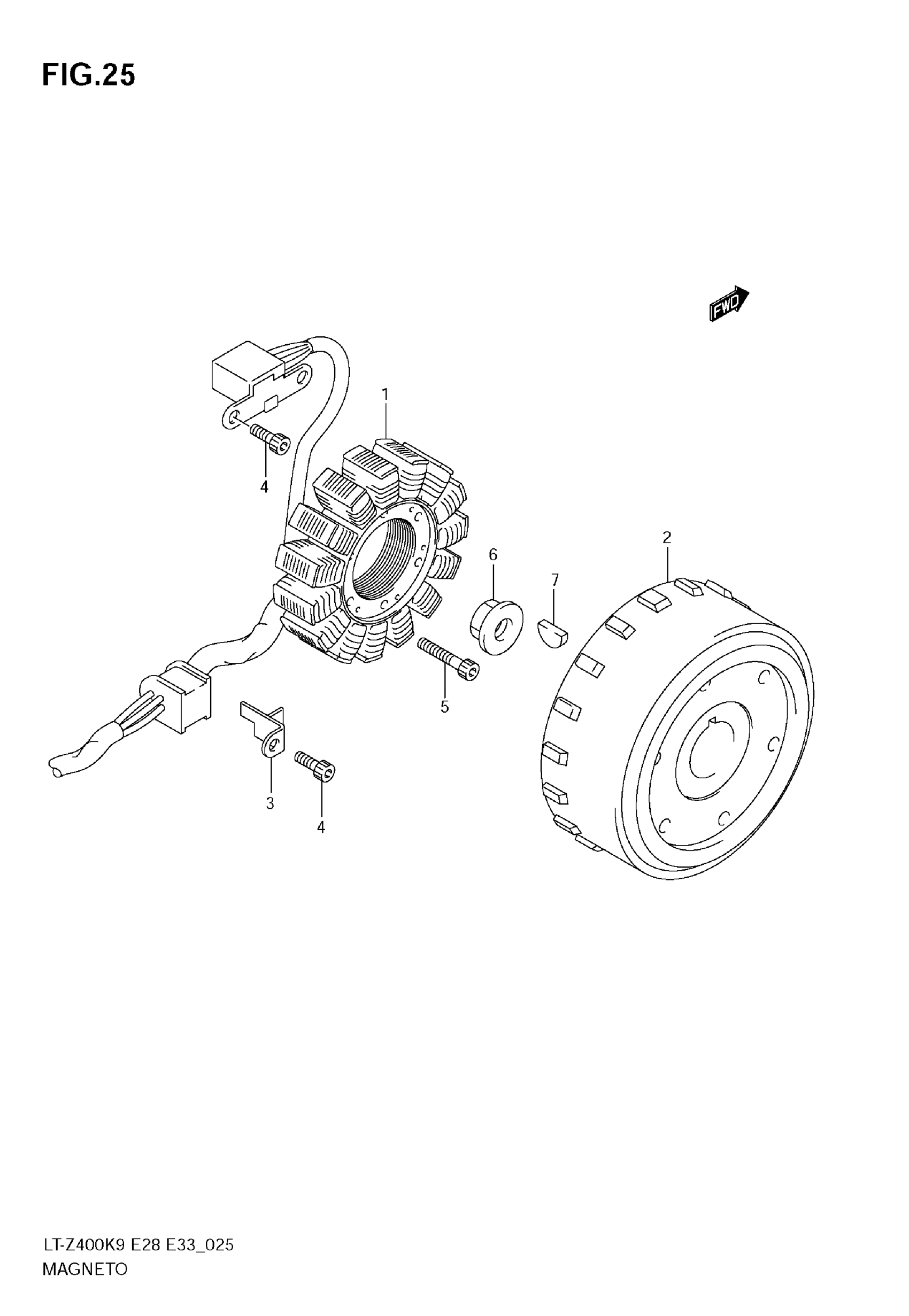

Find the part on the Magneto diagram for your 2009 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-Z400 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY This part replaces 32101-33H00.

32101-33H01

1
Out of stock

2

ROTOR ASSY

32102-33H00

1
Out of stock

3

CLAMP, MAGNETO LEAD

32371-33H00

1
Out of stock

4

BOLT, PULSER/CLAMP

07130-05127

3
Out of stock

5

BOLT, STATOR

07130-0530B

—
Out of stock

6

NUT, MAGNETO ROTOR

31792-07G00

1
Out of stock

7

KEY

09420-04008

1
Out of stock
