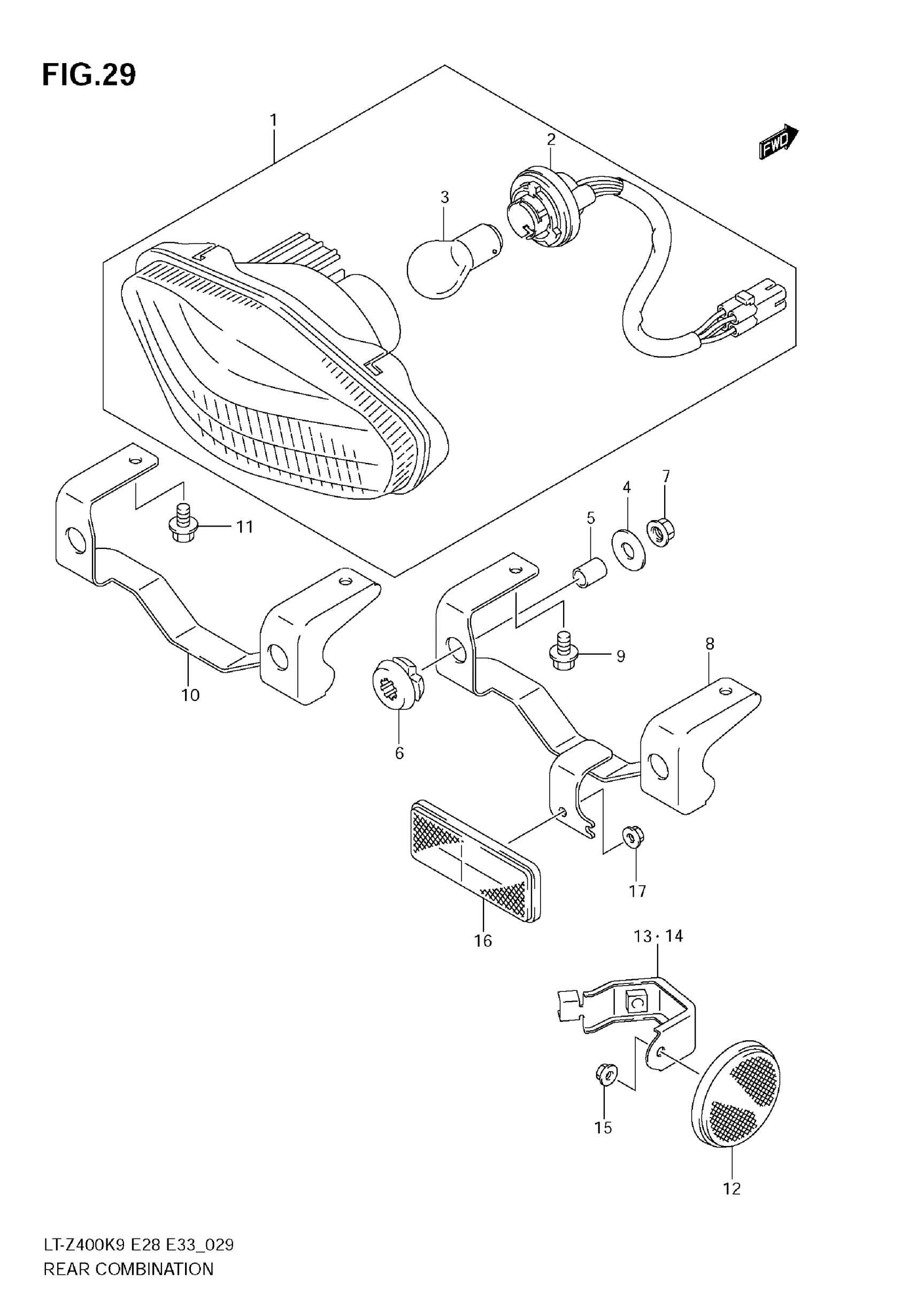

Suzuki LT-Z400 (2009) REAR COMBINATION Diagram

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 3

35710-31G00

$93.52

SOCKET & CORD ASSY

35718-03G30

$24.80

BULB (12V21/5W)

09471-12128

$6.08

WASHER, RR COMB | 6.5X20X1.2

09160-06077

$1.89

SPACER, RR COMB | 6.5X9X10.5

09180-06264

$2.85

CUSHION, RR COMB

09320-09018

$2.28

NUT, RR COMB

08316-1006B

$2.50

BRACKET, RR COMB LAMP | E28

35720-33H10

Unavailable

BOLT, RR COMB BKT | E28

01550-0612B

$2.38

BRACKET, RR COMB LAMP | E33

35726-33H00

$46.72

BOLT, RR COMB BKT | E33

01550-0612B

$2.38

REFLECTOR ASSY, RR SIDE | E28

35970-14A20

$14.23

BRACKET, RR SIDE RR, R | E28

35975-33H00

Unavailable

BRACKET, RR SIDE RR, L | E28

35976-33H00

Unavailable

NUT, RR SIDE RR | E28

08316-1005B

$2.50

REFLECTOR ASSY, REAR | E28

35970-07F01

$19.11

NUT, REAR RR | E28

08316-1005B

$2.50
