2009 Suzuki LT-Z400 Throttle Body Diagram

← All diagrams

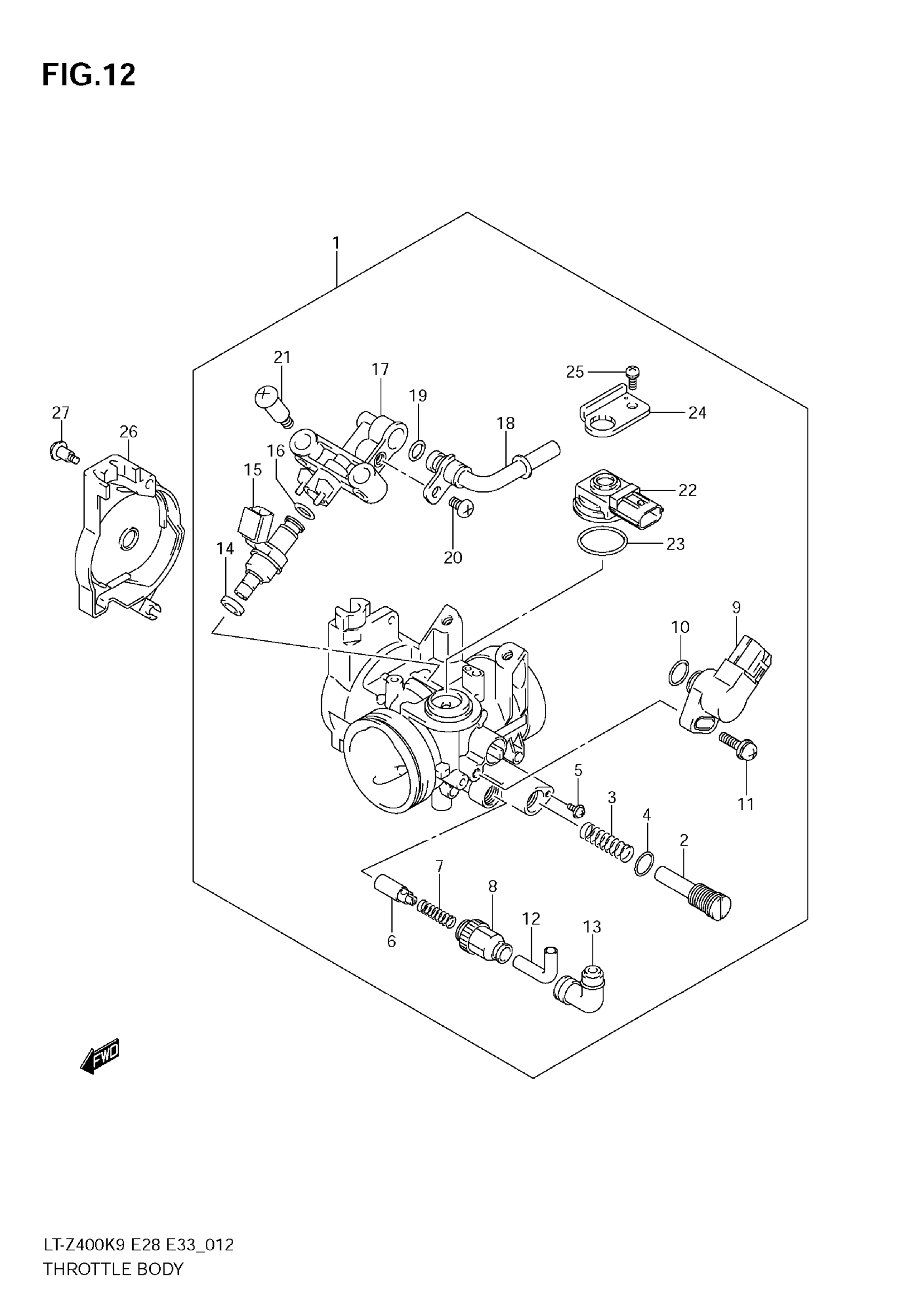

Find the part on the Throttle Body diagram for your 2009 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-Z400 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROT | Includes Item(s) 2 - 25 This part replaces 13400-33H00.

13400-33H02

1
Out of stock

2

SCREW

13269-14G00

1
Out of stock

3

SPRING

13271-14G00

1
Out of stock

4

O RING

13295-14G00

1
Out of stock

5

SCREW

13601-14G00

1
Out of stock

6

STARTER VALVE

13411-28H00

1
Out of stock

7

SPRING

13271-45G00

1
Out of stock

8

HOLDER, CABLE

13581-45G00

1
Out of stock

9

SENSOR, THROTTLE This part replaces 13580-33H00.

13580-33H01

1
Out of stock

10

O RING

13575-40F00

1
Out of stock

11

SCREW

13605-40F00

1
Out of stock

12

GUIDE, CABLE

13579-45G00

1
Out of stock

13

CAP

13681-45G00

1
Out of stock

14

.RING,SEAL

15722-21H00

1
Out of stock

15

INJECTOR ASSY

15710-33H00

1
Out of stock

16

.O-RING

15721-21H00

1
Out of stock

17

PIPE, FUEL

13471-33H00

—
Out of stock

18

JOINT

13685-33H00

—
Out of stock

19

.O-RING

15721-24F00

1
Out of stock

20

SCREW

13452-45G00

1
Out of stock

21

SCREW

13601-45G00

2
Out of stock

22

SENSOR, MAP

15620-05H00

1
Out of stock

23

.O RING This part replaces 15621-05H00.

15621-05H01

1
Out of stock

24

PLATE

15622-33H00

1
Out of stock

25

SCREW

02112-14087

1
Out of stock

26

COVER

13484-45G00

1
Out of stock

27

SCREW

13601-11F00

1
Out of stock
